This product is out of stock
We can email you when it's back in stock, confirm expected lead times, or recommend in-stock alternatives that meet the same requirements.
StarTech.com USB C KVM Switch, 2 Port DisplayPort KVM w/ 4K 60Hz UHD HDR Video, 3.5mm Audio, USB Type C KVM Switch, 4x USB HID and 2x USB A 3.2 Gen 1 5Gbps Hub, Thunderbolt 3/4 Compatible - Hot Key Switching (SV231DPUCA) - KVM / audio / USB switch - 2 x KVM / audio / USB - desktop - TAA Compliant
- Black
- Number of computers controlled: 2
- Keyboard port type: USB Mouse port type: USB Video port type: DisplayPort
- 4K Ultra HD 5120 x 1440 pixels
- Hot keys
- AC
Similar Products
Overview

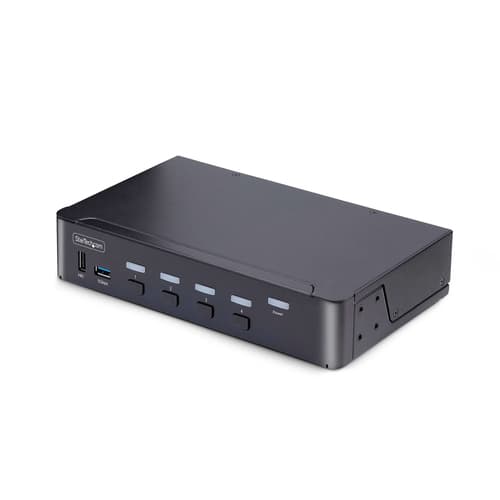

StarTech.com SV231DPUCA KVM switch Black
Specifications
Performance
- Scan interval
- 3,8,15,30 s
- HDCP
- Yes
- HD type
- 4K Ultra HD
- Maximum resolution
- 5120 x 1440 pixels
- Video bandwidth
- 60 Hz
- Data transfer rate (max)
- 5 Gbit/s
- Chipset
- Parade - PS8461, Etron - EJ899I
- Audio channels
- 2.0
- Number of displays supported
- 1
Ports & interfaces
- Number of computers controlled
- 2
- Keyboard port type
- USB
- Mouse port type
- USB
- Video port type
- DisplayPort
- Console ports
- 3.5mm headphone, 3.5mm mic, DisplayPort
- DisplayPort version
- 1.2
- Console USB ports quantity
- 6
- Console DisplayPorts ports quantity
- 1
- USB hub
- Yes
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity
- 2
- Headphone outputs
- 1
- Number of microphone inputs
- 1
Design
- Rack mounting
- No
- Product colour
- Black
- LED indicators
- Yes
- Push button
- Yes
- Hot keys
- Yes
- Mean time between failures (MTBF)
- 158000 h
Display
- Built-in display
- No
Power
- Power source
- AC
- Input voltage
- 100 - 240 V
- Input current
- 1.2 A
- Output voltage
- 12 V
- Output current
- 3 A
- Power plug type
- Type M
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -10 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
Weight & dimensions
- Width
- 140 mm
- Depth
- 160 mm
- Height
- 40 mm
- Weight
- 600 g
Packaging data
- Package width
- 184 mm
- Package depth
- 238 mm
- Package height
- 89 mm
- Package weight
- 1 kg
Packaging content
- Quick installation guide
- Yes
- AC adapter included
- Yes
- Rubber feet
- Yes
Logistics data
- Master (outer) case width
- 300 mm
- Master (outer) case length
- 397 mm
- Master (outer) case height
- 257 mm
- Products per master (outer) case
- 6 pc(s)
Other features
- IP control
- No
