StarTech.com USB4 Docking Station, USB-C 40Gbps, Dual Video HDMI, Up to 2x 4K 60Hz 4:4:4 (RGB) or 2x 4K 120Hz 4:2:2, Multi-Monitor Dock, 6x USB, 2.5GbE, 100W PD - Docking station - USB4 / Thunderbolt 4 - 2 x HDMI - 1GbE, 2.5GbE - 180 Watt

Manuf P/N: 155UE-USB4-DOCK
APAXON#: 10426491
EAN: 0065030902878
StarTech.com USB4 Docking Station, USB-C 40Gbps, Dual Video HDMI, Up to 2x 4K 60Hz 4:4:4 (RGB) or 2x 4K 120Hz 4:2:2, Multi-Monitor Dock, 6x USB, 2.5GbE, 100W PD - Docking station - USB4 / Thunderbolt 4 - 2 x HDMI - 1GbE, 2.5GbE - 180 Watt
  • Up to 40 Gbps data transfer for high-speed connectivity
  • Dual video HDMI supports up to 2x 4K displays
  • 6x USB ports for extensive peripheral compatibility
  • 2.5 Gigabit Ethernet for enhanced network performance
  • 100 W power delivery for efficient device charging
Stock10
Price £149.00
Quantity
|

Product Summary

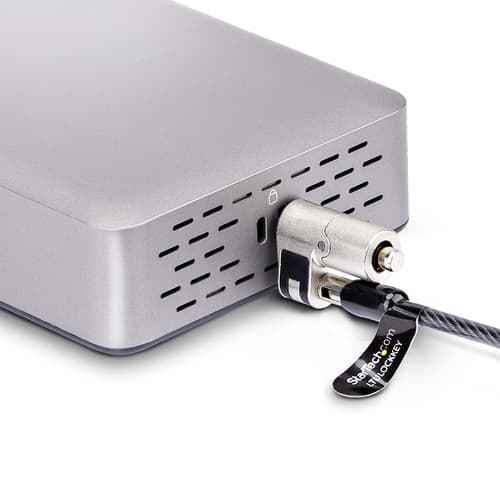

The StarTech.com USB4 Docking Station is designed to meet the needs of professionals and power users. With its USB-C 40 Gbps interface, it offers high data transfer speeds, making file transfers and backups efficient. The docking station supports dual video HDMI, capable of driving up to two 4K displays at 60 Hz with 4:4:4 chroma subsampling or at 120 Hz with 4:2:2, providing clear visuals for gaming, video editing, or multitasking across multiple screens. Equipped with six USB ports, including both USB-A 3.2 Gen 1 and Gen 2, as well as USB-C 3.2 Gen 1 and Gen 2 with Power Delivery, it ensures compatibility with a wide range of devices and peripherals. The 2.5 Gigabit Ethernet port offers a significant upgrade to network speeds, enhancing online experiences whether for work or leisure. Additionally, the 100 W power delivery capability means you can charge laptops and other devices directly through the dock, reducing clutter and the need for multiple power adapters. With features like wake on LAN and a Kensington security slot for added security, the StarTech.com USB4 Docking Station expands your workstation's capabilities.

Main Specifications

Product Description
StarTech.com USB4 Docking Station, USB-C 40Gbps, Dual Video HDMI, Up to 2x 4K 60Hz 4:4:4 (RGB) or 2x 4K 120Hz 4:2:2, Multi-Monitor Dock, 6x USB, 2.5GbE, 100W PD - docking station - USB4 / Thunderbolt 4 - 2 x HDMI - 1GbE, 2.5GbE
Product Type
Docking station
Docking Interface
USB4 / Thunderbolt 4
Video Interfaces
2 x HDMI
Dimensions (WxDxH)
21 cm x 9.5 cm x 3.4 cm
Weight
138.6 g
Colour
Space grey
Networking
Gigabit Ethernet, 2.5 Gigabit Ethernet
Power
Power adapter 165 Watt AC 100-240 V 180 Watt Power Provided (DC 20 V)
Manufacturer Warranty
3-year warranty
High-speed connectivity

With up to 40 Gbps data transfer, the USB4 Docking Station ensures rapid file transfers and efficient workflow, making it ideal for professionals and power users alike.

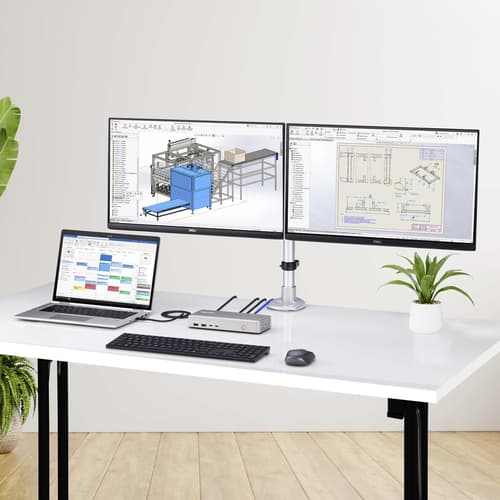

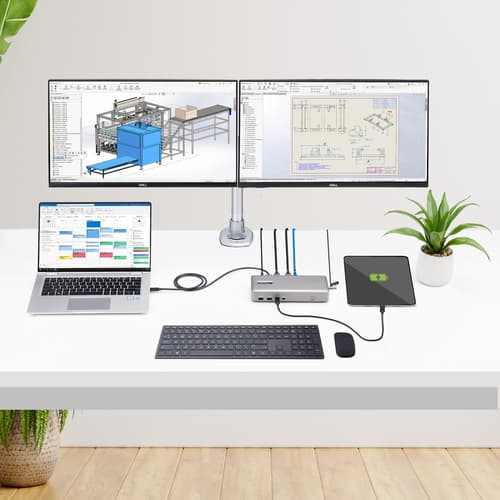

Versatile video options

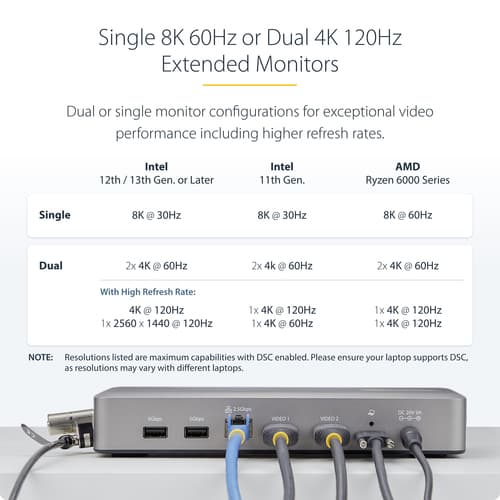

Supports dual video HDMI, allowing for up to 2x 4K 60 Hz 4:4:4 (RGB) or 2x 4K 120 Hz 4:2:2 displays, providing stunning visual clarity for gaming, video editing, or multitasking on multiple monitors.

Comprehensive USB support

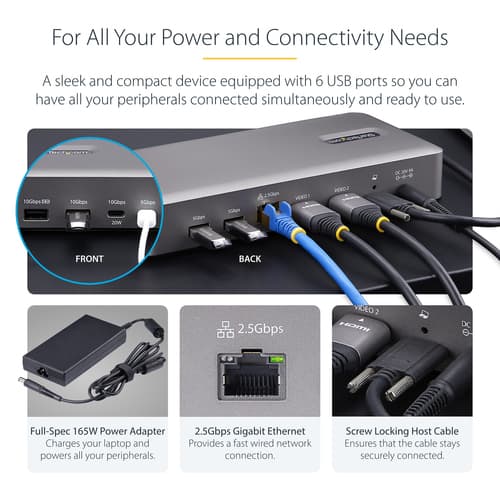

Equipped with six USB ports, including USB-A 3. 2 Gen 1 and Gen 2, as well as USB-C 3. 2 Gen 1 and Gen 2 with Power Delivery, this docking station accommodates a wide range of peripherals.

Enhanced network performance

Features 2. 5 Gigabit Ethernet for high-speed network connections, supporting faster data transfer rates and improved online experiences.

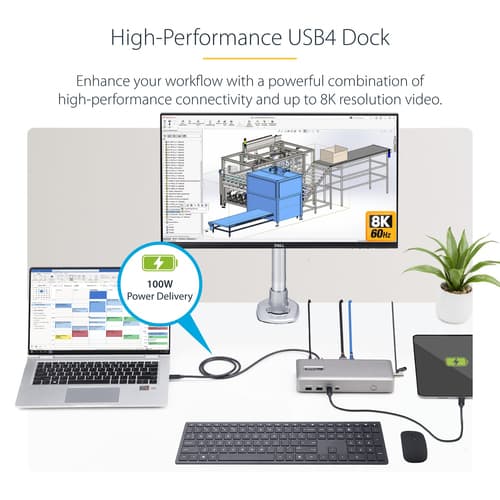

Powerful charging capability

Offers 100 W power delivery to charge laptops and other devices efficiently, ensuring your workspace remains productive without the need for multiple chargers.

Extended Specification

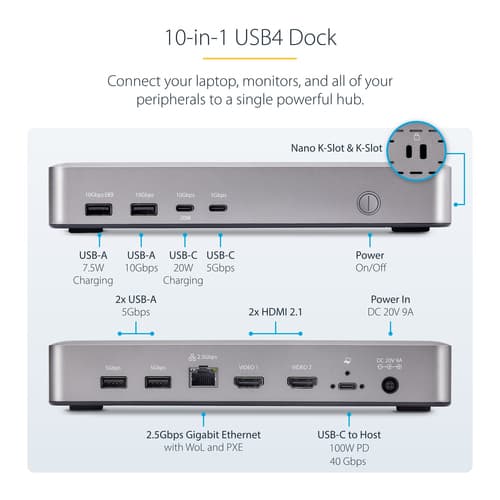

Ports & interfaces
Connectivity technology
Wired
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
Microphone in
No
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
USB Power Delivery up to
100 W W
DC-in jack
Yes
Host interface
USB4
HDMI ports quantity
2
Headphone outputs
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB Power Delivery (USB PD)
Yes
Network
Ethernet LAN
Yes
Ethernet LAN data rates
10,100,1000,2500 Mbit/s Mbit/s
Full duplex
Yes
Ethernet LAN (RJ-45) ports
1
Wake-on-LAN ready
Yes
Performance
Product colour
Silver
Data transfer rate
40 Gbit/s Gbit/s
Number of displays supported
2

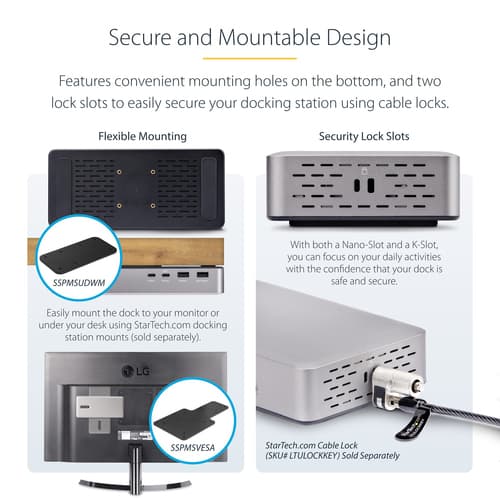

Cable lock slot
Yes
Cable lock slot type
Kensington, Nano
LED indicators
Yes
Housing material
Plastic
Card reader integrated
No
HD type
4K Ultra HD
Maximum digital resolution
3840 x 2160 pixels pixels
Maximum refresh rate
120 Hz Hz
On/off switch
Yes
UASP support
Yes
Power
Power source type
DC
Input current
2.5 A A
Output current
9 A A
Power consumption (typical)
165 W W
Power plug type
Type M
Compatible power plug types
EU, UK
AC input voltage
100 - 240 V V
Output voltage
20 V V

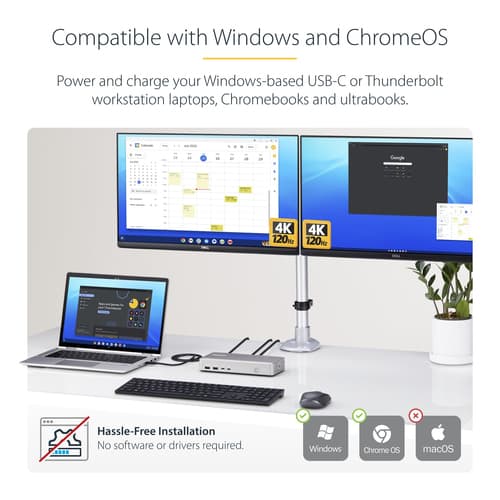

Software
Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Other operating systems supported
ChromeOS
Operational conditions
Operating temperature (T-T)
0 - 40 °C °C
Storage temperature (T-T)
-20 - 70 °C °C
Operating relative humidity (H-H)
0 - 95% %

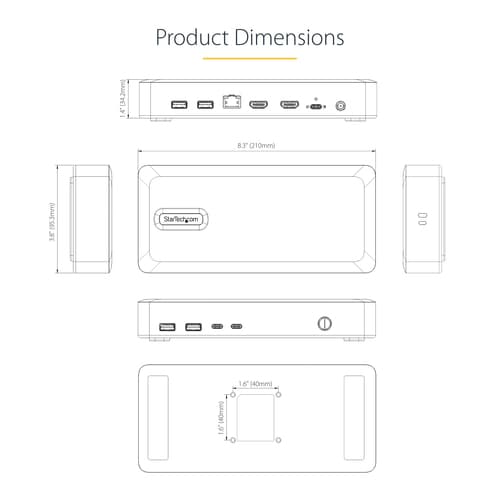

Weight & dimensions
Height
34 mm mm
Width
210 mm mm
Depth
95 mm mm
Weight
138.6 g g
Packaging data
Package height
89 mm mm
Package weight
1.3 kg kg
Package width
145 mm mm
Package depth
230 mm mm

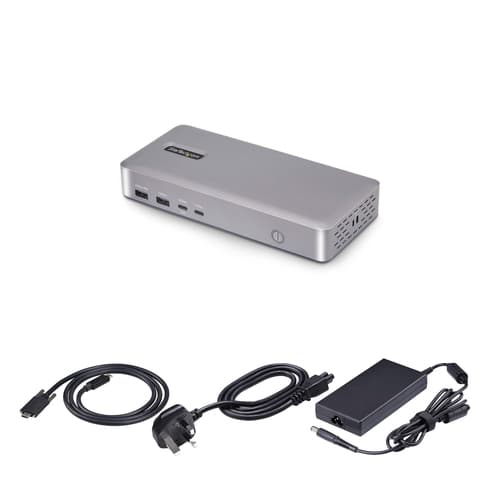

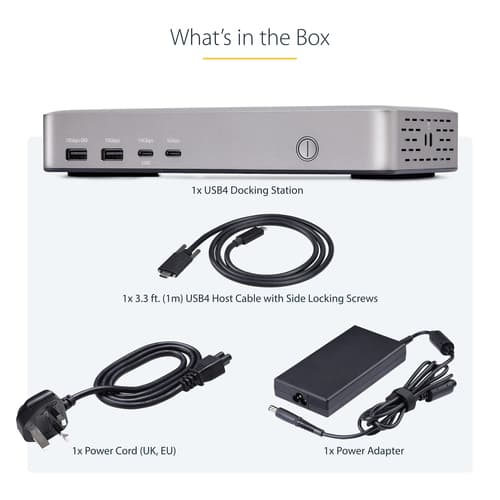

Packaging content
Cables included
USB
Quick start guide
Yes
Logistics data
Products per master (outer) case
8 pc(s) pc(s)
Master (outer) case width
305 mm mm
Master (outer) case length
375 mm mm
Master (outer) case height
265 mm mm
Other features
Chipset
VIA - VL830, VIA - VL163, Realtek - RTD2188-VA-CG, Genesys Logic - GL9901NE
