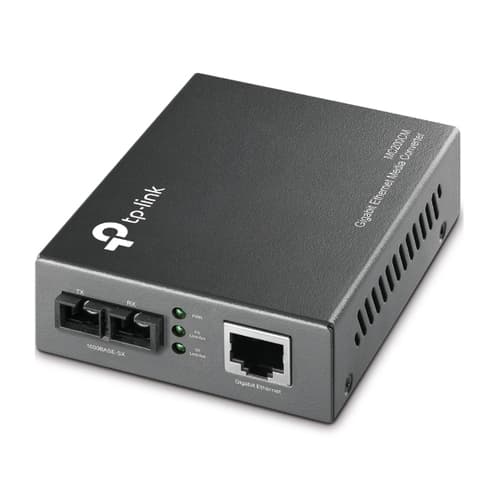

TP-Link MC200CM RJ45 to multi-mode SC fiber Converter
Manuf P/N: MC200CM
APAXON#: 2332177
EAN: 0230494832935
TP-Link MC200CM RJ45 to multi-mode SC fiber Converter
- Wired
- 1000 Mbit/s 550 m 850 nm
- Ethernet LAN (RJ-45) ports: 1
- Multi-mode Fiber ports quantity: 1 SC 50/125,62.5/125 µm
- Black
Stock27
Price £26.70
Quantity
|
Similar Products
TP-Link TL-FC311A-20 V2 - Fibre media converter - 1GbE - 1000Base-T, WDM, 1000Base-SC - RJ-45 / SC single-mode - up to 20 km - 1310 (RX) / 1550 (TX) nm
Cheaper
—
—
—
—
Stock0
£0.00
Product Summary
TP-Link MC200CM network media converter 1000 Mbit/s 850 nm Multi-mode Black
Extended Specification
Network
Maximum data transfer rate
1000 Mbit/s
Networking standards
IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
Ethernet interface type
Gigabit Ethernet
Ethernet LAN data rates
10,100,1000 Mbit/s
Auto MDI/MDI-X
Yes
Duplex system
Full, Half
Cable types supported
Cat5, Cat5e
Performance
Maximum transfer distance
550 m
Wavelength
850 nm
Fiber mode structure
Multi-mode
Fiber cable diameters supported (core/cladding)
50/125,62.5/125 µm
Features
Internal
No
LED indicators
Yes
Product colour
Black
Ports & interfaces
Fiber optic connector
SC
Connectivity technology
Wired
Ethernet LAN (RJ-45) ports
1
Fiber ports quantity
1
Power
Power consumption (max)
1.66 W
Weight & dimensions
Width
95 mm
Depth
73 mm
Height
27 mm
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Packaging content
Manual
Yes
Certificates
Compliance certificates
RoHS
Logistics data
Harmonized System (HS) code
85176990
