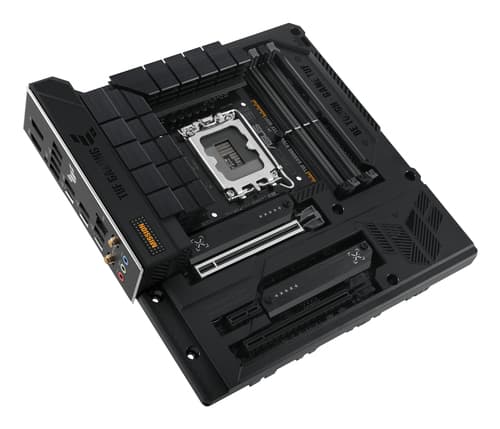

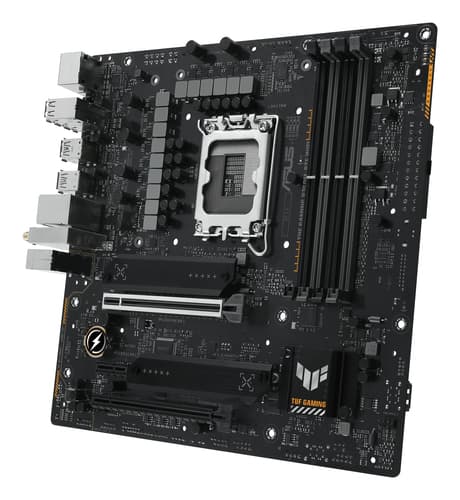

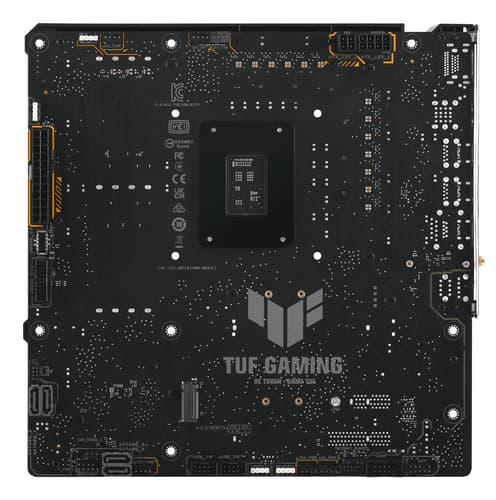

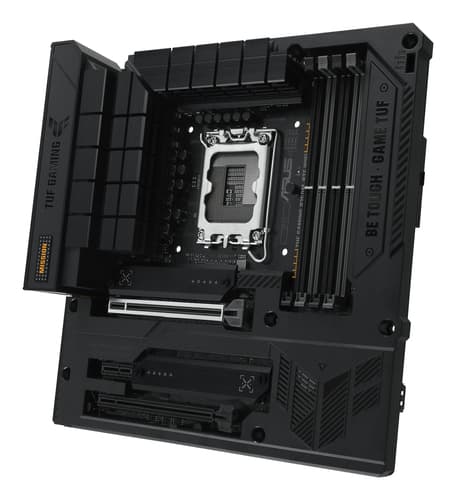

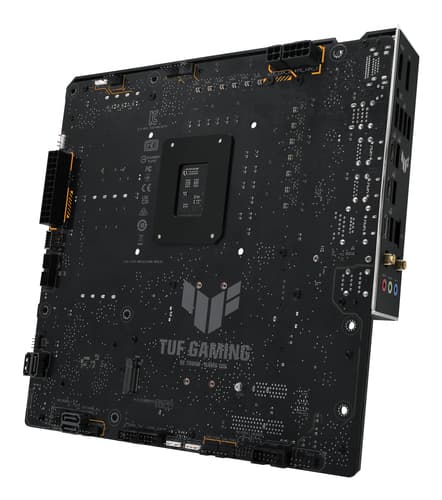

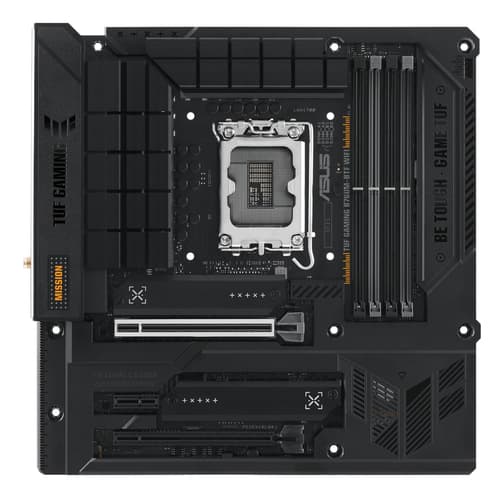

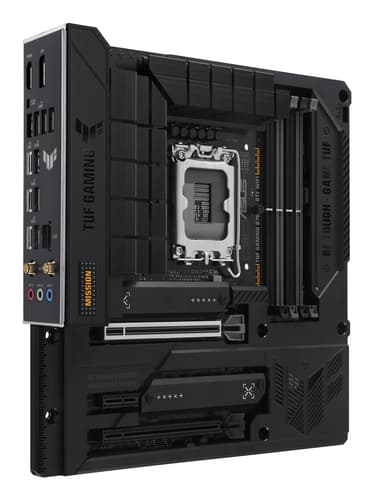

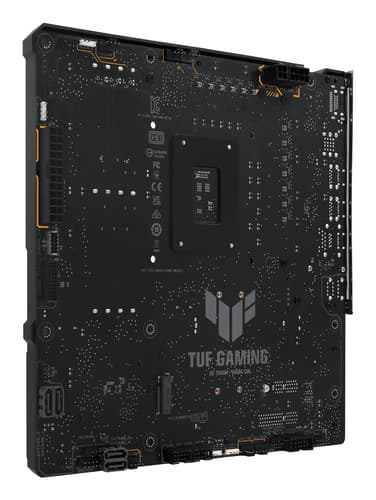

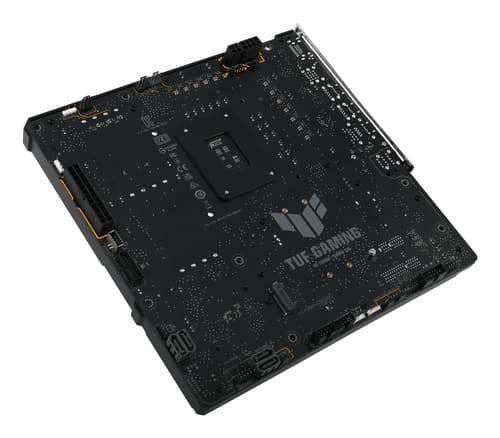

TUF GAMING B760M-BTF WIFI
Similar Products
Overview
ASUS TUF GAMING B760M-BTF WIFI, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., LGA 1700, DDR5-SDRAM, 192 GB
Specifications
Internal I/O
- USB 2.0 connectors
- 2
- Number of SATA III connectors
- 4
- CPU fan connector
- Yes
- EPS power connector (8-pin)
- Yes
- 12V power connector
- Yes
- ATX Power connector (24-pin)
- Yes
- Peripheral (Molex) power connectors (4-pin)
- 1
- Thunderbolt headers
- 1
- RGB LED pin header
- Yes
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 1
- Front panel audio connector
- Yes
- Number of chassis fan connectors
- 3
- Number of COM connectors
- 1
Storage controllers
- Number of storage drives supported
- 7
- Supported storage drive types
- HDD & SSD
- Number of HDDs supported
- 4
- Supported storage drive interfaces
- M.2, SATA III
- RAID levels
- 0, 1, 5, 10
- RAID support
- Yes
Processor
- Processor socket
- LGA 1700
- Compatible processor series
- Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
- Supported processor sockets
- LGA 1700
- Processor manufacturer
- Intel
Memory
- Supported memory types
- DDR5-SDRAM
- Number of memory slots
- 4
- Maximum internal memory
- 192 GB GB
- Memory channels
- Dual-channel
- ECC сompatibility
- Non-ECC
- Memory slots type
- DIMM
- Unbuffered memory
- Yes
- Supported memory clock speeds
- 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz MHz
- Supported memory clock speed (max)
- 7200 MHz MHz

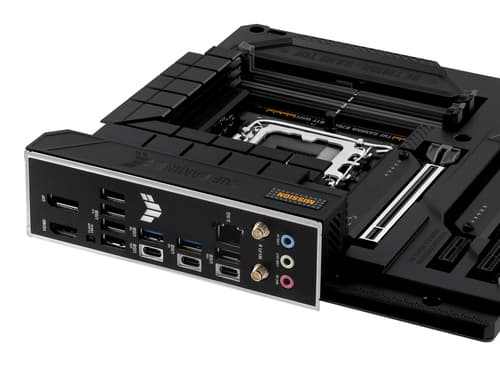

Rear panel I/O ports
- USB 2.0 ports quantity
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 1
- Ethernet LAN (RJ-45) ports
- 1
- USB 3.2 Gen 2x2 Type-C ports quantity
- 1
- HDMI version
- 2.1
- DisplayPort version
- 1.4

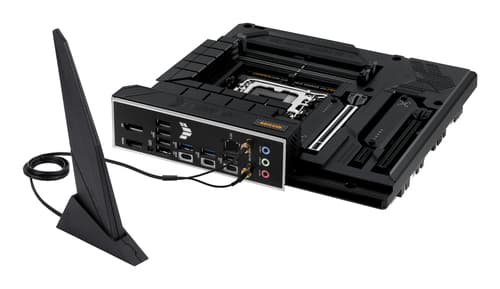

- WiFi-AP antenna jack
- 1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
- 1
- HDMI ports quantity
- 1
- DVI-D ports quantity
- 0
- Headphone outputs
- 1
- Microphone in
- Yes
- VGA (D-Sub) ports quantity
- 0
- DisplayPorts quantity
- 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
- Line-in
- Yes
Graphics
- Parallel processing technology support
- Not supported
Network
- Ethernet LAN
- Yes
- Ethernet interface type
- 2.5 Gigabit Ethernet
- Top Wi-Fi standard
- Wi-Fi 6 (802.11ax)
- Wi-Fi
- Yes
- Wi-Fi standards
- 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
- Bluetooth version
- 5.2
- Bluetooth
- Yes
Features
- Component for
- PC
- Motherboard form factor
- micro ATX
- Motherboard chipset family
- Intel
- Motherboard chipset
- Intel B760
- Power source type
- ATX
- Cooling type
- Passive
- Windows operating systems supported
- Windows 10, Windows 11
- Audio output channels
- 7.1 channels channels
Expansion slots
- PCI Express x16 (Gen 4.x) slots
- 1
- PCI Express x16 (Gen 5.x) slots
- 1
- PCI Express x1 (Gen 4.x) slots
- 1
- Number of M.2 (M) slots
- 3
BIOS
- BIOS memory size
- 128 Mbit Mbit
- Clear CMOS button
- Yes
- BIOS type
- UEFI AMI
Packaging content
- User guide
- Yes
- Cables included
- SATA
Weight & dimensions
- Depth
- 244 mm mm
- Width
- 244 mm mm
