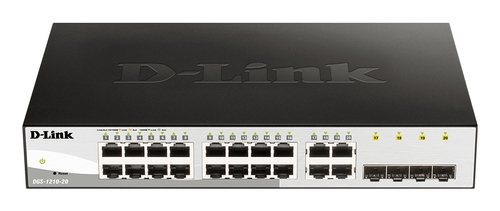

D-Link Web Smart DGS-1210-20
Weight: 2.78 KG
- Managed L2 Web-based management
- Quality of Service (QoS) support Configuring Location Settings (CLI)
- Basic switching RJ-45 Ethernet ports quantity: 16
- 10BASE-T, 100BASE-TX, 1000BASE-T
- MAC address table: 8000 entries Switching capacity: 40 Gbit/s
- Access Control List (ACL)
Similar Products
Overview
The DGS-1210-10/10P/20/28 features a fanless design that allows for quieter operation and helps to extend the device's lifetime. While the DGS-1210-28P/52/52P feature a smart fan design that powers on after the switch reaches a certain temperature, saving energy and cutting costs without sacrificing performance.
Specifications
Management features
- Switch layer
- L2
- Quality of Service (QoS) support
- Yes
- Web-based management
- Yes
- ARP inspection
- Yes
- Configuring Location Settings (CLI)
- Yes
- System event log
- Yes
- MIB support
- Y
- Switch type
- Managed
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity
- 16
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Installed SFP modules quantity
- 0
- Installed SFP+ modules quantity
- 0
- Combo SFP ports quantity
- 4
- Power connector
- AC-in jack
Network
- Networking standards
- IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
- Copper ethernet cabling technology
- 10BASE-T, 100BASE-TX, 1000BASE-T
- Port mirroring
- Yes
- Full duplex
- Yes
- Flow control support
- Yes
- Link aggregation
- Yes
- Broadcast storm control
- Yes
- Auto MDI/MDI-X
- Yes
- Spanning tree protocol
- Yes
- Head-of-line (HOL) blocking
- Yes
- Auto-negotiation
- Yes
- VLAN support
- Yes
- Number of VLANs
- 256
Data transmission
- MAC address table
- 8000 entries
- Switching capacity
- 40 Gbit/s
- Forwarding rate
- 77.4 Mpps
- Store-and-forward
- Yes
- Jumbo frames support
- Yes
- Jumbo frames
- 10000
- Packet buffer memory
- 4.1 MB
- MAC address table
- 8000 entries entries
- Switching capacity
- 40 Gbit/s Gbit/s
- Forwarding rate
- 77.4 Mpps Mpps
- Packet buffer memory
- 4.1 MB MB
Security
- DHCP features
- DHCP server, DHCP client
- Access Control List (ACL)
- Yes
- IGMP snooping
- Yes
- MAC address filtering
- Yes
- Loop protection
- Yes
Multicast features
- Multicast support
- Yes
Design
- Rack mounting
- Yes
- Stackable
- Yes
- Form factor
- 1U
- Product colour
- Black
- LED indicators
- Yes
Performance
- Memory type
- DDR3-SDRAM
- Internal memory
- 256 MB
- Flash memory
- 32 MB
- Noise level
- 0 dB
- Mean time between failures (MTBF)
- 1087100 h
- Flash memory
- 32 MB MB
- Noise level
- 0 dB dB
- Mean time between failures (MTBF)
- 1087100 h h
- Internal memory
- 256 MB MB
Power
- Power source
- AC
- Power supply included
- Yes
- AC input voltage
- 100 - 240 V
- AC input frequency
- 50/60 Hz
- Power consumption (max)
- 13.08 W
- AC input frequency
- 50/60 Hz Hz
- Power consumption (max)
- 13.08 W W
- Voltage Required
- AC 120/230 V (50/60 Hz) V
Power over Ethernet (PoE)
- Power over Ethernet (PoE)
- No
Operational conditions
- Operating temperature (T-T)
- -5 - 50 °C
- Storage temperature (T-T)
- -20 - 70 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Heat dissipation
- 44.62 BTU/h
- Operating temperature (T-T)
- -5 - 50 °C °C
- Storage temperature (T-T)
- -20 - 70 °C °C
- Operating relative humidity (H-H)
- 0 - 95% %
- Storage relative humidity (H-H)
- 0 - 95% %
- Heat dissipation
- 44.62 BTU/h BTU/h
Weight & dimensions
- Width
- 280 mm
- Depth
- 180 mm
- Height
- 44 mm
- Weight
- 1.75 kg
- Width
- 280 mm mm
- Depth
- 180 mm mm
- Height
- 44 mm mm
- Weight
- 1.75 kg kg
General
- Subtype
- Gigabit Ethernet
- Device Type
- Switch - 16 ports - Managed
- Remote Management Protocol
- SNMP 1, SNMP 2, Telnet, SNMP 3, SNMP 2c, HTTP, CLI
- Ports
- 16 x 10/100/1000 + 4 x Gigabit SFP
- Enclosure Type
- Desktop, rack-mountable 1U
- Performance
- Switching capacity: 40 Gbps, Forwarding performance: 29.8 Mpps
- Status Indicators
- Port transmission speed, power, link OK, link/activity
- Features
- Flow control, full duplex capability, Layer 2 switching, DHCP support, auto-negotiation, BOOTP support, RARP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, WRR queuing, store and forward, MAC address filtering, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, STP support, RSTP support, TFTP support, ACL support, QoS, DHCP server, Safeguard Engine, D-Link Green Technology
