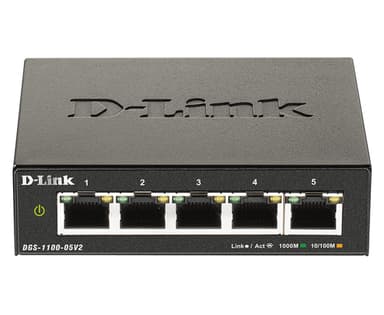

D-Link DGS 1100-05V2
Switch
smart
5 x 10/100/1000
desktop
AC 100/240 V
Weight: 0.56 KG
- Managed L2 Web-based management
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 5
- Fanless design for silent operation
- Innovative D-Link Green energy saving features
- Complete web interface for comprehensive switch management
Similar Products
Overview
The DGS-1100 series’ web user interface gives administrators an easy way to manage Layer 2 features, such as VLANs, Spanning Tree Protocol (STP), and link aggregation (desktop models utilize Static Trunk). With powerful security features including IGMP snooping, Static MAC, and Storm Control, these smart managed switches are a versatile solution for deployments that require easy to configure functionality without added complexities.
Specifications
Management features
- Switch type
- Managed
- Switch layer
- L2
- Quality of Service (QoS) support
- Yes
- Web-based management
- Yes
- Cloud-managed
- Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity
- 5
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Installed SFP modules quantity
- 0
- Installed SFP+ modules quantity
- 0
Network
- Copper ethernet cabling technology
- 1000BASE-T
- Auto MDI/MDI-X
- Yes
- 10G support
- No
Data transmission
- Switching capacity
- 10 Gbit/s
- Forwarding rate
- 7.4 Mpps
- Packet buffer memory
- 0.125 MB
- MAC address table
- 2000 entries entries
- Switching capacity
- 10 Gbit/s Gbit/s
- Forwarding rate
- 7.4 Mpps Mpps
- Jumbo frames support
- Yes
- Jumbo frames
- 9216
- Packet buffer memory
- 1 MB MB
Design
- Rack mounting
- No
- Product colour
- Black
- Reset button
- Yes
- Number of fans
- 0 fan(s)
- Number of fans
- 0 fan(s) fan(s)
Performance
- Noise level
- 0 dB
- Fanless
- Yes
- Noise level
- 0 dB dB
Power
- AC input voltage
- 100 - 240 V
- DC input voltage
- 5 V
- Input current
- 1 A
- Power consumption (max)
- 3.42 W
- Power source
- AC
- AC input voltage
- 100 - 240 V V
- AC input frequency
- 50/60 Hz Hz
- DC input voltage
- 5 V V
- Input current
- 1 A A
- Power consumption (max)
- 3.42 W W
Power over Ethernet (PoE)
- Power over Ethernet (PoE)
- No
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -40 - 70 °C
- Operating relative humidity (H-H)
- 0 - 90%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 2000 m
- Storage temperature (T-T)
- -40 - 70 °C °C
- Operating relative humidity (H-H)
- 0 - 90% %
- Storage relative humidity (H-H)
- 0 - 95% %
- Operating temperature (T-T)
- 0 - 40 °C °C
- Operating altitude
- 0 - 2000 m m
Weight & dimensions
- Width
- 100.5 mm
- Depth
- 28 mm
- Height
- 82 mm
- Weight
- 230 g
- Width
- 100.5 mm mm
- Depth
- 28 mm mm
- Height
- 82 mm mm
- Weight
- 230 g g
Logistics data
- Harmonized System (HS) code
- 85176990
General
- Enclosure Type
- Desktop
- Flash Memory
- 2 MB
- Subtype
- Gigabit Ethernet
- Encryption Algorithm
- SSL
- MAC Address Table Size
- 2K entries
- Routing Protocol
- IGMPv2, IGMP, IGMPv3
- Ports
- 5 x 10/100/1000
- Device Type
- Switch - 5 ports - smart
- Performance
- Switching capacity: 10 Gbps Forwarding performance: 7.44 Mpps
- Status Indicators
- Power, status, link/activity/speed
- Capacity
- VLAN groups: 128 VLAN IDs: 4094 IGMP groups: 128
- Remote Management Protocol
- SNMP 2, ICMP
- Features
- Flow control, auto-negotiation, BOOTP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack prevention, port mirroring, Broadcast Storm Control, full duplex mode, Multicast Storm Control, Unicast Storm Control, STP support, RSTP support, QoS, Cable Diagnostics Function, bandwidth control, fanless, LLDP support, Port Security, DHCP client, tagged VLAN, DSCP support, 1Mbit packet buffer, IGMP querier, Voice VLAN, VLAN management, VLAN group, EEE, WRR, HOL Blocking Prevention, loopback detection, port-based VLAN, port-based QoS, Unknown Storm Control, DNA support, Asymmetric VLAN
