D-Link Web Smart DGS-1210-10MP
Manuf P/N: DGS-1210-10MP
APAXON#: 4483945
EAN: 790069432507

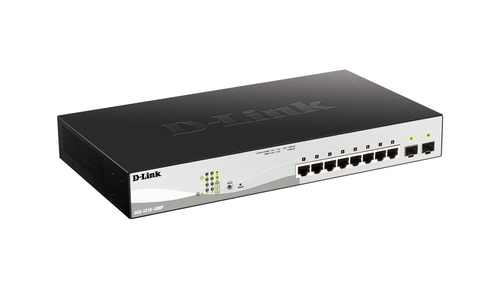

D-Link Web Smart DGS-1210-10MP
Switch
L2+
smart
8 x 10/100/1000 (PoE+) + 2 x Gigabit SFP
desktop
PoE+ (130 W)
Weight: 3.14 KG
Switch
L2+
smart
8 x 10/100/1000 (PoE+) + 2 x Gigabit SFP
desktop
PoE+ (130 W)
Weight: 3.14 KG
- Managed L2/L3 Web-based management
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 8
- Cat5, Cat5e 10BASE-T, 100BASE-TX, 1000BASE-T
- MAC address table: 8000 entries Switching capacity: 20 Gbit/s
- 768 Access Control List (ACL)
- Power over Ethernet (PoE)
UK Stock3
ConditionNew
Price £ 139.04
Price inc. VAT
£ 166.85
Quantity
|
Sales & Technical Enquiries
Phone: 0161 464 9941Email: sales@apaxon.co.uk
Similar Products
Product Summary
The D-Link DGS-1210 series smart managed switches are the generation of switches to provide increased Power over Ethernet (PoE) output, a range of physical interface types, multiple management interfaces, and advanced Layer 2 features. With all of these features combined, the DGS-1210 series provides a cost-efficient and flexible solution for expanding any business network. The DGS-1210 series switches support 10/100/1000Base-T ports. Each switch also supports an additional Gigabit SFP ports for optical connections, using multimode or single-mode SFP transceivers.
Extended Specification
Management features
Switch type
Managed
Switch layer
L2/L3
Quality of Service (QoS) support
Yes
Web-based management
Yes
ARP inspection
Yes
System event log
Yes
MIB support
RFC1212, RFC1213, RFC1215, RFC1493, RFC1157, RFC2573, RFC2575, RFC2576, RFC1442, RFC1901, RFC1902, RFC1903, RFC1904, RFC1905, FC1906, RFC1907, RFC1908, RFC2578, RFC3418, RFC271, RFC1757, RFC2819, RFC2021, RFC1398, RFC1643, RFC1650, RFC2358, RFC2665, RFC2674, RFC2618, RFC4022, RFC4113, RFC2389, RFC2620
Technical details
Pallet gross weight (sea)
430.6 kg
Shipping (inner) case height
34.9 cm
Shipping (inner) case width
29.4 cm
Shipping (inner) case length
41.6 cm
Shipping (inner) case net weight
9.31 kg
Products per shipping (inner) case
3 pc(s)
Pallet gross weight (air)
268.3 kg
Master (outer) cases per pallet (air)
24 pc(s)
Products per pallet (air)
72 pc(s)
Pallet gross length
110 cm
Pallet gross width
120 cm
Pallet height (air)
118.2 cm
Master (outer) cases per pallet (sea)
40 pc(s)
Products per pallet (sea)
120 pc(s)
Pallet height (sea)
188 cm
Shipping (inner) case gross weight
10.1 kg
Shipping (inner) case height
34.9 cm cm
Shipping (inner) case width
29.4 cm cm
Shipping (inner) case length
41.6 cm cm
Shipping (inner) case net weight
9.31 kg kg
Products per shipping (inner) case
3 pc(s) pc(s)
Pallet gross weight (air)
268.3 kg kg
Master (outer) cases per pallet (air)
24 pc(s) pc(s)
Products per pallet (air)
72 pc(s) pc(s)
Pallet gross length
110 cm cm
Pallet gross width
120 cm cm
Pallet height (air)
118.2 cm cm
Pallet gross weight (sea)
430.6 kg kg
Master (outer) cases per pallet (sea)
40 pc(s) pc(s)
Products per pallet (sea)
120 pc(s) pc(s)
Pallet height (sea)
188 cm cm
Shipping (inner) case gross weight
10.1 kg kg
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity
0
Installed SFP+ modules quantity
0
SFP module slots quantity
2
Fiber optic connector
SFP
Network
Networking standards
IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support
No
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported
Cat5, Cat5e
Port mirroring
Yes
Full duplex
Yes
Flow control support
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Auto MDI/MDI-X
Yes
Spanning tree protocol
Yes
Head-of-line (HOL) blocking
Yes
VLAN support
Yes
Number of VLANs
4094
Optical fiber
Fiber ethernet cabling technology
100BASE-FX, 1000BASE-X
Data transmission
MAC address table
8000 entries
Switching capacity
20 Gbit/s
Forwarding rate
14.88 Mpps
Store-and-forward
Yes
Jumbo frames support
Yes
Jumbo frames
10000
Packet buffer memory
4.1 MB
MAC address table
8000 entries entries
Switching capacity
20 Gbit/s Gbit/s
Forwarding rate
14.88 Mpps Mpps
Packet buffer memory
4.1 MB MB
Security
DHCP features
DHCP server, DHCP client
Access Control List (ACL)
Yes
Access Control List (ACL) rules
768
IGMP snooping
Yes
Security algorithms
802.1x RADIUS, EAP, MD5, PEAP, SNMP, SSH-2, SSL/TLS, TTLS
Loop protection
Yes
IP-MAC-Port binding
Yes
Multicast features
Multicast support
Yes
Design
Product colour
Black
LED indicators
Activity, Link, Power, Speed
Safety
CB, UL, BSMI, CCC
Performance
Memory type
DDR3-SDRAM
Internal memory
128 MB
Flash memory
32 MB
Noise level
0 dB
Firmware upgradeable
Yes
Maximum cable length
100 m
Mean time between failures (MTBF)
1274005 h
Internal memory
128 MB MB
Flash memory
32 MB MB
Noise level
0 dB dB
Maximum cable length
100 m m
Mean time between failures (MTBF)
1274005 h h
Power
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (max)
152.3 W
Voltage Required
AC 120/230 V (50/60 Hz) V
AC input frequency
50 - 60 Hz Hz
Power consumption (max)
152.3 W W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
8
Total Power over Ethernet (PoE) budget
130 W
Total Power over Ethernet (PoE) budget
130 W W
Operational conditions
Operating temperature (T-T)
-5 - 50 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Heat dissipation
519.51 BTU/h
Storage temperature (T-T)
-20 - 70 °C °C
Operating temperature (T-T)
-5 - 50 °C °C
Operating relative humidity (H-H)
0 - 95% %
Storage relative humidity (H-H)
0 - 95% %
Heat dissipation
519.51 BTU/h BTU/h
Weight & dimensions
Width
330 mm
Depth
180 mm
Height
44 mm
Weight
1.77 kg
Width
330 mm mm
Depth
180 mm mm
Height
44 mm mm
Weight
1.77 kg kg
Packaging data
Package width
319 mm
Package depth
400 mm
Package height
91 mm
Package weight
3.1 kg
Package weight
3.1 kg kg
Package width
319 mm mm
Package depth
400 mm mm
Package height
91 mm mm
Certificates
Certification
CE A, VCCI A, FCC A, BSMI, CCC
Logistics data
Harmonized System (HS) code
85176990
General
Enclosure Type
Desktop
Subtype
Gigabit Ethernet
Authentication Method
RADIUS, Extensible Authentication Protocol (EAP)
Power Over Ethernet (PoE)
PoE+
Routing Protocol
IGMPv2, IGMP, static IP routing, IGMPv3, MLDv2, MLD
Ports
8 x 10/100/1000 (PoE+) + 2 x Gigabit SFP
Performance
Switching capacity: 20 Gbps Forwarding performance (64-byte packet size): 14.88 Mpps
Status Indicators
Power, link/activity/speed
Device Type
Switch - 8 ports - L2+ - smart
Remote Management Protocol
SNMP 1, RMON 1, Telnet, SNMP 3, SNMP 2c, TFTP, SSH-2, CLI
Encryption Algorithm
MD5, TLS, TLS 1.0, PEAP, TTLS
Features
Flow control, MDI/MDI-X switch, BOOTP support, DoS attack prevention, port mirroring, store and forward, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, firmware upgradable, STP support, RSTP support, MSTP support, bandwidth control, LLDP support, LACP, Port Security, DHCP client, dual firmware images, NDP, Loopback, ToS, DSCP support, AAA, HOL blocking, WRR
Disclaimers
- Product data is provided by CNET, we do not warrant the accuracy and completeness of the material contained in this data sheet
