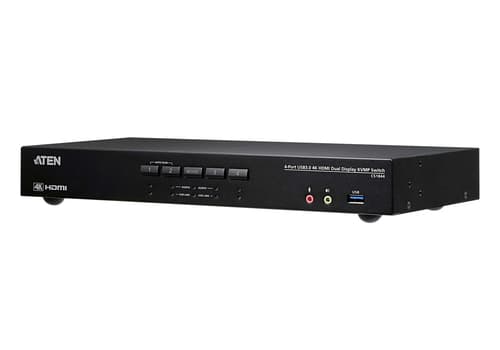

ATEN CS1844 KVMP Switch - KVM / audio / USB switch - 4 x KVM / audio / USB - 1 local user - desktop - for VanCryst VS184B
- Black
- Number of computers controlled: 4
- Keyboard port type: USB Mouse port type: USB Video port type: HDMI
- 4K DCI 4096 x 2160 pixels
- Housing material: Metal
- Hot keys
- DC 4.42 W
Overview
ATEN CS1844 KVM switch Black
Specifications
Ports & interfaces
- Number of computers controlled
- 4
- Keyboard port type
- USB
- Mouse port type
- USB
- Video port type
- HDMI
- Console ports
- 3.5mm headphone, 3.5mm mic, HDMI, USB A
- HDMI ports quantity
- 10
- HDMI version
- 2.0
- USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
- 4
- Console USB ports quantity
- 2
- USB hub
- Yes
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity
- 2
- Headphone outputs
- 2
- Number of microphone inputs
- 2
Network
- Ethernet LAN (RJ-45) ports
- 1
Performance
- HD type
- 4K DCI
- Maximum resolution
- 4096 x 2160 pixels
- Video bandwidth
- 60 Hz
- Scan interval
- 5 s
- Auto scan delay (min)
- 1 s
- Auto scan delay (max)
- 99 s
- HDCP
- Yes
- Daisy chain
- Yes
- Number of displays supported
- 4
- Firmware upgradeable
- Yes
Design
- Product colour
- Black
- Housing material
- Metal
- Push button
- Yes
- Hot keys
- Yes
Display
- Built-in display
- No
Power
- Power source
- DC
- Input voltage
- 12 V
- Power consumption (typical)
- 4.42 W
Sustainability
- Compliance certificates
- RoHS
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
Weight & dimensions
- Width
- 160.5 mm
- Depth
- 335 mm
- Height
- 44 mm
- Weight
- 1.57 kg
Packaging content
- Cables included
- Audio (3.5mm), HDMI, USB
- Manual
- Yes
- AC adapter included
- Yes
