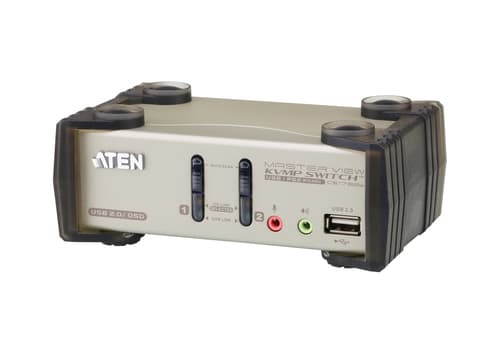

ATEN MasterView CS1732B KVMP Switch - KVM / audio / USB switch - 2 x KVM / audio / USB - 1 local user - desktop
Manuf P/N: CS1732B
APAXON#: 11494886
EAN: 4710423775060
ATEN MasterView CS1732B KVMP Switch - KVM / audio / USB switch - 2 x KVM / audio / USB - 1 local user - desktop
- Number of computers controlled: 2
- Keyboard port type: USB, PS/2 Mouse port type: USB, PS/2 Video port type: VGA
- 2048 x 1536 pixels
- Housing material: Metal
- Hot keys
- DC 2.5 W
Stock0
Price £99.59
Quantity
|
Similar Products
ATEN MasterView CS1732B KVMP Switch - KVM / audio / USB switch - 2 x KVM / audio / USB - 1 local user - desktop
Your Choice
—
—
—
—
Stock0
£99.59
ATEN 2L-5301UP - Keyboard / video / mouse (KVM) cable - 18 pin SPHD (M) to USB, PS/2, HD-15 (VGA) (M) - 1.2 m
Cheaper
—
—
—
—
Stock0
£12.28
Product Summary
ATEN CS1732B KVM switch
Extended Specification
Ports & interfaces
Number of computers controlled
2
Keyboard port type
USB, PS/2
Mouse port type
USB, PS/2
Video port type
VGA
Console ports
3.5mm headphone, 3.5mm mic
USB hub
Yes
USB 2.0 ports quantity
2
USB version
2.0
Audio connections
Yes
Headphone outputs
4
Performance
Maximum resolution
2048 x 1536 pixels
Video bandwidth
60 Hz
Scan interval
1,255 s
DDC2B support
Yes
Firmware upgradeable
Yes
Design
Housing material
Metal
Cable length
1.2 m
LED indicators
Network, USB
Push button
Yes
Hot keys
Yes
Display
On Screen Display (OSD)
Yes
Power
Power source
DC
Input voltage
5.3 V
Power consumption (typical)
2.5 W
System requirements
Windows operating systems supported
Yes
Mac operating systems supported
Yes
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
140 mm
Depth
88 mm
Height
55.5 mm
Weight
550 g
Packaging content
Cables included
KVM
Quick installation guide
Yes
Manual
Yes
