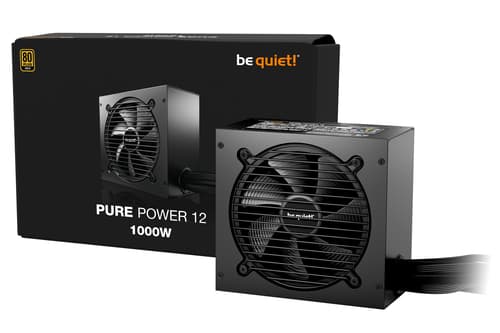

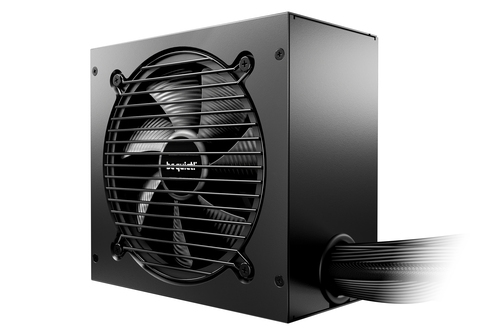

be quiet! PURE POWER 12 1000W power supply unit 20+4 pin ATX ATX Black
- 80 PLUS® Gold efficiency (up to 92.9%)
- ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs with 6+2 pin connectors
- Exceptionally silent 120mm be quiet! fan
- Advanced stability and voltage regulation thanks to LLC technology
- One massive high-performance 12V-rail
- One PCIe 5.1 12V-2x6 600W and 3 PCIe 6+2 connectors for overclocked high-end GPUs
Overview
Pure Power 12 1000W is ATX 3.1 compliant and PCIe 5.1 compatible and offers peerless dependability with best-in-class features. Having both a PCIe 5.1 cable and PCIe 6+2 cables in the scope of delivery, this PSU offers remarkable convenience and outstanding compatibility.
Specifications
Power
- Total power
- 1000 W W
- AC input voltage
- 110 - 240 V V
- Peak power
- 1050 W W
- AC input frequency
- 50/60 Hz Hz
- Maximum input current (@110V)
- 12 A A
- Maximum input current (@220V)
- 6 A A
- Power factor
- 0.98
- Power Factor Correction (PFC) type
- Active
- Number of +12V rail(s)
- 1
- Combined power (+3.3V)
- 120 W W
- Combined power (+12V)
- 1000 W W
- Combined power (+5V)
- 120 W W
- Combined power (-12V)
- 3.6 W W
- Combined power (+5Vsb)
- 15 W W
- Max output current (+3.3V)
- 22 A A
- Max output current (+12V1)
- 83.4 A A
- Max output current (+5V)
- 22 A A
- Max output current (-12V)
- 0.3 A A
- Max output current (+5Vsb)
- 3 A A
- Hold time
- 17.82 ms ms
- Efficiency
- 90.6% %
- Power protection features
- Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Under voltage
Ports & interfaces
- Motherboard power connector
- 20+4 pin ATX
- Peripheral (Molex) power connectors (4-pin)
- 1
- Motherboard power cable length
- 55 cm cm
- Number of SATA power connectors
- 6
- SATA power cable length
- 500,650,800,950 mm mm
- Peripheral (Molex) power cable length
- 800 mm mm
- PCI Express power connectors (6+2 pin)
- 3
- PCI Express power connectors (12-pin)
- 1
- PCI Express power cable length
- 60 cm cm
- CPU power connector (4+4 pin)
- Yes
- CPU power cable length
- 60 cm cm
- Cabling type
- Non-Modular
Performance
- Purpose
- PC
- Power supply unit (PSU) form factor
- ATX
- 80 PLUS certification
- 80 PLUS Gold
- ATX version
- 3.1
- EPS version
- 2.92
- Noise level
- 31.6 dB dB
- Bearing technology
- Rifle
- Mean time between failures (MTBF)
- 100000 h h
Design
- Product colour
- Black
- Cooling type
- Active
- Fan diameter
- 12 cm cm
- Number of fans
- 1 fan(s) fan(s)
- On/off switch
- Yes
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C °C
- Storage temperature (T-T)
- -20 - 70 °C °C
- Operating relative humidity (H-H)
- 0 - 90% %
- Storage relative humidity (H-H)
- 0 - 95% %
Packaging content
- Cables included
- AC
- Cable tie(s) included
- Yes
Certificates
- Compliance certificates
- CB, CE, Federal Communications Commission (FCC), RoHS, UKCA, WEEE, cTUVus
Weight & dimensions
- Width
- 86 mm mm
- Depth
- 160 mm mm
- Height
- 150 mm mm
- Weight
- 2.8 kg kg
Packaging data
- Package width
- 133 mm mm
- Package depth
- 320 mm mm
- Package height
- 210 mm mm
- Package weight
- 3.2 kg kg
Technical details
- Sustainability certificates
- ENERGY STAR, ErP, Triman
Logistics data
- Shipping (inner) case length
- 56 cm cm
- Shipping (inner) case width
- 24 cm cm
- Shipping (inner) case height
- 34 cm cm
- Shipping (inner) case net weight
- 13.9 kg kg
- Products per shipping (inner) case
- 4 pc(s) pc(s)
- Warranty period
- 10 year(s) year(s)
Other features
- Screws included
- Yes
