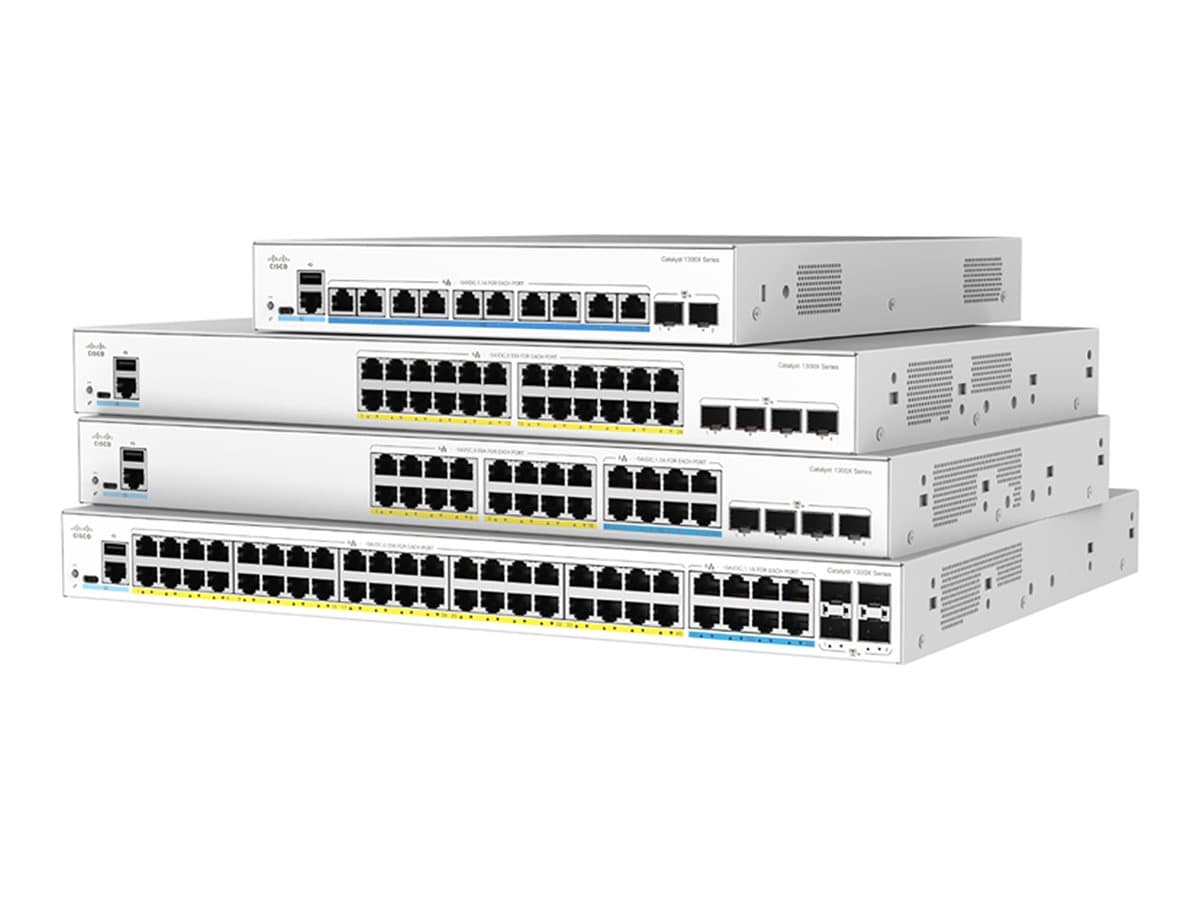

Cisco Catalyst 1300X-24T-4X - switch - 24 ports - Managed - rack-mountable
Switch
L3
Managed
4 x 10 Gigabit SFP28 + 24 x 10/100/1000Base-T
rack-mountable
Weight: 5.58 KG
- Supports up to 128 Gbps switching capacity
- Equipped with 24 ports for extensive connectivity
- Robust VLAN support for efficient network management
- Advanced security features including DoS protection
- Designed for reliable operation with a wide temperature range
Similar Products
Cisco Business 220 Series CBS220-24FP-4G - switch - 28 ports - smart - rack-mountable
Overview
The Cisco Catalyst 1300X-24T-4X is engineered for high-performance network environments, delivering switching capacity and reliable connectivity. This switch supports up to 128 Gbps switching capacity and maintains a forwarding rate of 95.23 Mpps, suitable for demanding applications. It offers robust support for VLAN entries, ensuring efficient network segmentation and management while accommodating various protocols for versatility in routing and processing tasks. Designed with a focus on reliability, the Cisco Catalyst features a fan for efficient cooling, ensuring optimal operation in diverse environmental conditions, ranging from -5°C to 50°C. The switch is also rack-mountable, making it a choice for space-constrained setups. Additional features such as IGMP snooping, port security, and DoS protection enhance network security and performance, ensuring a stable experience for a wide array of users and devices within the network infrastructure.
Main Specifications
- Product Description
- Cisco Catalyst 1300X-24T-4X - switch - 24 ports - Managed - rack-mountable
- Device Type
- Switch - 24 ports - L3 - Managed - stackable
- Enclosure Type
- Rack-mountable
- Subtype
- Gigabit Ethernet
- Ports
- 4 x 10 Gigabit SFP28 + 24 x 10/100/1000Base-T
- Performance
- Forwarding rate (64‑byte packets): 95.23 Mpps ¦ Switching capacity: 128 Gbps
- Capacity
- MSTP instances: 16 ¦ RPVST+ instances: 126 ¦ Link aggregation groups: 8 ¦ Link aggregation ports: 16 ¦ VLAN entries: 4094 ¦ IGMP multicast groups: 4000 ¦ IPv4 routes: 7168 ¦ IPv4 interfaces: 256 ¦ ACL rules: 3072 ¦ Priority queues: 8 ¦ Packet buffer size: 3 MB
- MAC Address Table Size
- 32000 entries
- Jumbo Frame Support
- 9000 bytes
- Routing Protocol
- STP, static IP routing, RSTP, MSTP, IGMP, IGMPv2, IGMPv3, CIDR, RIP-2, policy-based routing (PBR), MLD, MLDv2, OSPF
- Remote Management Protocol
- CLI, SNMP, Telnet, SSH, SSH-2, DHCP, SCP, HTTPS, HTTP, ICMP, TFTP, Syslog, SNMP 2c, SNMP 3, RMON
- Features
- VLAN support, STP support, CLI management, ATP, FHS, QoS, sFlow, dynamic routing, Zero-Touch Deployment, Port Security, Web authentication, Address Resolution Protocol, ARP inspection, IP source guard, DHCP snooping, IPMB, NDP, router advertisement guard, DHCPv6 guard, layer 3 routing, LAG, port mirroring, eco-friendly button, EEE, RSTP, MSTP support, PVST+, RPVST+, LACP, Protocol-based VLANs support, MAC based VLAN, VLAN management, Private VLAN, PVE, Guest VLAN, GVRP, CPE VLAN, Auto Surveillance VLAN, MVR, Q-in-Q tunnelling, TPID, GARP, UDLD, DHCP relay, DHCP server, IGMP snooping, IGMP querier, IGMP proxy, HoL Blocking Prevention, loopback detection, ACL support, BOOTP support, UDP, High Availability, MAC address authentication, BPDU Guard, STP Root Guard, STP loop guard, DAI, DoS protection, SCT, SSD, trustworthy systems, Broadcast Storm Control, Multicast Storm Control, Storm Control, Unicast Storm Control, Unknown Storm Control, DoS attack prevention, WRR, ToS, DSCP based CoS, DiffServ support, TCP congestion, iSCSI traffic optimisation, path MTU discovery, DAD, RA guard, MLD snooping, MLD proxy, Telnet server, DNS client, Telnet client, DHCP client, Cisco NG PnP Protocol, IPv4 and IPv6 dual stack, VLAN mirroring, RSPAN, SCP, chip guard, boot integrity, time-based port operation, cable length detection, LLDP, LLDP-MED, reset button
- Compliant Standards
- IEEE 802.1p, IEEE 802.1x, IEEE 802.3az, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ad (LACP), IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- Power
- AC 100-240 V (50/60 Hz)
- Dimensions (WxDxH)
- 44.43 cm x 27 cm x 4.394 cm
- Weight
- 3.28 kg
- Manufacturer Warranty
- Limited lifetime warranty
Associated Documents
Product Features
Robust capacity for efficient management
The switch supports a maximum of 4000 VLAN entries, enabling effective network segmentation and organization. This feature is essential for managing large networks where traffic needs to be logically separated for performance and security.
High availability for critical operations
Featuring support for various storm control mechanisms, such as multicast and broadcast storm control, this switch ensures high availability of the network. It minimizes the risks associated with traffic bottlenecks and ensures consistent performance.
Advanced security measures for protection
The implementation of RADIUS and TACACS+ authentication methods provides enhanced security for user access. These protocols help to protect network access while maintaining administrative control over user permissions.
Extensive performance capabilities
With a substantial packet buffer size of 3 MB, the Cisco Catalyst 1300X-24T-4X can effectively handle high volumes of simultaneous traffic, ensuring smooth data flow in busy network environments.
Flexible remote management options
This switch supports multiple remote management protocols, including SNMP, Telnet, and SSH, allowing for seamless network monitoring and administration. These options facilitate network management from various locations, promoting easy accessibility.
What's in the box
Cisco Catalyst 1300X-24T-4X, Mounting kit, pointer card
Specifications
General
- Flash Memory
- 1 GB
- Enclosure Type
- Rack-mountable
- Subtype
- Gigabit Ethernet
- Authentication Method
- RADIUS, TACACS+
- Encryption Algorithm
- MD5, SSL
- Built-in Devices
- 1 x fan
- Device Type
- Switch - 24 ports - L3 - Managed - stackable
- MAC Address Table Size
- 32000 entries
- Ports
- 4 x 10 Gigabit SFP28 + 24 x 10/100/1000Base-T
- Jumbo Frame Support
- 9000 bytes
- RAM
- 2 GB DDR4 SDRAM
- Performance
- Forwarding rate (64‑byte packets): 95.23 Mpps, Switching capacity: 128 Gbps
- Capacity
- MSTP instances: 16, RPVST+ instances: 126, Link aggregation groups: 8, Link aggregation ports: 16, VLAN entries: 4094, IGMP multicast groups: 4000, IPv4 routes: 7168, IPv4 interfaces: 256, ACL rules: 3072, Priority queues: 8, Packet buffer size: 3 MB
- Compliant Standards
- IEEE 802.1p, IEEE 802.1x, IEEE 802.3az, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ad (LACP), IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- Status Indicators
- System, link/activity/speed
- Routing Protocol
- STP, static IP routing, RSTP, MSTP, IGMP, IGMPv2, IGMPv3, CIDR, RIP-2, policy-based routing (PBR), MLD, MLDv2, OSPF
- Remote Management Protocol
- CLI, SNMP, Telnet, SSH, SSH-2, DHCP, SCP, HTTPS, HTTP, ICMP, TFTP, Syslog, SNMP 2c, SNMP 3, RMON
- Features
- VLAN support, STP support, CLI management, ATP, FHS, QoS, sFlow, dynamic routing, Zero-Touch Deployment, Port Security, Web authentication, Address Resolution Protocol, ARP inspection, IP source guard, DHCP snooping, IPMB, NDP, router advertisement guard, DHCPv6 guard, layer 3 routing, LAG, port mirroring, eco-friendly button, EEE, RSTP, MSTP support, PVST+, RPVST+, LACP, Protocol-based VLANs support, MAC based VLAN, VLAN management, Private VLAN, PVE, Guest VLAN, GVRP, CPE VLAN, Auto Surveillance VLAN, MVR, Q-in-Q tunnelling, TPID, GARP, UDLD, DHCP relay, DHCP server, IGMP snooping, IGMP querier, IGMP proxy, HoL Blocking Prevention, loopback detection, ACL support, BOOTP support, UDP, High Availability, MAC address authentication, BPDU Guard, STP Root Guard, STP loop guard, DAI, DoS protection, SCT, SSD, trustworthy systems, Broadcast Storm Control, Multicast Storm Control, Storm Control, Unicast Storm Control, Unknown Storm Control, DoS attack prevention, WRR, ToS, DSCP based CoS, DiffServ support, TCP congestion, iSCSI traffic optimisation, path MTU discovery, DAD, RA guard, MLD snooping, MLD proxy, Telnet server, DNS client, Telnet client, DHCP client, Cisco NG PnP Protocol, IPv4 and IPv6 dual stack, VLAN mirroring, RSPAN, SCP, chip guard, boot integrity, time-based port operation, cable length detection, LLDP, LLDP-MED, reset button
- Processor
- X ARM: 1.5 GHz
Connections & Expansion
- Interfaces
- 24 x 1000Base-T RJ-45, 4 x 10GBase-X SFP28 uplink, 1 x console RJ-45, 1 x USB-C console
Manufacturer Warranty
- Service & Support
- Limited warranty - return to factory - lifetime, Technical support - consulting - 1 year
Miscellaneous
- MTBF
- 458,135 hours
- Included Accessories
- Pointer card, mounting kit
- Compliant Standards
- Plug and Play, UL 62368, CSA 22.2, FCC CFR47 Part 15 A, WEEE
Power
- Power Device
- Internal power supply
- Voltage Required
- AC 100-240 V (50/60 Hz)
Environmental Parameters
- Min Operating Temperature
- -5 °C
- Max Operating Temperature
- 50 °C
- Max Storage Temperature
- 70 °C
- Min Storage Temperature
- -25 °C
- Humidity Range Operating
- 10 - 90% (non-condensing)
- Humidity Range Storage
- 10 - 90% (non-condensing)
Weight & dimensions
- Width
- 44.43 cm
- Height
- 4.394 cm
- Depth
- 27 cm
- Weight
- 3.28 kg
