Product Comparison

Technical Specifications

Only show the difference

Feature

Brand: D-Link|SKU: DGS-1210-52

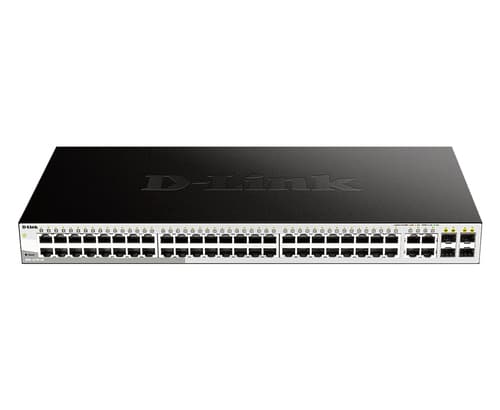

D-Link Web Smart DGS-1210-52

£330.28

Stock: 8

Brand: D-Link|SKU: DGS-3630-28SC/SI

D-Link DGS 3630-28SC

£1654.85

Stock: 1

Brand: D-Link|SKU: DGS-1210-52MP

D-Link Web Smart DGS-1210-52MP

£419.72

Stock: 6

Brand: D-Link|SKU: DGS-1210-28MP

D-Link DGS 1210-28MP

£313.22

Stock: 7

Brand: D-Link|SKU: DGS-1210-08P

D-Link Web Smart DGS-1210-08P

£100.69

Stock: 17

General

Authentication Method

—

Secure Shell v.2 (SSH2), TACACS+, RADIUS

RADIUS, Secure Shell v.2 (SSH2), internal user database, Extensible Authentication Protocol (EAP)

—

Capacity

—

IPv4 routing table entries: 16000 IPv6 routing table entries: 7000 IPv4 forwarding table entries: 32000 IPv6 forwarding table entries: 16000 VLAN groups: 4000 Dynamic VLAN entries: 4000 Static ARP entries: 512 IPv4 routes (static): 512 IPv6 routes (static): 256 QoS hardware queues per port: 8 ACL entries (egress): 4000 ACL entries (ingress): 1000

IGMP groups: 256 QoS hardware queues per port: 8 ACL rules: 768 ARP entries: 64

IGMP groups: 256, QoS hardware queues per port: 8, ACL rules: 256, ARP entries: 256, VLAN groups: 4094, IPv4 routing table entries: 32, IPv6 routing table entries: 16

—

Device Type

Switch - 48 ports - Managed

Switch - 28 ports - L3 - Managed - stackable

Switch - 52 ports - Managed

Switch - 28 ports - Managed

Switch - 8 ports - Managed

Enclosure Type

Desktop, rack-mountable 1U

Rack-mountable

Desktop, rack-mountable 1U

Encryption Algorithm

—

SSL, TLS 1.0, TLS 1.1, MD5

MD5, SSL, TLS, SSL 3.0, SSL 2.0, PEAP, TTLS

—

Features

Flow control, full duplex capability, Layer 2 switching, DHCP support, auto-negotiation, BOOTP support, RARP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, WRR queuing, store and forward, MAC address filtering, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, STP support, RSTP support, TFTP support, ACL support, QoS, DHCP server, Safeguard Engine, D-Link Green Technology

4MB packet buffer, 2 fans, Head of Line Blocking Prevention, Loop Guard, Link Aggregation, ERPS v2, port mirroring, VLAN mirroring, RSPAN, VLAN Double Tagging (Q-in-Q), VTP, GVRP, MLD snooping, IGMP snooping, PIM snooping, ARP support, Loopback, tunnelling, IGMP filtering, MLD filtering, QoS, SP, WRR queuing, PFC, bandwidth control, IP Precedence, DSCP support, SRTCM, TRTCM, ACL support, ToS, Energy Efficient Ethernet, Port Security, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Safeguard Engine, DHCP server, DAI, IP source guard, DHCP snooping, Duplicated Address Detection, packet filtering, BPDU, DoS attack prevention, AAA, 802.1x authentication, host based access control, WAC, Cable Diagnostics Function, Dying Gasp support, DDM, NTP, PTP, SNMP trap, TFTP client, LLDP support, DHCP client, SRM, sFlow, VRF-Lite, SSM, MIB II

Flow control, full duplex capability, auto-negotiation, BOOTP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, WRR queuing, store and forward, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, STP support, RSTP support, DHCP snooping, ACL support, QoS, MLD snooping, DAI, Safeguard Engine, Cable Diagnostics Function, bandwidth control, D-Link Green Technology, Port Security, IP-MAC binding, SNMP trap, DHCP client, SPQ, Multicast filtering function, CoS, TFTP client, security lock slot (cable lock sold separately), 802.1x authentication, ToS, DSCP support, 3MB packet buffer

Flow control, Layer 2 switching, auto-negotiation, BOOTP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, WRR queuing, store and forward, Broadcast Storm Control, IPv6 support, half duplex mode, full duplex mode, Multicast Storm Control, Unicast Storm Control, firmware upgradable, STP support, RSTP support, ACL support, QoS, Safeguard Engine, reset button, Cable Diagnostics Function, bandwidth control, D-Link Green Technology, fanless, LLDP support, LACP, DHCP client, Energy Efficient Ethernet

Performance

Switching capacity: 104 Gbps Forwarding performance: 77.4 Mpps

Switching capacity: 128 Gbps Forwarding performance: 95.24 Mpps Stacking bandwidth: 80 Gbps

Switching capacity: 104 Gbps Forwarding performance (64-byte packet size): 77.4 Mpps

Switching capacity: 56 Gbps, Forwarding performance (64-byte packet size): 41.7 Mpps

Switching capacity: 20 Gbps, Forwarding performance: 14.9 Mpps

Ports

48 x 10/100/1000 + 4 x Gigabit SFP

20 x Gigabit SFP + 4 x combo 1000Base-T + 4 x 10 Gigabit SFP+

8 x 10/100/1000 (PoE+) + 40 x 10/100/1000 (PoE) + 4 x SFP

24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP

8 x 10/100/1000 (PoE) + 2 x Gigabit SFP

Remote Management Protocol

SNMP 1, SNMP 2, Telnet, SNMP 3, SNMP 2c, HTTP, CLI

HTTPS, CLI, Telnet, SNMP 1, SNMP 2c, SNMP 3, TFTP, RMON 1, RMON 2, RMON 3, RMON 9

SNMP 1, RMON 1, Telnet, SNMP 3, SNMP 2c, HTTP, CLI

SNMP 1, SNMP 2, Telnet, SNMP 3, SNMP 2c, HTTP, CLI

Routing Protocol

—

MLD, MLDv2, IGMP, IGMPv2, IGMPv3, VRRPv2, VRRPv3, policy-based routing (PBR), Bidirectional Forwarding Detection (BFD), static IPv4 routing, static IPv6 routing, VRRP, RIP-1, RIP-2, RIPng, URPF, BGP-4, BGP-4+, OSPFv2, OSPFv3, DVMRPv3, PIM-DM, PIM-SM, PIM-SSM, MSDP

—

IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, MLDv2, MLD

—

Status Indicators

Port transmission speed, power, link OK, link/activity

Status

Port transmission speed, power, PoE, link/activity, fan

Port transmission speed, power, PoE, link/activity

Subtype

Gigabit Ethernet

—

Gigabit Ethernet

Power

AC input frequency

50/60 Hz

50 - 60 Hz

50/60 Hz

50 - 60 Hz

—

AC input voltage

100 - 240 V

—

100 - 240 V

—

Input voltage

—

54 V

Number of power supply units

—

Power consumption (max)

34.85 W

63.58 W

478.9 W

—

81.9 W

Power consumption (typical)

—

27.49 W

2.5 W

Power source

—

Power supply included

Yes

—

Redundant power supply (RPS) support

—

Yes

—

Surge protection

—

Yes

—

Surge protection voltage

—

6 kV

—

Voltage Required

AC 120/230 V (50/60 Hz)

Network

10G support

—

Yes

—

Yes

Auto MDI/MDI-X

Yes

—

Yes

Auto-negotiation

Yes

—

Yes

—

Broadcast storm control

Yes

—

Yes

Copper ethernet cabling technology

10BASE-T, 100BASE-TX, 1000BASE-T

10BASE-T, 100BASE-TX, 100BASE-T, 1000BASE-T

10BASE-T, 100BASE-T, 1000BASE-T

Flow control support

Yes

Full duplex

Yes

Half duplex

—

Yes

Head-of-line (HOL) blocking

Yes

—

Yes

—

Yes

IP routing

—

Yes

—

Link aggregation

Yes

Networking standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qbb, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

IEEE 802.1D, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3af

Number of VLANs

256

4094

256

4094

—

Port mirroring

Yes

Rate limiting

—

Yes

—

Routing entries

—

16000

—

Spanning tree protocol

Yes

Virtual LAN features

—

Stacked VLAN, Private VLAN, Tagged VLAN, Port-based VLAN

—

Voice VLAN, Tagged VLAN, MAC address-based VLAN, Port-based VLAN

—

VLAN support

Yes

Security

Access Control List (ACL)

Yes

Access Control List (ACL) rules

—

256

—

Authentication

—

Guest VLAN, Port-based authentication

—

Guest VLAN, MAC-based authentication, Port-based authentication

—

BPDU filtering/protection

—

Yes

—

Yes

—

DHCP features

DHCP server, DHCP client

DHCP client

DHCP server, DHCP client

IGMP snooping

Yes

IP-MAC-Port binding

—

Yes

—

Loop protection

Yes

—

MAC address filtering

Yes

—

Yes

Security algorithms

—

802.1x RADIUS, SSH, SSH-2, SSL/TLS

—

802.1x RADIUS, SNMP, SSH

—

SSH/SSL support

—

Yes

—

Yes

Static port security

—

Yes

Management features

ARP inspection

Yes

—

Configuring Location Settings (CLI)

Yes

—

Yes

—

MIB support

—

RFC1213MIB II, RFC1493, RFC1907, RFC1757, 2819, RFC2021, RFC1398, 1643, 1650, 2358, 2665, RFC2674, 4363, RFC 2233, 2863, RFC 2618, RFC 2620, RFC 2925

1213 MIB II, 1493 Bridge MIB, 1907 SNMP v2 MIB, 1215 Trap Convention MIB, 2233 Interface Group MIB, D-Link Private MIB, Power-Ethernet MIB, LLDP MIB, D-Link ZoneDefense MIB1

Quality of Service (QoS) support

Yes

Switch layer

L2/L3

Switch type

Managed

System event log

Yes

Traffic classification

—

Yes

—

Yes

—

Web-based management

Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

—

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Combo SFP ports quantity

—

Console port

—

RJ-45/Mini-USB

—

RJ-45

—

Fiber optic connector

—

SFP

—

Installed SFP modules quantity

—

Installed SFP+ modules quantity

—

Number of management ports

—

1 pc(s)

—

Power connector

AC-in jack

DC-in jack

AC-in jack

—

SFP module slots quantity

—

SFP+ module slots quantity

—

USB 2.0 ports quantity

—

Performance

Built-in processor

—

Yes

—

Flash memory

32 MB

—

32 MB

—

Internal memory

256 MB

—

256 MB

128 MB

—

Mean time between failures (MTBF)

400667 h

280612 h

236667 h

294101 h

729258 h

Memory type

DDR3-SDRAM

—

DDR3-SDRAM

—

Noise level

0 dB

56 dB

52.4 dB

—

Virtual stacking (units)

—

Design

Cable management

—

Yes

Electromagnetic compatibility

—

CE, FCC Class A, C-Tick, VCCI, BSMI, CCC

—

FCC A, CE A, VCCI, C-Tick, BSMI, CCC

—

Form factor

—

LED indicators

Yes

Activity, Fan fail, Link, Power, Speed

Yes

Number of fans

—

2 fan(s)

—

2 fan(s)

—

Product colour

Black

Black, Grey

Black

Rack mounting

Yes

Safety

—

cUL, CB, CE, CCC, BSM

—

CCC, CE LVD, UL/cUL

cUL, LVD

Stackable

Yes

—

Yes

Certificates

Certification

—

IEC61000-4-5, RoHS

CE Class A

Protocols

Data link protocols

—

Management protocols

—

SNMP, NTPv3/v4, Telnet

—

SNMP, RMON

Weight & dimensions

Depth

210 mm

260 mm

430 mm

210 mm

126 mm

Height

44 mm

Weight

3.46 kg

3.79 kg

6.26 kg

—

950 g

Width

440 mm

441 mm

440 mm

280 mm

Optical fiber

Fiber ethernet cabling technology

—

1000BASE-X

—

Data transmission

Forwarding rate

77.4 Mpps

95.24 Mpps

77.4 Mpps

41.7 Mpps

14.88 Mpps

Jumbo frames

10000

12000

10000

9216

10000

Jumbo frames support

Yes

MAC address table

16000 entries

68000 entries

16000 entries

8000 entries

Number of IP interfaces

—

256

—

Number of queues

—

Number of static routes

—

Packet buffer memory

12 MB

4 MB

12 MB

1.5 MB

4.1 MB

Store-and-forward

Yes

—

Yes

Switching capacity

104 Gbit/s

128 Gbit/s

104 Gbit/s

56 Gbit/s

20 Gbit/s

Logistics data

Harmonized System (HS) code

—

85176990

—

85176990

Operational conditions

Heat dissipation

118.92 BTU/h

216.81 BTU/h

1634.01 BTU/h

850.58 BTU/h

279.59 BTU/h

Operating relative humidity (H-H)

0 - 95%

10 - 95%

0 - 95%

10 - 90%

0 - 95%

Operating temperature (T-T)

-5 - 50 °C

Storage relative humidity (H-H)

0 - 95%

5 - 95%

0 - 95%

5 - 90%

0 - 95%

Storage temperature (T-T)

-40 - 70 °C

-20 - 70 °C

Technical details

Master (outer) cases per pallet (air)

—

32 pc(s)

—

24 pc(s)

36 pc(s)

Master (outer) cases per pallet (sea)

—

32 pc(s)

—

40 pc(s)

54 pc(s)

Pallet gross length

—

110 cm

—

110 cm

Pallet gross weight (air)

—

553.5 kg

—

419.7 kg

436.1 kg

Pallet gross weight (sea)

—

553.5 kg

—

682.9 kg

644.9 kg

Pallet gross width

—

120 cm

—

120 cm

Pallet height (air)

—

193.5 cm

—

131.4 cm

140.3 cm

Pallet height (sea)

—

193.5 cm

—

2.1 m

2.04 m

Products per pallet (air)

—

96 pc(s)

—

72 pc(s)

180 pc(s)

Products per pallet (sea)

—

96 pc(s)

—

120 pc(s)

270 pc(s)

Products per shipping (inner) case

—

3 pc(s)

—

3 pc(s)

5 pc(s)

Shipping (inner) case gross weight

—

16.7 kg

—

16.4 kg

11.6 kg

Shipping (inner) case height

—

45 cm

—

39.3 cm

31.7 cm

Shipping (inner) case length

—

54.9 cm

—

53.9 cm

38.2 cm

Shipping (inner) case net weight

—

13.5 kg

—

15.6 kg

10.8 kg

Shipping (inner) case width

—

29.6 cm

—

29.5 cm

34.6 cm

Multicast features

Multicast Listener Discovery (MLD) snooping

—

MLD v1, MLD v2

—

Multicast MAC address table

—

68000 entries

—

Multicast support

Yes

Packaging data

Package depth

—

528 mm

—

521 mm

331 mm

Package height

—

91 mm

—

92 mm

72 mm

Package weight

—

5.29 kg

—

5.18 kg

2.17 kg

Package width

—

415 mm

—

365 mm

288 mm

Other features

Packet transfer speed

—

14.9 Mp/s

Power LED

—

Yes

Power over Ethernet (PoE)

Yes

Power over Ethernet (PoE) ports quantity

—

Power over Ethernet plus (PoE+) ports quantity

—

Total Power over Ethernet (PoE) budget

—

65 W
