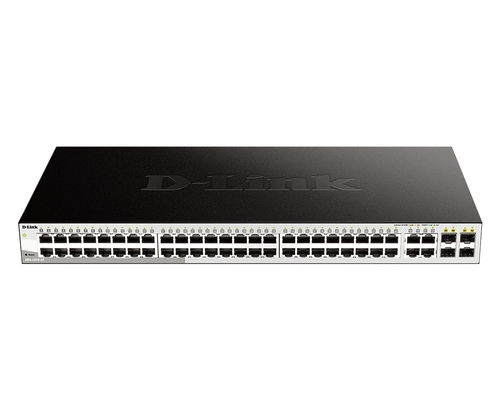

D-Link Web Smart DGS-1210-52

Name: D-Link Web Smart DGS-1210-52
Brand: D-Link
SKU: DGS-1210-52
Price: 330.28 GBP
Availability: InStock

Manuf P/N: DGS-1210-52

APAXON#: 2530587

EAN: 790069373138

48 10/100/1000 Base-T port with 4 x 1000Base-T /SFP ports
Weight: 5.34 KG

Managed L2 Web-based management
Quality of Service (QoS) support Configuring Location Settings (CLI)
Basic switching RJ-45 Ethernet ports quantity: 48
10BASE-T, 100BASE-TX, 1000BASE-T
MAC address table: 16000 entries Switching capacity: 104 Gbit/s

UK Stock8

ConditionNew

Price £ 330.28

Price inc. VAT

£ 396.34

Quantity

Notify me when available.

Sales & Technical Enquiries

Phone: 0161 464 9941Email: sales@apaxon.co.uk

Product Summary

The DGS-1210-10/10P/20/28 features a fanless design that allows for quieter operation and helps to extend the device's lifetime. While the DGS-1210-28P/52/52P feature a smart fan design that powers on after the switch reaches a certain temperature, saving energy and cutting costs without sacrificing performance.

Extended Specification

Management features

Switch type

Managed

Switch layer

Quality of Service (QoS) support

Yes

Web-based management

Yes

ARP inspection

Yes

Configuring Location Settings (CLI)

Yes

System event log

Yes

MIB support

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Installed SFP modules quantity

Installed SFP+ modules quantity

Combo SFP ports quantity

Power connector

AC-in jack

Network

Networking standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x

Copper ethernet cabling technology

10BASE-T, 100BASE-TX, 1000BASE-T

Port mirroring

Yes

Full duplex

Yes

Flow control support

Yes

Link aggregation

Yes

Broadcast storm control

Yes

Auto MDI/MDI-X

Yes

Spanning tree protocol

Yes

Head-of-line (HOL) blocking

Yes

Auto-negotiation

Yes

VLAN support

Yes

Number of VLANs

256

Data transmission

MAC address table

16000 entries

Switching capacity

104 Gbit/s

Forwarding rate

77.4 Mpps

Store-and-forward

Yes

Jumbo frames support

Yes

Jumbo frames

10000

Packet buffer memory

12 MB

MAC address table

16000 entries entries

Switching capacity

104 Gbit/s Gbit/s

Forwarding rate

77.4 Mpps Mpps

Packet buffer memory

12 MB MB

Security

DHCP features

DHCP server, DHCP client

Access Control List (ACL)

Yes

IGMP snooping

Yes

MAC address filtering

Yes

Loop protection

Yes

Multicast features

Multicast support

Yes

Design

Rack mounting

Yes

Stackable

Yes

Form factor

Product colour

Black

LED indicators

Yes

Performance

Memory type

DDR3-SDRAM

Internal memory

256 MB

Flash memory

32 MB

Noise level

0 dB

Mean time between failures (MTBF)

400667 h

Internal memory

256 MB MB

Flash memory

32 MB MB

Noise level

0 dB dB

Mean time between failures (MTBF)

400667 h h

Power

Power source

Power supply included

Yes

Voltage Required

AC 120/230 V (50/60 Hz)

AC input frequency

50/60 Hz

Power consumption (max)

34.85 W

AC input voltage

100 - 240 V V

AC input frequency

50/60 Hz Hz

Power consumption (max)

34.85 W W

Power over Ethernet (PoE)

Operational conditions

Operating temperature (T-T)

-5 - 50 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Heat dissipation

118.92 BTU/h

Operating temperature (T-T)

-5 - 50 °C °C

Storage temperature (T-T)

-40 - 70 °C °C

Operating relative humidity (H-H)

0 - 95% %

Storage relative humidity (H-H)

0 - 95% %

Heat dissipation

118.92 BTU/h BTU/h

Weight & dimensions

Width

440 mm

Depth

210 mm

Height

44 mm

Weight

3.46 kg

Width

440 mm mm

Depth

210 mm mm

Height

44 mm mm

Weight

3.46 kg kg

General

Subtype

Gigabit Ethernet

Device Type

Switch - 48 ports - Managed

Ports

48 x 10/100/1000 + 4 x Gigabit SFP

Remote Management Protocol

SNMP 1, SNMP 2, Telnet, SNMP 3, SNMP 2c, HTTP, CLI

Enclosure Type

Desktop, rack-mountable 1U

Performance

Switching capacity: 104 Gbps Forwarding performance: 77.4 Mpps

Status Indicators

Port transmission speed, power, link OK, link/activity

Features

Flow control, full duplex capability, Layer 2 switching, DHCP support, auto-negotiation, BOOTP support, RARP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, WRR queuing, store and forward, MAC address filtering, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, STP support, RSTP support, TFTP support, ACL support, QoS, DHCP server, Safeguard Engine, D-Link Green Technology
