Compare D-Link Hubs & Switches
Comparing 5 products side-by-side — specifications, pricing and stock. Showing D-Link products in the Hubs & Switches category.

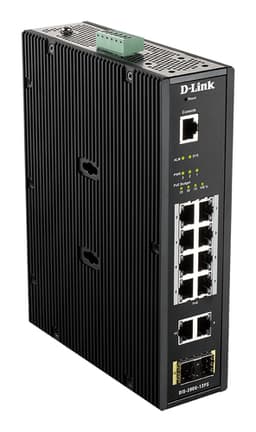

| Specification | Current product D-Link D-Link DIS 200G-12PS - Switch - Managed - 10 x 10/100/1000 (8 PoE+) + 2 x SFP - DIN rail mountable, wall-mountable - PoE+ (240 W) - AC 120/230 V / DC 46 - 54 VDIS-200G-12PS £451.11 £541.33 inc VAT | ||||
|---|---|---|---|---|---|
| General | |||||
| Capacity | — | Queues: 8 | — | — | — |
| Device Type | — | Switch - 8 ports - unmanaged | Switch - 8 ports | — | Switch - 5 ports |
| Enclosure Type | — | Desktop | Desktop | — | Desktop |
| Features | — | Flow control, auto-uplink (auto MDI/MDI-X), store and forward, QoS, D-Link Green Technology, fanless, metal housing, VoIP support, NAS support, SOHO, EEE | Auto-negotiation, auto-uplink (auto MDI/MDI-X) | — | Flow control, auto-sensing per device, auto-negotiation, packet filtering, store and forward |
| Performance | — | Switching capacity: 16 Gbps, Packet filter/forwarding rate (10 Mbps): 14880 pps, Packet filter/forwarding rate (100 Mbps): 148800 pps, Packet filter/forwarding rate (1000 Mbps):: 1488000 pps, Forwarding rate: 11.9 Mpps | — | — | — |
| Ports | — | 8 x 10/100/1000 | — | — | 5 x 10/100/1000 |
| Status Indicators | — | Power, link/activity | — | — | Power, link/activity |
| Subtype | — | Gigabit Ethernet | Fast Ethernet | — | Gigabit Ethernet |
| Power | |||||
| Battery capacity | — | — | — | 3000 mAh | — |
| DC input voltage | 46 - 54 V | 5 V | — | — | — |
| Input current | — | 1 A | 1 A | — | 1 A |
| Input voltage | — | — | 5 V | — | 5 V |
| Power consumption (max) | 260 W | 4.31 W | 2.8 W | — | — |
| Power consumption (typical) | — | — | — | — | 2.1 W |
| Power source | — | DC | DC | — | — |
| Power source type | — | — | — | Battery | — |
| Power supply included | — | Yes | — | — | — |
| Network | |||||
| 10G support | No | No | No | — | Yes |
| Active link detection | Yes | — | — | — | — |
| Auto MDI/MDI-X | Yes | Yes | Yes | — | Yes |
| Auto-negotiation | Yes | — | — | — | — |
| Broadcast storm control | Yes | — | — | — | — |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T | 10BASE-T, 100BASE-TX, 1000BASE-T | 100BASE-TX, 10BASE-T | — | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Flow control support | Yes | Yes | Yes | — | Yes |
| Full duplex | Yes | — | Yes | — | Yes |
| Half duplex | — | — | Yes | — | — |
| Link aggregation | Yes | — | — | — | — |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x | IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x | — | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Number of VLANs | 4094 | — | — | — | — |
| Port mirroring | Yes | — | — | — | — |
| Spanning tree protocol | Yes | — | — | — | — |
| Virtual LAN features | Voice VLAN, Tagged VLAN, Port-based VLAN | — | — | — | — |
| VLAN support | Yes | — | — | — | — |
| Mobile network | |||||
| 3G standards | — | — | — | WCDMA | — |
| 4G standard | — | — | — | LTE | — |
| Data network | — | — | — | 4G, LTE | — |
| Security | |||||
| Authentication | Port-based authentication | — | — | — | — |
| Authentication type | RADIUS | — | — | — | — |
| DHCP features | DHCP client | — | — | — | — |
| Firewall | — | — | — | Yes | — |
| IGMP snooping | Yes | — | — | — | — |
| MAC address filtering | — | — | Yes | — | Yes |
| Queue scheduling algorithms | SPQ, Weighted Round Robin (WRR) | — | — | — | — |
| Security algorithms | 802.1x RADIUS, SSL/TLS | — | — | WPA | — |
| Ports & interfaces | |||||
| Basic switching RJ-45 Ethernet ports quantity | 10 | 8 | 8 | — | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) | Gigabit Ethernet (10/100/1000) | — | — | — |
| Console port | RJ-45 | — | — | — | — |
| Gigabit Ethernet (copper) ports quantity | 10 | — | — | — | — |
| Installed SFP modules quantity | 0 | 0 | — | — | — |
| Installed SFP+ modules quantity | 0 | 0 | — | — | — |
| Power connector | — | — | DC-in jack | — | DC-in jack |
| SFP module slots quantity | 2 | — | — | — | — |
| USB 2.0 ports quantity | — | — | — | 1 | — |
| USB port | — | — | — | Yes | — |
| USB port type | — | — | — | USB Type-C | — |
| Certificates | |||||
| Certification | CE, FCC, BSMI EN 61000-4-2 ESD EN 61000-4-3 RS EN 61000-4-4 EFT EN 61000-4-5 EN 61000-4-6 CS EN 61000-4-8 IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6 | CE; FCC; RoHS | — | — | FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB, RoHS |
| Compliance certificates | — | CE, RoHS | C-TICK, CB, CE, Federal Communications Commission (FCC), ICES, RoHS, VCCI, cUL | — | — |
| Management features | |||||
| Configuring Location Settings (CLI) | Yes | — | — | — | — |
| Quality of Service (QoS) support | Yes | Yes | Yes | — | Yes |
| Switch layer | L2 | — | — | — | — |
| Switch type | Managed | Unmanaged | Unmanaged | — | Unmanaged |
| System event log | Yes | — | — | — | — |
| Web-based management | Yes | — | — | — | — |
| Other features | |||||
| Connectivity technology | — | — | — | — | Wired |
| Data transfer rate | — | — | 200 Mbit/s | — | 2000 Mbit/s |
| Dimensions (WxDxH) | — | — | — | — | 100 x 98 x 28 mm |
| Weight & dimensions | |||||
| Depth | 53 mm | 67 mm | 102 mm | 63 mm | — |
| Height | 210 mm | 26 mm | 28 mm | 13.3 mm | — |
| Weight | 1.76 kg | 240 g | 412 g | 102 g | 286 g |
| Width | 171.2 mm | 140 mm | 162 mm | 103 mm | — |
| Design | |||||
| Device type | — | — | — | Cellular network modem | — |
| DIN rail mounting | Yes | — | — | — | — |
| Electromagnetic compatibility | CISPR 22, FCC Part 15B Class A | — | — | — | — |
| Form factor | — | Desktop | — | — | — |
| Housing material | Metal | Metal | Metal | — | Metal |
| International Protection (IP) code | IP30 | — | — | — | — |
| LED indicators | Yes | Activity, Link, Power | Link, Power | Yes | — |
| Market positioning | — | — | — | Portable | — |
| Number of fans | 0 fan(s) | — | — | — | — |
| Product colour | Black | Black | Black | White | Black |
| Rack mounting | Yes | No | No | — | No |
| Reset button | — | — | — | Yes | — |
| Stackable | — | No | No | — | — |
| Wall mountable | Yes | — | — | — | — |
| Optical fiber | |||||
| Fiber ethernet cabling technology | 1000BASE-X | — | — | — | — |
| Data transmission | |||||
| Forwarding rate | 17.85 Mpps | 11.9 Mpps | — | — | — |
| Jumbo frames | 9216 | 9216 | 1536 | — | — |
| Jumbo frames support | Yes | Yes | Yes | — | Yes |
| MAC address table | 8000 entries | 4000 entries | 1000 entries | — | 2000 entries |
| Maximum data transfer rate | — | — | 0.1 Gbit/s | — | 1 Gbit/s |
| Number of queues | — | 8 | — | — | — |
| Packet buffer memory | — | — | 0.768 MB | — | 0.128 MB |
| Packet forwarding rate (1 Gbps) | — | 1488000 pps | — | — | — |
| Packet forwarding rate (10 Mbps) | — | 14880 pps | — | — | — |
| Packet forwarding rate (100 Mbps) | — | 148800 pps | 148.8 pps | — | — |
| Store-and-forward | Yes | Yes | Yes | — | Yes |
| Supported data transfer rates | — | — | 10/100 Mbps | — | 10/100/1000 Mbps |
| Switching capacity | 24 Gbit/s | 16 Gbit/s | 1.6 Gbit/s | — | 10 Gbit/s |
| Logistics data | |||||
| Harmonized System (HS) code | 85176990 | 85176990 | 85176990 | — | 85176990 |
| Operational conditions | |||||
| Heat dissipation | 887.16 BTU/h | 14.7 BTU/h | 9.548 BTU/h | — | — |
| Operating relative humidity (H-H) | 0 - 95% | 10 - 90% | 10 - 90% | 10 - 95% | 10 - 90% |
| Operating temperature (T-T) | -40 - 65 °C | 0 - 40 °C | 0 - 50 °C | -10 - 40 °C | 0 - 50 °C |
| Storage relative humidity (H-H) | 0 - 95% | 5 - 95% | 5 - 90% | 10 - 95% | 5 - 90% |
| Storage temperature (T-T) | -40 - 85 °C | -10 - 65 °C | -10 - 70 °C | -40 - 70 °C | -10 - 70 °C |
| Protocols | |||||
| Management protocols | SNMP v1/v2c/v3, SNTP, Telnet | — | — | — | — |
| Technical details | |||||
| Master (outer) cases per pallet (air) | — | — | 48 pc(s) | — | 75 pc(s) |
| Master (outer) cases per pallet (sea) | — | — | 48 pc(s) | — | 75 pc(s) |
| Pallet gross length | — | — | 102 cm | — | 110 cm |
| Pallet gross weight (air) | — | — | 357.5 kg | — | 452.5 kg |
| Pallet gross weight (sea) | — | — | 357.5 kg | — | 452.5 kg |
| Pallet gross width | — | — | 122 cm | — | 120 cm |
| Pallet height (air) | — | — | 2.07 m | — | 2.04 m |
| Pallet height (sea) | — | — | 2.07 m | — | 2.04 m |
| Products per pallet (air) | — | — | 480 pc(s) | — | 750 pc(s) |
| Products per pallet (sea) | — | — | 480 pc(s) | — | 750 pc(s) |
| Products per shipping (inner) case | — | — | 10 pc(s) | — | 10 pc(s) |
| Shipping (inner) case gross weight | — | — | 7 kg | — | 5.7 kg |
| Shipping (inner) case height | — | — | 44.3 cm | — | 36.6 cm |
| Shipping (inner) case length | — | — | 37 cm | — | 33.5 cm |
| Shipping (inner) case net weight | — | — | 6.1 kg | — | 5 kg |
| Shipping (inner) case width | — | — | 26 cm | — | 23 cm |
| Performance | |||||
| Mean time between failures (MTBF) | 205689 h | 1402428 h | 511.323 h | — | 1688338 h |
| Multicast features | |||||
| Multicast support | Yes | — | — | — | — |
| Packaging data | |||||
| Package depth | — | — | 250 mm | — | 220 mm |
| Package height | — | — | 68 mm | — | 62 mm |
| Package weight | — | — | 610 g | — | 500 g |
| Package width | — | — | 208 mm | — | 170 mm |
| Power over Ethernet (PoE) | |||||
| Power over Ethernet (PoE) | Yes | No | No | — | No |
| Power over Ethernet (PoE) ports quantity | 8 | — | — | — | — |
| Power over Ethernet (PoE) power per port | 30 W | — | — | — | — |
| Total Power over Ethernet (PoE) budget | 240 W | — | — | — | — |
| Wireless LAN features | |||||
| Wi-Fi | — | — | — | Yes | — |
| Wi-Fi standards | — | — | — | 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax) | — |
| WLAN data transfer rates supported | — | — | — | 150 Mbit/s | — |
