Metal Housing 8p 10/100
Thumbnail 0
Thumbnail 1
Thumbnail 2
Thumbnail 3

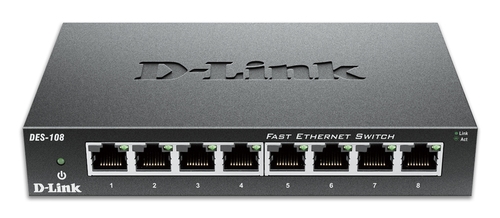

Metal Housing 8p 10/100

Manuf P/N: DES-108/B
APAXON#: 2422146
EAN: 790069368196
Metal Housing 8p 10/100
Weight: 0.72 KG
  • Unmanaged
  • Quality of Service (QoS) support
  • Basic switching RJ-45 Ethernet ports quantity: 8
  • 100BASE-TX, 10BASE-T
  • MAC address table: 1000 entries Switching capacity: 1.6 Gbit/s
  • DC
UK Stock67
ConditionNew
Price £ 12.31
Price inc. VAT
£ 14.77
Quantity
|

Sales & Technical Enquiries

Product Summary

D-Link's DES-105 and DES-108 Fast Ethernet switches provide a cost-effective way for small to medium sized businesses to create a small network and connect computers, wireless Access Points, IP cameras, network printers and other Ethernet devices quickly and easily without complicated configurations. These switches come with 5 or 8 Fast Ethernet ports with an auto-sensing function to detect the maximum speed of the connected devices, allowing you to run your network with the best possible performance. Their fanless design and solid metal housing makes them completely silent so they are ideal for offices, libraries or meeting rooms, and for industrial and hazardous environments like factories and warehouses. The DES-105 and DES-108 are designed with durability and performance in mind. Their sturdy metal housing will protect them against accidental harm, while helping to dissipate heat and to reduce stress on internal components. The visible LEDs allow for an easy reading of each port status, helping to troubleshoot connectivity problems. For a convenient placement, these switches come with a wall mounting kit and a slot for a Kensington security lock to protect them from theft. Despite being unmanaged, Plug and Play switches, the DES-105 and DES-108 are able to classify network traffic by assessing the 802.1p field in the Ethernet frames, and forward them out of its ports depending on their priority. This allows for a smooth integration of video, voice and data traffic without delays or loss of quality. The DES-105 and DES108 are part of D-Link Green, D-Link's eco-friendly technology, providing energy savings, reduced power consumption, and a longer product lifespan without sacrificing operational performance or functionality. These switches implement the 802.3az Energy Efficient Ethernet (EEE) standard, which can save a substantial amount of energy by detecting the port status, putting them in low-power, stand-by mode when no network traffic is detected. This helps businesses to save money by reducing their electricity bills with no compromise on performance.

Extended Specification

Weight & dimensions
Height
28 mm mm
Width
162 mm mm
Depth
102 mm mm
Weight
412 g g
Width
162 mm
Depth
102 mm
Height
28 mm
Weight
412 g
Technical details
Pallet gross length
102 cm cm
Pallet gross width
122 cm cm
Pallet height (air)
2.07 m m
Pallet gross weight (sea)
357.5 kg kg
Master (outer) cases per pallet (sea)
48 pc(s) pc(s)
Products per pallet (sea)
480 pc(s) pc(s)
Pallet height (sea)
2.07 m m
Shipping (inner) case height
44.3 cm cm
Shipping (inner) case width
26 cm cm
Shipping (inner) case length
37 cm cm
Shipping (inner) case net weight
6.1 kg kg
Products per shipping (inner) case
10 pc(s) pc(s)
Pallet gross weight (air)
357.5 kg kg
Master (outer) cases per pallet (air)
48 pc(s) pc(s)
Products per pallet (air)
480 pc(s) pc(s)
Shipping (inner) case gross weight
7 kg kg
Shipping (inner) case height
44.3 cm
Shipping (inner) case width
26 cm
Shipping (inner) case length
37 cm
Shipping (inner) case net weight
6.1 kg
Products per shipping (inner) case
10 pc(s)
Pallet gross weight (air)
357.5 kg
Master (outer) cases per pallet (air)
48 pc(s)
Products per pallet (air)
480 pc(s)
Pallet gross length
102 cm
Pallet gross width
122 cm
Pallet height (air)
2.07 m
Pallet gross weight (sea)
357.5 kg
Master (outer) cases per pallet (sea)
48 pc(s)
Products per pallet (sea)
480 pc(s)
Pallet height (sea)
2.07 m
Shipping (inner) case gross weight
7 kg
Data transmission
MAC address table
1000 entries entries
Switching capacity
1.6 Gbit/s Gbit/s
Maximum data transfer rate
0.1 Gbit/s Gbit/s
Packet forwarding rate (100 Mbps)
148.8 pps pps
Packet buffer memory
0.768 MB MB
MAC address table
1000 entries
Switching capacity
1.6 Gbit/s
Supported data transfer rates
10/100 Mbps
Store-and-forward
Yes
Maximum data transfer rate
0.1 Gbit/s
Jumbo frames support
Yes
Jumbo frames
1536
Packet forwarding rate (100 Mbps)
148.8 pps
Packet buffer memory
0.768 MB
Performance
Mean time between failures (MTBF)
511.323 h h
Mean time between failures (MTBF)
511.323 h
Power
Input current
1 A A
Input voltage
5 V V
Power consumption (max)
2.8 W W
Power source
DC
Input current
1 A
Input voltage
5 V
Power consumption (max)
2.8 W
Other features
Data transfer rate
200 Mbit/s Mbit/s
Data transfer rate
200 Mbit/s
Operational conditions
Operating temperature (T-T)
0 - 50 °C °C
Storage temperature (T-T)
-10 - 70 °C °C
Operating relative humidity (H-H)
10 - 90% %
Storage relative humidity (H-H)
5 - 90% %
Heat dissipation
9.548 BTU/h BTU/h
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-10 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Heat dissipation
9.548 BTU/h
Packaging data
Package width
208 mm mm
Package depth
250 mm mm
Package height
68 mm mm
Package weight
610 g g
Package width
208 mm
Package depth
250 mm
Package height
68 mm
Package weight
610 g
Management features
Switch type
Unmanaged
Quality of Service (QoS) support
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
8
Power connector
DC-in jack
Network
Networking standards
IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support
No
Copper ethernet cabling technology
100BASE-TX, 10BASE-T
Full duplex
Yes
Half duplex
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
Security
MAC address filtering
Yes
Design
Rack mounting
No
Stackable
No
Product colour
Black
Housing material
Metal
LED indicators
Link, Power
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Certificates
Compliance certificates
C-TICK, CB, CE, Federal Communications Commission (FCC), ICES, RoHS, VCCI, cUL
Logistics data
Harmonized System (HS) code
85176990
General
Enclosure Type
Desktop
Subtype
Fast Ethernet
Features
Auto-negotiation, auto-uplink (auto MDI/MDI-X)
Device Type
Switch - 8 ports
Ports
8 x 10/100
Metal Housing 8p 10/100
