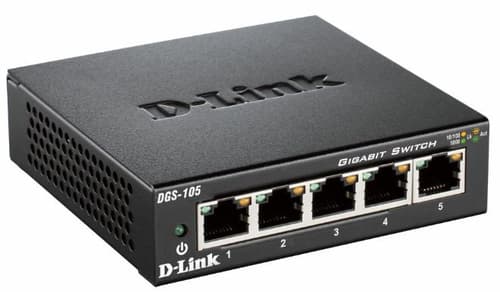

D-Link 5-port 10/100/1000 Gigabit Metal Housing Desktop Switch
Manuf P/N: DGS-105/B
APAXON#: 2421341
EAN: 0790069368219
D-Link 5-port 10/100/1000 Gigabit Metal Housing Desktop Switch
- Unmanaged
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 5
- 10G support 1000BASE-T, 100BASE-TX, 10BASE-T
- MAC address table: 2000 entries Switching capacity: 10 Gbit/s
Stock139
Price £25.96
Quantity
|
Similar Products
Product Summary
D-Link DGS-105 Unmanaged Black
Extended Specification
Group 2944
Switch type
Unmanaged
Quality of Service (QoS) support
Yes
Group 763
Basic switching RJ-45 Ethernet ports quantity
5
Power connector
DC-in jack
Group 1141
Networking standards
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support
Yes
Copper ethernet cabling technology
1000BASE-T, 100BASE-TX, 10BASE-T
Full duplex
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
Group 2484
MAC address table
2000 entries
Switching capacity
10 Gbit/s
Supported data transfer rates
10/100/1000 Mbps
Store-and-forward
Yes
Maximum data transfer rate
1 Gbit/s
Jumbo frames support
Yes
Packet buffer memory
0.128 MB
Group 2482
MAC address filtering
Yes
Group 10881
Rack mounting
No
Product colour
Black
Housing material
Metal
Group 10882
Mean time between failures (MTBF)
1688338 h
Group 1142
Input current
1 A
Input voltage
5 V
Power consumption (typical)
2.1 W
Group 9999
Power over Ethernet (PoE)
No
Group 8343
Data transfer rate
2000 Mbit/s
Dimensions (WxDxH)
100 x 98 x 28 mm
Connectivity technology
Wired
Group 1143
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-10 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Group 1144
Weight
286 g
Group 2483
Package width
170 mm
Package depth
220 mm
Package height
62 mm
Package weight
500 g
Group 31974
Shipping (inner) case height
36.6 cm
Shipping (inner) case width
23 cm
Shipping (inner) case length
33.5 cm
Shipping (inner) case net weight
5 kg
Products per shipping (inner) case
10 pc(s)
Pallet gross weight (air)
452.5 kg
Master (outer) cases per pallet (air)
75 pc(s)
Products per pallet (air)
750 pc(s)
Pallet gross length
110 cm
Pallet gross width
120 cm
Pallet height (air)
2.04 m
Pallet gross weight (sea)
452.5 kg
Master (outer) cases per pallet (sea)
75 pc(s)
Products per pallet (sea)
750 pc(s)
Pallet height (sea)
2.04 m
Shipping (inner) case gross weight
5.7 kg
Group 41469
Certification
FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB, RoHS
Group 24990
Harmonized System (HS) code
85176990
