Compare Zyxel Hubs & Switches
Comparing 5 products side-by-side — specifications, pricing and stock. Showing Zyxel products in the Hubs & Switches category.

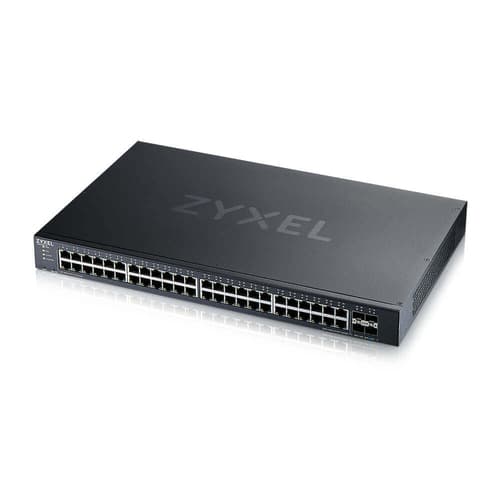

| Specification | Zyxel Zyxel GS1935 Series XGS1935-52HP - Switch - L3 Lite - smart - 48 x 10/100/1000 (PoE) + 4 x 10 Gigabit SFP+ (uplink) - rack-mountable - PoE+ (375 W)XGS1935-52HP-GB0101F £563.76 £676.51 inc VAT | ||||
|---|---|---|---|---|---|
| General | |||||
| Authentication Method | RADIUS | RADIUS, TACACS+ | — | — | — |
| Built-in Devices | — | — | — | — | Power on/off switch |
| Capacity | IPv4 forwarding table entries: 128 IPv6 forwarding table entries: 128 Routing tables: 8 IP interfaces: 8 Packet buffer size: 1.5 MB | — | — | — | Multicast groups: 128 |
| Device Type | Switch - 10 ports - L3 Lite - smart | Switch - 24 ports - smart | — | Switch - 5 ports - unmanaged | Switch - 5 ports - Managed |
| Enclosure Type | Desktop | Rack-mountable, wall-mountable | — | Desktop, wall-mountable | Desktop |
| Encryption Algorithm | SSL, SHA-2 | SSL | — | — | — |
| Features | Fanless, 2KV ESD Protector, 1KV surge protection, ESD Protector, IPv4 support, IPv6 support, VLAN support, static routing, port-based VLAN, Voice VLAN, MAC address authentication, LACP, Port Security, port isolation, MAC freeze, CPU protection, DHCP snooping, CoS, QoS, SPQ, WFQ, WRR, Storm Control, DSCP support, IGMP snooping, DHCPv6 relay, DHCP client, DAD, firmware upgradable, NTP server, MIB support, web GUI management portal, ZON | Flow control, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DoS attack prevention, port mirroring, store and forward, MAC address filtering, IPv6 support, half duplex mode, full duplex mode, firmware upgradable, QoS, LACP support, LLDP support, Port Security, DHCP client, dual firmware images, SPQ, NDP, CoS, ToS, Storm Control, MIB II, schedule PoE, Voice VLAN, LLDP-MED, Guest VLAN, EEE, WRR, VLAN Tagging, priority mapping, LAG | — | Flow control, full duplex capability, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, Quality of Service (QoS), fanless, 128KB packet buffer, loop prevention, Energy-Efficient Ethernet (EEE) | Flow control, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, store and forward, Broadcast Storm Control, firmware upgradable, wall mountable, QoS, fanless, 128KB packet buffer, Energy Efficient Ethernet, CoS, tagged VLAN, metal housing, Link Aggregation, WRR, LDF support |
| Performance | Switching capacity: 80 Gbps Forwarding rate: 59.5 Mpps | Switching capacity: 48 Gbps Forwarding performance: 35.7 Mpps Packet buffer size: 525 KB | — | Switching capacity: 10 Gbps | Switching capacity: 10 Gbps |
| Ports | 8 x 100/1000/2.5G + 2 x Gigabit SFP / 10 Gigabit SFP+ | 24 x 10/100/1000 (12 PoE+) | — | 4 x 10/100/1000 (PoE+) + 1 x 10/100/1000 | 1 x 10/100/1000 + 4 x 10/100/1000 (PoE+) |
| Remote Management Protocol | SSH-2, HTTPS, SNMP 1, SNMP 2c, SNMP 3, RMON 1, RMON 2, RMON 3, RMON 9, Syslog | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, NTP, ICMP, DHCP, IPv6, RSTP, TACACS+, RADIUS | — | — | HTTP |
| Routing Protocol | — | IGMPv2, IGMP, IGMPv3, MSTP, RSTP, STP | — | — | IGMPv2, IGMP, IGMPv3 |
| Status Indicators | — | Status | — | Power, PoE, link/activity | Port status, power, PoE |
| Subtype | 2.5 Gigabit Ethernet | Gigabit Ethernet | — | Gigabit Ethernet | Gigabit Ethernet |
| Power | |||||
| AC input frequency | 50/60 Hz | 50/60 Hz | — | — | — |
| AC input voltage | 100 - 240 V | 100 - 240 V | — | 100 - 240 V | — |
| Output current | — | — | — | — | 1.3 A |
| Power consumption (max) | 13.13 W | 166.5 W | — | — | 72 W |
| Power source | AC | AC | — | — | — |
| Power supply included | Yes | Yes | — | — | — |
| Voltage Required | AC 100-240 V (50/60 Hz) | AC 120/230 V (50/60 Hz) | — | AC 120/230 V (50/60 Hz) | — |
| Network | |||||
| 10G support | Yes | No | — | No | No |
| Auto MDI/MDI-X | — | Yes | — | Yes | Yes |
| Broadcast storm control | — | — | — | — | Yes |
| Cable types supported | — | Cat5, Cat5e | — | — | — |
| Ethernet LAN data rates | — | 10,100,1000 Mbit/s | — | — | — |
| Flow control support | — | Yes | — | Yes | — |
| Full duplex | — | Yes | — | Yes | — |
| Link aggregation | — | Yes | — | — | Yes |
| MAC address auto-learning supported | — | Yes | — | — | — |
| Networking standards | IEEE 802.1p, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3z | IEEE 802.1D, IEEE 802.1ab, IEEE 802.1af, IEEE 802.1s, IEEE 802.1w, IEEE 802.3at, IEEE 802.3az, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x | — | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x | IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Port mirroring | — | Yes | — | — | Yes |
| Spanning tree protocol | — | No | — | — | — |
| Virtual LAN features | MAC address-based VLAN, Port-based VLAN, Voice VLAN | Tagged VLAN, VLAN Identifier ( VLAN ID), Voice VLAN | — | — | Port-based VLAN |
| VLAN support | Yes | Yes | — | — | — |
| Security | |||||
| Authentication type | RADIUS | HWTACACS+, IEEE 802.1x, RADIUS | — | — | — |
| DHCP features | DHCP client, DHCP relay, DHCP snooping | DHCP client | — | — | DHCP client |
| IGMP snooping | Yes | Yes | — | — | Yes |
| MAC address filtering | Yes | Yes | — | — | — |
| Password protection | — | Yes | — | — | — |
| Security algorithms | SNMP, SNMPv2, SNMPv3 | 802.1x RADIUS | — | — | — |
| SSH/SSL support | Yes | Yes | — | — | — |
| Static port security | — | Yes | — | — | — |
| Ports & interfaces | |||||
| Basic switching RJ-45 Ethernet ports quantity | 8 | 24 | — | 5 | 5 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) | Gigabit Ethernet (10/100/1000) | — | Gigabit Ethernet (10/100/1000) | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 | 0 | — | — | — |
| Installed SFP+ modules quantity | 0 | 0 | — | — | — |
| Power connector | — | AC-in jack | — | — | — |
| SFP+ module slots quantity | 2 | — | — | — | — |
| Packaging content | |||||
| Cables included | AC | AC | — | — | — |
| Manual | — | Yes | — | — | — |
| Quick start guide | — | Yes | — | Yes | — |
| User guide | — | Yes | — | — | — |
| Certificates | |||||
| Certification | — | — | — | CE, FCC, BSMI, EAC | CE, FCC, C-Tick, Class A |
| Weight & dimensions | |||||
| Depth | 104 mm | 230 mm | — | 75 mm | 84 mm |
| Height | 27 mm | 44 mm | — | 26 mm | 26 mm |
| Weight | 780 g | 2.48 kg | — | 235 g | 392 g |
| Width | 250 mm | 330 mm | — | 171 mm | 193 mm |
| Performance | |||||
| Firmware upgradeable | Yes | — | — | — | Yes |
| Flash memory | 32 MB | — | — | — | — |
| Internal memory | 256 MB | — | — | — | — |
| Mean time between failures (MTBF) | 646.958 h | — | — | — | — |
| Noise level | — | 26 dB | — | — | — |
| Data transmission | |||||
| Forwarding rate | 59.5 Mpps | 35.7 Mpps | — | — | — |
| Jumbo frames | 12000 | 9000 | — | 9216 | — |
| Jumbo frames support | Yes | Yes | — | Yes | Yes |
| MAC address table | 16000 entries | 8000 entries | — | 2048 entries | 2000 entries |
| Packet buffer memory | 1.5 MB | 0.525 MB | — | — | 0.1 MB |
| Store-and-forward | — | Yes | — | — | — |
| Switching capacity | 80 Gbit/s | 48 Gbit/s | — | 10 Gbit/s | 10 Gbit/s |
| Logistics data | |||||
| Harmonized System (HS) code | — | — | — | 85176990 | 85176990 |
| Design | |||||
| LED indicators | Yes | — | — | Activity, Link, PoE, Power | Link, PoE, Power |
| On/off switch | — | — | — | — | Yes |
| Product colour | — | Black | — | Silver | Grey |
| Rack mounting | No | Yes | — | No | No |
| Reset button | — | Yes | — | — | Yes |
| Safety | — | — | — | — | LVD EN60950-1 |
| Stackable | — | Yes | — | — | No |
| Management features | |||||
| MIB support | — | RFC 1213 MIB II RFC 2819 RMON (group 1, 2, 3, 9) RFC 1215 generic traps RFC 1493 bridge Zyxel private common MIB | — | — | — |
| Quality of Service (QoS) support | Yes | Yes | — | Yes | Yes |
| Switch layer | L2 | L2 | — | — | — |
| Switch type | Managed | Managed | — | Unmanaged | Managed |
| Web-based management | — | — | — | — | Yes |
| Multicast features | |||||
| Multicast features | Multicast forwarding | — | — | — | — |
| Multicast support | Yes | Yes | — | — | Yes |
| Number of multicast groups filtered | — | — | — | — | 20 |
| Operational conditions | |||||
| Operating relative humidity (H-H) | 5 - 95% | — | — | 10 - 90% | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C | — | — | 0 - 40 °C | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 95% | — | — | 10 - 90% | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C | — | — | -40 - 70 °C | -40 - 70 °C |
| Packaging data | |||||
| Package depth | — | — | — | 132 mm | 132 mm |
| Package height | — | — | — | 78 mm | 78 mm |
| Package type | — | — | — | Box | Box |
| Package weight | — | — | — | 834 g | 950 g |
| Package width | — | — | — | 210 mm | 210 mm |
| Power over Ethernet (PoE) | |||||
| Power over Ethernet (PoE) | No | Yes | — | Yes | Yes |
| Power over Ethernet (PoE) ports quantity | — | 12 | — | — | — |
| Power over Ethernet (PoE) power per port | — | — | — | 30 W | — |
| Power over Ethernet plus (PoE+) ports quantity | — | — | — | 4 | 4 |
| Total Power over Ethernet (PoE) budget | — | 130 W | — | 60 W | 60 W |
