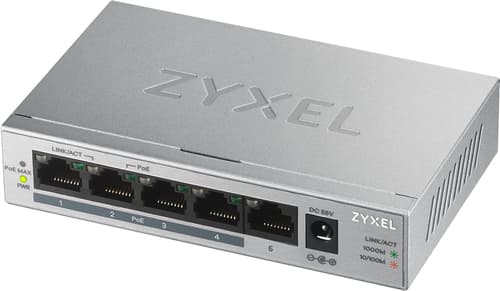

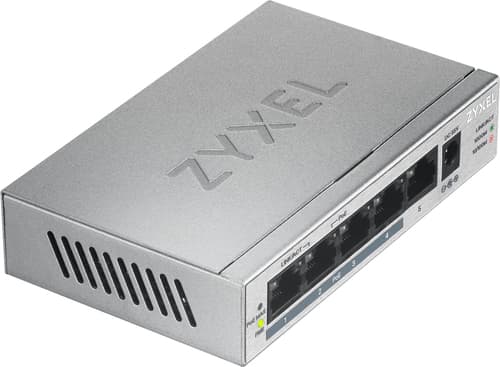

Zyxel GS1005HP - Switch - unmanaged
Switch
unmanaged
4 x 10/100/1000 (PoE+) + 1 x 10/100/1000
desktop, wall-mountable
PoE (60 W)
Weight: 0.88 KG
- 5-port PoE/PoE+ gigabit switch with a 60w power budget

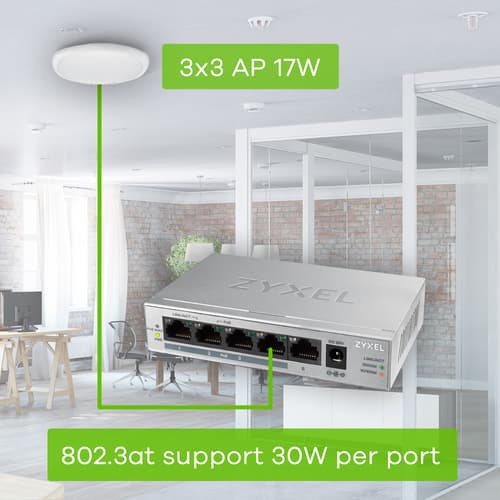

- Features 4 ports that support industry standard 802.3af and 802.3at PoE and PoE+ Up to 30 watts per port (60 watt total budget)

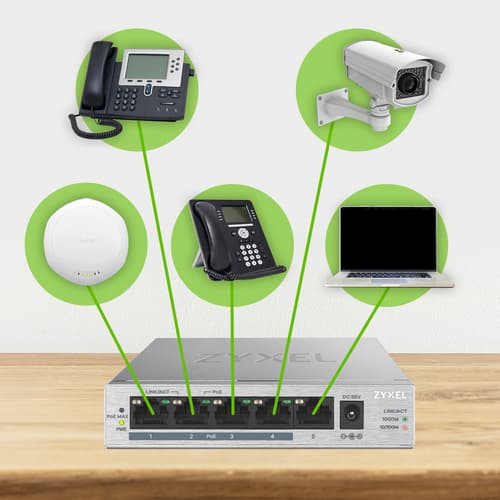

- Perfect for small offices, compatible with IP Cameras, IP Phones, Wireless Access Points and other PoE devices

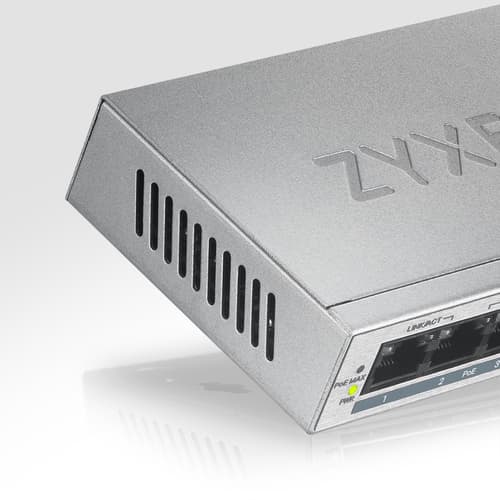

- Fanless design for silent operation without the noise of some other PoE solutions

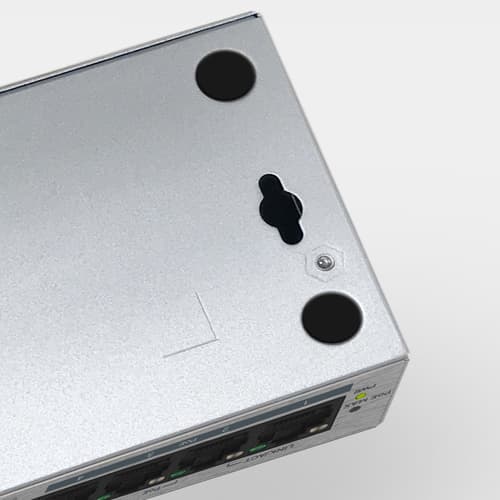

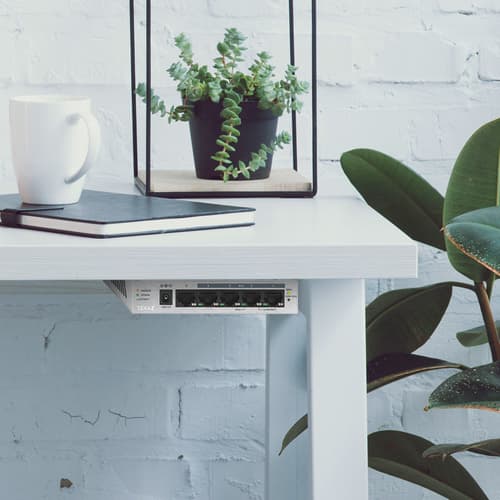

- Rugged metal design can handle the toughest environments, can be mounted on a wall or desktop
- Unmanaged switch offering true plug and play installation and use. No GUI or installation software
Similar Products
Overview
The Zyxel GS1005HP Gigabit Unmanaged PoE Switch is equipped with 5 Gigabit Ethernet ports, 4 of which are PoE ports that can deliver up to 60 w of total PoE budget. The GS1005HP can easily connect with PoE ready devices to your network with plug-and-play design and provides power-saving benefits without compromising performance. The GS1005HP fills a long-standing hole in the market for unmanaged PoE switches that feature the 802.3at standard, have a high power budget and are affordable for SOHOs and small businesses.
Specifications
Weight & dimensions
- Weight
- 235 g g
- Width
- 171 mm
- Depth
- 75 mm
- Height
- 26 mm
- Weight
- 235 g
- Width
- 171 mm mm
- Depth
- 75 mm mm
- Height
- 26 mm mm
Management features
- Switch type
- Unmanaged
- Quality of Service (QoS) support
- Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity
- 5
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
Network
- Networking standards
- IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
- 10G support
- No
- Full duplex
- Yes
- Flow control support
- Yes
- Auto MDI/MDI-X
- Yes
Data transmission
- MAC address table
- 2048 entries
- Switching capacity
- 10 Gbit/s
- Jumbo frames support
- Yes
- Jumbo frames
- 9216
- MAC address table
- 2048 entries entries
- Switching capacity
- 10 Gbit/s Gbit/s
Design
- Rack mounting
- No
- Product colour
- Silver
- LED indicators
- Activity, Link, PoE, Power
Power
- AC input voltage
- 100 - 240 V
- Voltage Required
- AC 120/230 V (50/60 Hz) V
Power over Ethernet (PoE)
- Power over Ethernet (PoE)
- Yes
- Power over Ethernet plus (PoE+) ports quantity
- 4
- Power over Ethernet (PoE) power per port
- 30 W
- Total Power over Ethernet (PoE) budget
- 60 W
- Power over Ethernet (PoE) power per port
- 30 W W
- Total Power over Ethernet (PoE) budget
- 60 W W
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -40 - 70 °C
- Operating relative humidity (H-H)
- 10 - 90%
- Storage relative humidity (H-H)
- 10 - 90%
- Operating temperature (T-T)
- 0 - 40 °C °C
- Storage temperature (T-T)
- -40 - 70 °C °C
- Operating relative humidity (H-H)
- 10 - 90% %
- Storage relative humidity (H-H)
- 10 - 90% %
Packaging content
- Quick start guide
- Yes
Packaging data
- Package type
- Box
- Package width
- 210 mm
- Package depth
- 132 mm
- Package height
- 78 mm
- Package weight
- 834 g
- Package width
- 210 mm mm
- Package depth
- 132 mm mm
- Package height
- 78 mm mm
- Package weight
- 834 g g
Certificates
- Certification
- CE, FCC, BSMI, EAC
Logistics data
- Harmonized System (HS) code
- 85176990
General
- Subtype
- Gigabit Ethernet
- Device Type
- Switch - 5 ports - unmanaged
- Status Indicators
- Power, PoE, link/activity
- Enclosure Type
- Desktop, wall-mountable
- Ports
- 4 x 10/100/1000 (PoE+) + 1 x 10/100/1000
- Performance
- Switching capacity: 10 Gbps
- Features
- Flow control, full duplex capability, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, Quality of Service (QoS), fanless, 128KB packet buffer, loop prevention, Energy-Efficient Ethernet (EEE)
