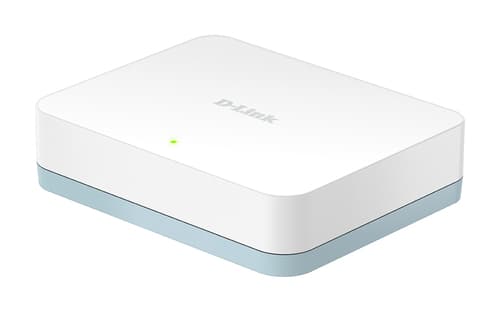

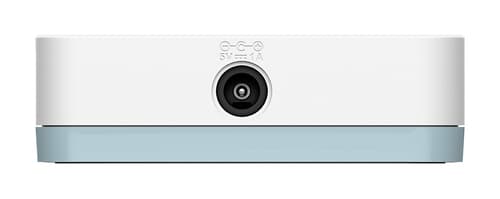

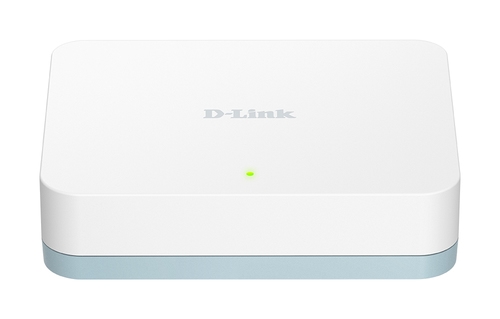

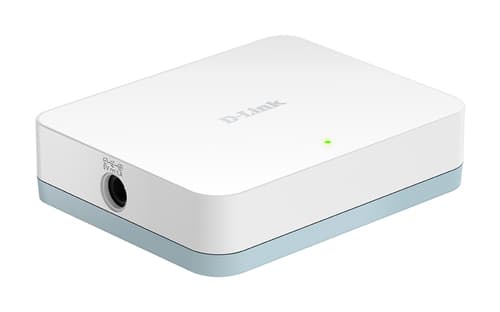

D-Link 5-port Gigabit Desktop Switch
Weight: 0.46 KG
- Unmanaged L2
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 5
- MAC address table: 8000 entries Switching capacity: 10 Gbit/s
- Five Gigabit Ethernet LAN ports for high-speed wired connections
- Cable Diagnostics Function notifies users of cable conditions through product LEDs Green Ethernet
- Reduces power to a port when no link is detected
- Adjust power to a port by detecting the length of the connected Ethernet cable
Similar Products
Overview
Get the blazing speed of Gigabit Ethernet with the D-Link GigaExpress DGS-1005D, a 5-port 10/100/1000Mbps Gigabit Switch that delivers power, performance, and reliability in one cost-effective, space-saving design. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly. The D-Link DGS-1005D 10/100/1000 Mbps Gigabit Switch features a non-blocking switching architecture that filters and forwards packets at full wire-speed for maximum throughput. An 8, 000 MAC address table provides scalability for even the largest networks. Address learning and aging, 802.3x Flow Control for full duplex mode, and back pressure flow control for half-duplex mode alleviates traffic congestion and ensures reliable data transmission. Designed using industry standards, it is compatible with virtually all 10, 100, and 1000Mbps Ethernet devices and other vendor equipment. The D-Link DGS-1005D 10/100/1000 Mbps Gigabit Switch protects your existing network investments while providing you with a straightforward migration path to faster Gigabit speeds. The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. It also features diagnostic LEDs which display status and activity, allowing you to quickly detect and correct problems on the network.
Specifications
Data transmission
- Switching capacity
- 10 Gbit/s Gbit/s
- Maximum data transfer rate
- 1 Gbit/s Gbit/s
- Packet buffer memory
- 0.112 MB MB
- MAC address table
- 8000 entries entries
- MAC address table
- 8000 entries
- Switching capacity
- 10 Gbit/s
- Maximum data transfer rate
- 1 Gbit/s
- Jumbo frames support
- Yes
- Packet buffer memory
- 0.112 MB
Technical details
- Shipping (inner) case height
- 23.5 cm cm
- Shipping (inner) case width
- 25.3 cm cm
- Pallet gross width
- 120 cm cm
- Pallet height (air)
- 2.02 m m
- Pallet gross weight (sea)
- 411.6 kg kg
- Master (outer) cases per pallet (sea)
- 80 pc(s) pc(s)
- Products per pallet (sea)
- 1600 pc(s) pc(s)
- Shipping (inner) case length
- 43.2 cm cm
- Shipping (inner) case net weight
- 3.28 kg kg
- Products per shipping (inner) case
- 20 pc(s) pc(s)
- Pallet gross weight (air)
- 411.6 kg kg
- Master (outer) cases per pallet (air)
- 80 pc(s) pc(s)
- Products per pallet (air)
- 1600 pc(s) pc(s)
- Pallet gross length
- 110 cm cm
- Pallet height (sea)
- 2.02 m m
- Shipping (inner) case gross weight
- 4.91 kg kg
- Shipping (inner) case height
- 23.5 cm
- Shipping (inner) case width
- 25.3 cm
- Shipping (inner) case length
- 43.2 cm
- Shipping (inner) case net weight
- 3.28 kg
- Products per shipping (inner) case
- 20 pc(s)
- Pallet gross weight (air)
- 411.6 kg
- Master (outer) cases per pallet (air)
- 80 pc(s)
- Products per pallet (air)
- 1600 pc(s)
- Pallet gross length
- 110 cm
- Pallet gross width
- 120 cm
- Pallet height (air)
- 2.02 m
- Pallet gross weight (sea)
- 411.6 kg
- Master (outer) cases per pallet (sea)
- 80 pc(s)
- Products per pallet (sea)
- 1600 pc(s)
- Pallet height (sea)
- 2.02 m
- Shipping (inner) case gross weight
- 4.91 kg
Power
- Power consumption (typical)
- 4.5 W W
- Power source
- AC
- Power supply included
- Yes
- Power consumption (typical)
- 4.5 W
Other features
- Data transfer rate
- 1000 Mbit/s Mbit/s
- Dimensions (WxDxH)
- 142 x 107 x 30 mm mm
- Data transfer rate
- 1000 Mbit/s
- Dimensions (WxDxH)
- 142 x 107 x 30 mm
- Connectivity technology
- Wired
- I/O ports
- 5x 10/100/1000BASE-T
- Electromagnetic emissions
- CE Mark, FCC Class B
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C °C
- Storage temperature (T-T)
- -10 - 70 °C °C
- Operating relative humidity (H-H)
- 10 - 90% %
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -10 - 70 °C
- Operating relative humidity (H-H)
- 10 - 90%
Weight & dimensions
- Weight
- 80 g g
- Weight
- 80 g
Packaging data
- Package width
- 100 mm mm
- Package depth
- 116 mm mm
- Package height
- 82 mm mm
- Package weight
- 222 g g
- Package width
- 100 mm
- Package depth
- 116 mm
- Package height
- 82 mm
- Package weight
- 222 g
Management features
- Switch type
- Unmanaged
- Switch layer
- L2
- Quality of Service (QoS) support
- Yes
- Web-based management
- No
- Cloud-managed
- No
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity
- 5
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
Network
- Networking standards
- IEEE 802.3
- 10G support
- No
- Copper ethernet cabling technology
- 1000BASE-T, 100BASE-TX, 10BASE-T
- Full duplex
- Yes
Security
- Access Control List (ACL)
- No
Protocols
- Data link protocols
- Ethernet, Fast Ethernet, Gigabit Ethernet
Design
- Rack mounting
- No
- Stackable
- No
- Product colour
- White
- Housing material
- Plastic
- LED indicators
- Power
- Safety
- CSA
Power over Ethernet (PoE)
- Power over Ethernet (PoE)
- No
Packaging content
- Batteries included
- No
Logistics data
- Harmonized System (HS) code
- 85176990
General
- Enclosure Type
- Desktop
- Subtype
- Gigabit Ethernet
- Features
- Flow control, full duplex capability, auto-sensing per device, auto-negotiation, packet filtering, store and forward
- Device Type
- Switch - 5 ports
- Ports
- 5 x 10/100/1000
- Status Indicators
- Power, link/activity
