D-Link DES 1024D
Manuf P/N: DES-1024D/B
APAXON#: 1485048
EAN: 790069246104

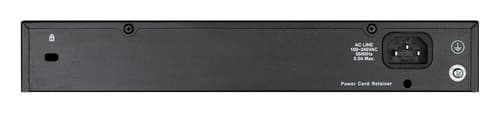

D-Link DES-1024D 24-port 10/100M NWay Desktop
Internal PSU (incl. 19" rack mount kit)
Weight: 1.94 KG
Internal PSU (incl. 19" rack mount kit)
Weight: 1.94 KG
- Unmanaged
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 24
- 10BASE-T, 100BASE-TX
- MAC address table: 8000 entries Switching capacity: 4.8 Gbit/s
- AC Power supply included
UK Stock28
ConditionNew
Price £ 45.37
Price inc. VAT
£ 54.44
Quantity
|
Sales & Technical Enquiries
Phone: 0161 464 9941Email: sales@apaxon.co.uk
Similar Products
Product Summary
This desktop switch is designed for small offices and larger workgroups. All ports auto-sense the network speed of the computers and hubs to run at either 10Mbps or 100Mbps. The ports also auto-negotiate between full and half duplex and support flow control. Expansion is easy through a MDI uplink port. You cascade several switches together through this port to get more ports. IEEE 802.3x Flow Control allows your servers to directly connect to this switch for fast, reliable data transfer.
Extended Specification
Power
Power consumption (max)
2.8 W W
AC input voltage
100 - 240 V V
AC input frequency
50/60 Hz Hz
Power source
AC
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power consumption (max)
2.8 W
Technical details
Pallet gross weight (air)
265.9 kg kg
Products per pallet (air)
120 pc(s) pc(s)
Shipping (inner) case height
31.1 cm cm
Shipping (inner) case width
39.2 cm cm
Shipping (inner) case length
42 cm cm
Shipping (inner) case net weight
9.5 kg kg
Products per shipping (inner) case
5 pc(s) pc(s)
Master (outer) cases per pallet (air)
24 pc(s) pc(s)
Pallet gross length
120 cm cm
Pallet gross width
110 cm cm
Pallet height (air)
137.9 cm cm
Pallet gross weight (sea)
390.3 kg kg
Master (outer) cases per pallet (sea)
36 pc(s) pc(s)
Products per pallet (sea)
180 pc(s) pc(s)
Pallet height (sea)
2 m m
Shipping (inner) case gross weight
10.4 kg kg
Shipping (inner) case height
31.1 cm
Shipping (inner) case width
39.2 cm
Shipping (inner) case length
42 cm
Shipping (inner) case net weight
9.5 kg
Products per shipping (inner) case
5 pc(s)
Pallet gross weight (air)
265.9 kg
Master (outer) cases per pallet (air)
24 pc(s)
Products per pallet (air)
120 pc(s)
Pallet gross length
120 cm
Pallet gross width
110 cm
Pallet height (air)
137.9 cm
Pallet gross weight (sea)
390.3 kg
Master (outer) cases per pallet (sea)
36 pc(s)
Products per pallet (sea)
180 pc(s)
Pallet height (sea)
2 m
Shipping (inner) case gross weight
10.4 kg
Network
Ethernet LAN data rates
10,100 Mbit/s Mbit/s
Networking standards
IEEE 802.1D, IEEE 802.3, IEEE 802.3U, IEEE 802.3x
10G support
No
Copper ethernet cabling technology
10BASE-T, 100BASE-TX
Full duplex
Yes
Half duplex
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
Ethernet LAN data rates
10,100 Mbit/s
Auto-sensing
Yes
Auto-negotiation
Yes
MAC address auto-learning supported
Yes
Data transmission
MAC address table
8000 entries entries
Switching capacity
4.8 Gbit/s Gbit/s
Packet forwarding rate (100 Mbps)
148.8 pps pps
Packet forwarding rate (10 Mbps)
14.88 pps pps
MAC address table
8000 entries
Switching capacity
4.8 Gbit/s
Supported data transfer rates
100 Mbps
Store-and-forward
Yes
Packet forwarding rate (100 Mbps)
148.8 pps
Packet forwarding rate (10 Mbps)
14.88 pps
Performance
Internal memory
2 MB MB
Mean time between failures (MTBF)
810.88 h h
Internal memory
2 MB
Mean time between failures (MTBF)
810.88 h
Other features
Dimensions (WxDxH)
280 x 180 x 44 mm mm
Dimensions (WxDxH)
280 x 180 x 44 mm
Connectivity technology
Wired
Networking features
10/100Base – EIA/TIA Categories 3 or 5 cable
I/O ports
24-10/100Mbps RJ-45 Auto-sensing ports
Operational conditions
Operating temperature (T-T)
0 - 40 °C °C
Storage temperature (T-T)
-10 - 70 °C °C
Operating relative humidity (H-H)
5 - 90% %
Storage relative humidity (H-H)
5 - 90% %
Heat dissipation
9.5536 BTU/h BTU/h
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 70 °C
Operating relative humidity (H-H)
5 - 90%
Storage relative humidity (H-H)
5 - 90%
Heat dissipation
9.5536 BTU/h
Weight & dimensions
Width
280 mm mm
Depth
150 mm mm
Height
44 mm mm
Weight
1.14 kg kg
Width
280 mm
Depth
150 mm
Height
44 mm
Weight
1.14 kg
Packaging data
Package width
282 mm mm
Package depth
376 mm mm
Package height
78 mm mm
Package weight
1.9 kg kg
Package width
282 mm
Package depth
376 mm
Package height
78 mm
Package weight
1.9 kg
Management features
Switch type
Unmanaged
Quality of Service (QoS) support
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Installed SFP modules quantity
0
Installed SFP+ modules quantity
0
Protocols
Switching protocols
Ethernet
Data link protocols
Ethernet, Fast Ethernet
Supported network protocols
CSMA/CD
Design
Stackable
No
Product colour
Black
LED indicators
Activity, Link, Power
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Certificates
Compliance certificates
BSMI, CB, CCC, CE, Federal Communications Commission (FCC), ICES, Low Voltage Directive (LVD), RCM, VCCI, cUL
Logistics data
Harmonized System (HS) code
85176990
General
Subtype
Fast Ethernet
Ports
24 x 10/100
Device Type
Switch - 24 ports - unmanaged
Enclosure Type
Desktop, rack-mountable
Performance
Switching fabric bandwidth: 4.8 Gbps
Status Indicators
Link/activity, power
Features
Flow control, auto-uplink (auto MDI/MDI-X), store and forward, full duplex mode, half duplex mode, Energy Efficient Ethernet, QoS
Disclaimers
- Product data is provided by CNET, we do not warrant the accuracy and completeness of the material contained in this data sheet
