D-Link DGS 1016S
Thumbnail 0
Thumbnail 1
Thumbnail 2
Thumbnail 3

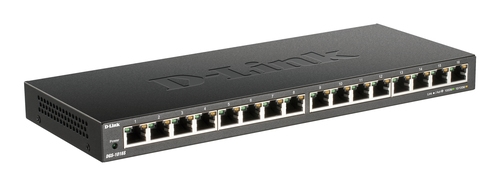

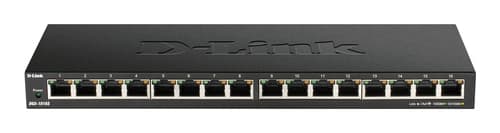

D-Link DGS 1016S

Manuf P/N: DGS-1016S/B
APAXON#: 7214716
EAN: 790069464256
D-Link DGS 1016S
Switch
unmanaged
16 x 10/100/1000
desktop
Weight: 1.08 KG
  • 16 Gigabit ports for high-speed wired connections
  • Plug-and-play for effortless installation
  • IEEE 802.3az-compliant to reduce power consumption
  • Auto power reduction when port has little or no traffic
  • Cable-length detection enhances energy conservation
  • Energy-efficient design reduces heat generated and allows silent operation
  • IEEE 802.1p QoS traffic prioritization to optimize performance
UK Stock28
ConditionNew
Price £ 62.28
Price inc. VAT
£ 74.74
Quantity
|

Sales & Technical Enquiries

Product Summary

The D-Link DGS 1016S switch is designed to meet the needs of modern networking environments. Offering 16 gigabit ports with a 32 Gbps switching capacity, this device ensures that your network can handle substantial data traffic efficiently. Its energy-efficient design, featuring Energy-Efficient Ethernet (EEE) and a fanless operation, not only reduces operational costs but also contributes to a quieter office environment. With support for Quality of Service (QoS), jumbo frames, and a comprehensive packet buffer, the DGS 1016S prioritizes data delivery, making it a suitable solution for applications requiring high levels of data integrity and speed. Its durable construction and compliance with multiple standards, including Plug-and-Play and RoHS, make it a reliable and environmentally friendly choice for expanding your network.

Extended Specification

Data transmission
MAC address table
8000 entries entries
Switching capacity
32 Gbit/s Gbit/s
Packet forwarding rate (1 Gbps)
1488000 pps pps
Packet forwarding rate (100 Mbps)
148800 pps pps
Packet forwarding rate (10 Mbps)
14880 pps pps
Packet buffer memory
0.512 MB MB
MAC address table
8000 entries
Switching capacity
32 Gbit/s
Store-and-forward
Yes
Number of queues
8
Jumbo frames support
Yes
Jumbo frames
9216
Packet forwarding rate (1 Gbps)
1488000 pps
Packet forwarding rate (100 Mbps)
148800 pps
Packet forwarding rate (10 Mbps)
14880 pps
Packet buffer memory
0.512 MB
Performance
Mean time between failures (MTBF)
564658 h h
Plug and Play
Yes
Fanless
Yes
Mean time between failures (MTBF)
564658 h
Power
DC input voltage
12 V V
Input current
1 A A
Power consumption (max)
8.89 W W
DC input voltage
12 V
Input current
1 A
Power consumption (max)
8.89 W
Operational conditions
Operating temperature (T-T)
0 - 40 °C °C
Storage temperature (T-T)
-40 - 70 °C °C
Operating relative humidity (H-H)
10 - 90% %
Storage relative humidity (H-H)
5 - 95% %
Heat dissipation
30.32 BTU/h BTU/h
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 95%
Heat dissipation
30.32 BTU/h
Weight & dimensions
Width
280 mm mm
Depth
110 mm mm
Height
25 mm mm
Weight
770 g g
Height
25 mm
Width
280 mm
Depth
110 mm
Weight
770 g
Management features
Switch type
Unmanaged
Quality of Service (QoS) support
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
16
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity
0
Installed SFP+ modules quantity
0
Network
Networking standards
IEEE 802.1p, IEEE 802.3az, IEEE 802.3x
10G support
No
Copper ethernet cabling technology
1000BASE-T
Full duplex
Yes
Half duplex
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
Cable length detection
Yes
Design
Product colour
Black
LED indicators
Activity, Link, Power, Speed
Safety
LVD
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Certificates
Certification
CE, FCC, ICES 003, RCM
Logistics data
Harmonized System (HS) code
85176990
General
Enclosure Type
Desktop
Subtype
Gigabit Ethernet
Ports
16 x 10/100/1000
Device Type
Switch - 16 ports - unmanaged
Status Indicators
Port transmission speed, power, link/activity
Performance
Switching capacity: 32 Gbps, Packet forwarding rate: 1488000 packets per second
Features
Flow control, auto-uplink (auto MDI/MDI-X), store and forward, QoS, fanless, 512KB packet buffer, EEE, cable length detection
D-Link DGS 1016S

Disclaimers

  • Product data is provided by CNET, we do not warrant the accuracy and completeness of the material contained in this data sheet
