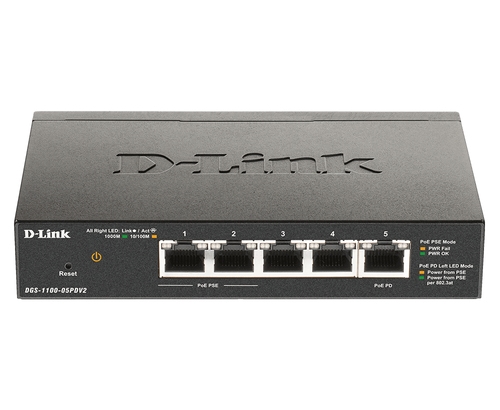

D-Link DGS 1100-05PDV2
Switch
smart
5 x 10/100/1000 (2 PoE)
desktop
PoE (18 W)
Weight: 0.65 KG
- Managed Web-based management
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 5
- Compact design for convenient placement
- Fanless design for silent operation
- Innovative D-Link Green energy saving features
- Complete web interface for comprehensive switch management
Similar Products
Overview
The DGS-1100 Series is a range of switches designed to meet the requirements of small, medium, and enterprise businesses. Support for multiple PoE standards make the DGS-1100 Series ideal for IP surveillance deployments. Advanced management features, a range of diagnostic and troubleshooting tools, and energy-efficient technologies provide a flexible solution to meet your networking requirements.
Specifications
Network
- Head-of-line (HOL) blocking
- Yes
- Ethernet LAN data rates
- 10000 Mbit/s
- Auto-negotiation
- Yes
- VLAN support
- Yes
- Virtual LAN features
- Management VLAN, Port-based VLAN, Tagged VLAN, Voice VLAN
- Number of VLANs
- 4094
- Ethernet LAN data rates
- 10000 Mbit/s Mbit/s
- Networking standards
- IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
- 10G support
- No
- Port mirroring
- Yes
- Full duplex
- Yes
- Half duplex
- Yes
- Flow control support
- Yes
- Broadcast storm control
- Yes
- Auto MDI/MDI-X
- Yes
Data transmission
- MAC address table
- 2000 entries
- Switching capacity
- 10 Gbit/s
- Forwarding rate
- 7.44 Mpps
- Number of trunks
- 1
- Number of queues
- 4
- Jumbo frames
- 9216
- Packet buffer memory
- 1 MB
- MAC address table
- 2000 entries entries
- Switching capacity
- 10 Gbit/s Gbit/s
- Forwarding rate
- 7.44 Mpps Mpps
- Packet buffer memory
- 1 MB MB
Security
- DHCP features
- DHCP client
- IGMP snooping
- Yes
- IGMP entries
- 128
- Static port security
- Yes
- SSH/SSL support
- Yes
- Queue scheduling algorithms
- Weighted Round Robin (WRR)
- MAC address entries
- Static MAC address entries
Design
- Rack mounting
- No
- Product colour
- Black
Performance
- Flash memory
- 2 MB
- Noise level
- 0 dB
- Fanless
- Yes
- Mean time between failures (MTBF)
- 2357475 h
- Flash memory
- 2 MB MB
- Mean time between failures (MTBF)
- 2357475 h h
- Noise level
- 0 dB dB
Power
- Power source
- PoE
- Power supply included
- No
- Power consumption (typical)
- 3.24 W
- Power consumption (max)
- 24.08 W
- Power consumption (typical)
- 3.24 W W
- Power consumption (max)
- 24.08 W W
Power over Ethernet (PoE)
- Power over Ethernet (PoE)
- Yes
- Power over Ethernet (PoE) ports quantity
- 2
- Power over Ethernet (PoE) power per port
- 18 W
- Power over Ethernet (PoE) power per port
- 18 W W
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -40 - 70 °C
- Operating relative humidity (H-H)
- 0 - 90%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating temperature (T-T)
- 0 - 40 °C °C
- Storage temperature (T-T)
- -40 - 70 °C °C
- Operating relative humidity (H-H)
- 0 - 90% %
- Storage relative humidity (H-H)
- 0 - 95% %
Weight & dimensions
- Width
- 150 mm
- Depth
- 97 mm
- Height
- 28 mm
- Weight
- 380 g
- Width
- 150 mm mm
- Depth
- 97 mm mm
- Height
- 28 mm mm
- Weight
- 380 g g
Certificates
- Compliance certificates
- BSMI, CB, Federal Communications Commission (FCC), Low Voltage Directive (LVD), VCCI
Logistics data
- Harmonized System (HS) code
- 85176990
Management features
- Switch type
- Managed
- Quality of Service (QoS) support
- Yes
- Web-based management
- Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity
- 5
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Installed SFP modules quantity
- 0
- Installed SFP+ modules quantity
- 0
- Gigabit Ethernet (copper) ports quantity
- 5
General
- Enclosure Type
- Desktop
- Subtype
- Gigabit Ethernet
- Routing Protocol
- IGMPv2, IGMP, IGMPv3
- Device Type
- Switch - 5 ports - smart
- Performance
- Switching capacity: 10 Gbps, Forwarding performance: 7.44 Mpps
- Capacity
- VLAN groups: 128, VLAN IDs: 4094, IGMP groups: 128
- Remote Management Protocol
- SNMP 2, ICMP
- Ports
- 5 x 10/100/1000 (2 PoE)
- Features
- Flow control, auto-negotiation, BOOTP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack prevention, port mirroring, Broadcast Storm Control, full duplex mode, Multicast Storm Control, Unicast Storm Control, STP support, RSTP support, QoS, Cable Diagnostics Function, bandwidth control, fanless, LLDP support, Port Security, DHCP client, tagged VLAN, DSCP support, IGMP querier, Voice VLAN, VLAN management, VLAN group, EEE, WRR, HOL Blocking Prevention, loopback detection, port-based VLAN, port-based QoS, Unknown Storm Control, DNA support, Asymmetric VLAN, 1Mbit packet buffer
- Status Indicators
- Status, link/activity/speed, PoE, power
