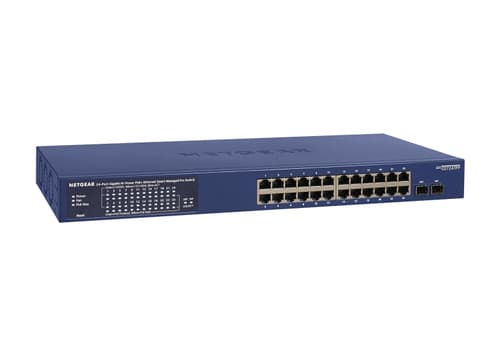

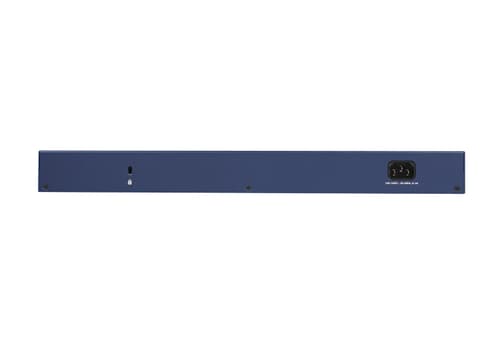

NETGEAR Smart GS724TP
Switch
L3 Lite
smart
24 x 10/100/1000 (PoE+) + 2 x Gigabit SFP
desktop, rack-mountable
PoE+ (190 W)
Weight: 4.82 KG
- PoE and PoE+ Support available for all configurations
- Auto-Voice VLAN for fast and reliable deployment of VoIP
- Auto-Video VLAN, following the same concept of Auto Voice, help speed up your deployment of IP-based surveillance systems
- Static routing, helps route internal traffic for more efficient use of network resources
- IGMP and MLD snooping, provides advanced multicast filtering
- Solid performance with a non-blocking architecture, 256 VLANs, 100 shared ACL entries, 32 static routes, and 512 Multicast Groups
- Comprehensive IPv6 management, QoS and ACL, ensuring investment protection and a smooth migration to IPv6-based networking
- PoE+ support on all ports with the GS510TLP, GS510TPP, GS418TPP, GS728TPv2, GS728TPPv2, GS752TPv2 and GS752TPP
- The presence of SFP ports provide necessary fiber uplinks, while dedicated SFP ports on many models further builds uplink redundancy
- Energy Efficient Ethernet (IEEE 802.3az) support for more energy savings when unused ports or short cables
- Advanced QoS with IPv4/IPv6 ingress traffic filtering (ACLs) and prioritization (QoS - Diff Serv)
- Dynamic VLAN assignment for easy user authentication and location-independent access to network
Similar Products
Overview
The GS724TP 24-port Gigabit switch with PoE+ and 2 SFP ports joins the NETGEAR standalone Smart switches family, adding full 24-port PoE+ support for deployment of modern high-power PoE devices. Cautious spender organizations can deploy denser PoE+ devices connected to a cost-effective switch, with a reasonable PoE power budget of 190 W. NETGEAR Smart switches offer powerful Layer 2 features, great PoE functionality, and enhanced performance and usability. These switches are the ideal solution even for the most advanced small and medium organizations looking for an excellent combination of features, performance, and value: they are purposely designed for converged networks where voice, video, data are all carried on a single network platform. Temperature- and load-based fan-speed control combines accurate monitoring with minimized system acoustic noise: the GS724TP supports quiet rack mounting operation with a maximum of 32.4 dBA even at full power and 25°C (77°F) ambient.
Specifications
Network
- Copper ethernet cabling technology
- 10BASE-T, 100BASE-T, 100BASE-TX, 1000BASE-T
- Port mirroring
- Yes
- Full duplex
- Yes
- IP routing
- Yes
- Flow control support
- Yes
- Networking standards
- IEEE 802.1D, IEEE 802.1ab, IEEE 802.1as, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3x, IEEE 802.3z
- 10G support
- Yes
- Broadcast storm control
- Yes
- Spanning tree protocol
- Yes
- VLAN support
- Yes
- Number of VLANs
- 64
- Link aggregation
- Yes
Weight & dimensions
- Width
- 440 mm mm
- Height
- 43 mm mm
- Depth
- 204 mm mm
- Weight
- 3.7 kg kg
Packaging content
- Manual
- Yes
- Cables included
- AC
- Quick start guide
- Yes
- User guide
- Yes
Certificates
- Certification
- CE, FCC, VCCI, EN, C-Tick, CCC, CSA, UL/cUL, IEC
General
- Flash Memory
- 32 MB
- RAM
- 128 MB
- Subtype
- Gigabit Ethernet
- MAC Address Table Size
- 8K entries
- Authentication Method
- RADIUS, TACACS+
- PoE Budget
- 190 W
- Power Over Ethernet (PoE)
- PoE+
- Encryption Algorithm
- TLS 1.0
- Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP
- Jumbo Frame Support
- 10KB
- Ports
- 24 x 10/100/1000 (PoE+) + 2 x Gigabit SFP
- Device Type
- Switch - 24 ports - L3 Lite - smart
- Enclosure Type
- Desktop, rack-mountable 1U
- Processor
- MIPS 4Kec: 500 MHz
- Performance
- Bandwidth: 52 Gbps Forwarding rate (64‑byte packets): 38.6 Mpps 1 Gbps copper latency (64-byte packets): 3.749 μs 1 Gbps fibre latency (64-byte packets): 3.129 μs
- Capacity
- Packet buffer size: 0.5 MB Priority queues: 8 Multicast groups: 128 Virtual interfaces (VLANs): 64 DHCP snooping entries: 256 ACLs per system: 100 Packet buffer size: 1.5 MB
- Status Indicators
- Port transmission speed, power, fan, PoE
- Features
- Flow control, IGMP snooping, DoS attack prevention, port mirroring, store and forward, IPv6 support, firmware upgradable, STP support, RSTP support, MSTP support, DHCP snooping, MLD snooping, IPv4 support, LACP, DHCP client, 512KB packet buffer, GVRP, dual firmware images, loop prevention, static routing, CoS, SP, cloud managed, DSCP support, Protocol-based VLANs support, cable test, ICMP IRDP, IGMP querier, DNS client, Voice VLAN, ZTP, EEE, WRR, Auto VoIP, VLAN Tagging, port trunking, Advanced QoS, LAG, security slot (Kensington security lock compatible), 2 fans, QoS
Miscellaneous
- Routing Protocol
- IGMP, static IP routing, MLDv2, MLD
Management features
- Quality of Service (QoS) support
- Yes
- Web-based management
- Yes
- System event log
- Yes
- Switch type
- Managed
- Switch layer
- L2/L3/L4
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- SFP module slots quantity
- 2
- Power connector
- DC-in jack
Optical fiber
- Fiber ethernet cabling technology
- 1000BASE‑LX, 1000BASE‑SX
Data transmission
- MAC address table
- 8000 entries entries
- Switching capacity
- 52 Gbit/s Gbit/s
- Store-and-forward
- Yes
- Number of queues
- 8
- Number of static routes
- 32
- Jumbo frames support
- Yes
- Jumbo frames
- 9216
- Packet buffer memory
- 0.512 MB MB
Security
- DHCP features
- DHCP client
- Access Control List (ACL)
- Yes
- IGMP snooping
- Yes
- Security algorithms
- 802.1x RADIUS, HTTPS, SSL/TLS
- MAC address filtering
- Yes
- SSH/SSL support
- Yes
Multicast features
- Multicast support
- Yes
- Number of multicast groups filtered
- 128
Protocols
- Management protocols
- SNMP v1/v2/v3
Design
- Rack mounting
- Yes
- Stackable
- Yes
- Product colour
- Blue
- LED indicators
- Activity, Link, Speed
- Number of fans
- 3 fan(s) fan(s)
Performance
- Noise level
- 0 dB dB
- Firmware upgradeable
- Yes
- Mean time between failures (MTBF)
- 634966 h h
Power
- Power supply included
- Yes
- AC input voltage
- 100 - 240 V V
- Power consumption (max)
- 446.7 W W
Power over Ethernet (PoE)
- Power over Ethernet (PoE)
- Yes
- Total Power over Ethernet (PoE) budget
- 380 W W
Operational conditions
- Operating temperature (T-T)
- 0 - 50 °C °C
- Storage temperature (T-T)
- -20 - 70 °C °C
- Operating relative humidity (H-H)
- 0 - 90% %
- Storage relative humidity (H-H)
- 0 - 95% %
- Operating altitude
- 0 - 3000 m m
