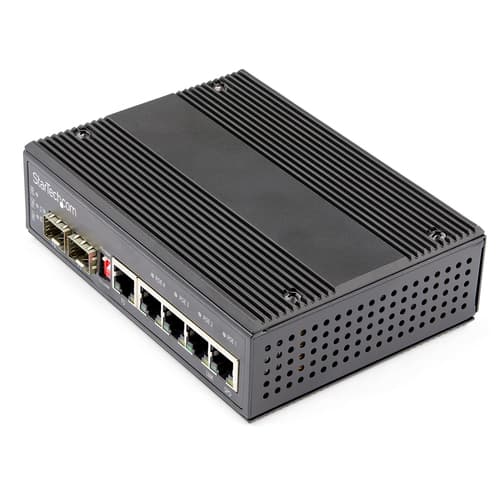

StarTech.com Industrial 6 Port Gigabit Ethernet Switch, 4 PoE RJ45 +2 SFP Slots 30W PoE+ 12-48VDC 10/100/1000 Rugged Power Over Ethernet LAN Switch -40C to 75C, DIN Mountable, Hardened - Fast Ethernet Switch (IES1G52UP12V) - Switch - 1 x 10/100/1000 + 4 x 10/100/1000 (PoE+) + 2 x SFP - DIN rail mountable - PoE+ (120 W) - DC power
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity: 5
- 10BASE-T, 100BASE-T, 1000BASE-T
- Switching capacity: 12 Gbit/s
- Power over Ethernet (PoE)
Similar Products
Overview
StarTech.com Industrial 6 Port Gigabit Ethernet Switch - 4 PoE RJ45 +2 SFP Slots 30W PoE+ 12-48VDC 10/100/1000 Rugged Power Over Ethernet LAN Switch -40C to 75C - DIN Mountable
Specifications
Management features
- Switch type
- Unmanaged
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity
- 5
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Installed SFP modules quantity
- 0
- Installed SFP+ modules quantity
- 0
- SFP module slots quantity
- 2
Network
- Networking standards
- IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
- 10G support
- No
- Copper ethernet cabling technology
- 10BASE-T, 100BASE-T, 1000BASE-T
- Full duplex
- Yes
- Flow control support
- Yes
- Auto MDI/MDI-X
- Yes
- Auto-negotiation
- Yes
Data transmission
- Switching capacity
- 12 Gbit/s
- Jumbo frames support
- Yes
- Jumbo frames
- 9000
Protocols
- Supported network protocols
- CSMA/CD
Design
- Rack mounting
- No
- Product colour
- Black
- Housing material
- Aluminium, Steel
- LED indicators
- Activity, Link, PoE, Power
- International Protection (IP) code
- IP30
- Wall mountable
- Yes
- DIN rail mounting
- Yes
- Safety
- EN60950-1
Performance
- Buffer size
- 128 KB
- Mean time between failures (MTBF)
- 693764 h
Power
- Surge protection
- Yes
- Surge protection voltage
- 2 kV
Power over Ethernet (PoE)
- Power over Ethernet (PoE)
- Yes
- Power over Ethernet plus (PoE+) ports quantity
- 4
- Power over Ethernet (PoE) power per port
- 30 W
- Total Power over Ethernet (PoE) budget
- 120 W
Other features
- Terminal block port
- Yes
Operational conditions
- Operating temperature (T-T)
- -40 - 75 °C
- Storage temperature (T-T)
- -40 - 85 °C
- Operating relative humidity (H-H)
- 5 - 95%
Weight & dimensions
- Width
- 105 mm
- Depth
- 142 mm
- Height
- 43 mm
- Weight
- 701.4 g
Packaging content
- Quick start guide
- Yes
Packaging data
- Terminal block included
- Yes
- Package width
- 211 mm
- Package depth
- 162 mm
- Package height
- 64 mm
- Package weight
- 946.4 g
Certificates
- Certification
- CE, RoHS, FCC
Logistics data
- Master (outer) case width
- 355 mm
- Master (outer) case length
- 345 mm
- Master (outer) case height
- 225 mm
- Harmonized System (HS) code
- 85176990
- Products per master (outer) case
- 10 pc(s)
