Zyxel GS1900-10HP
Thumbnail 0
Thumbnail 1
Thumbnail 2
Thumbnail 3
Thumbnail 4

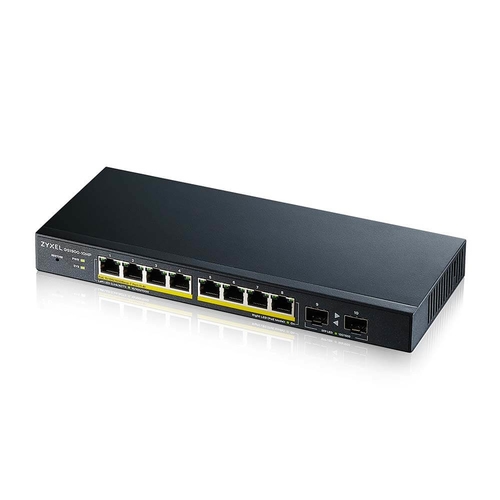

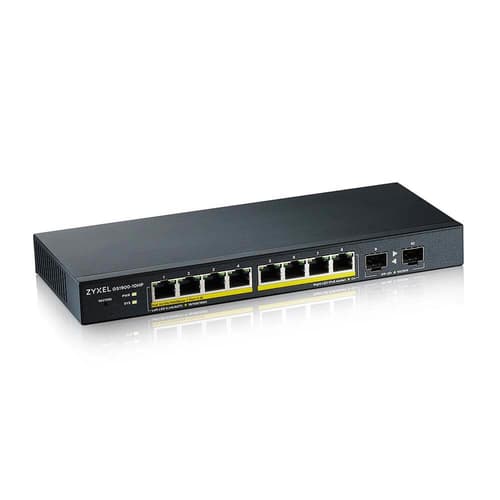

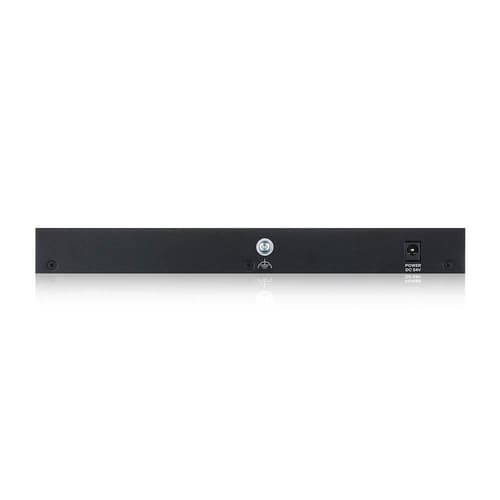

Zyxel GS1900-10HP

Manuf P/N: GS1900-10HP-GB0102F
APAXON#: 8568269
EAN: 4718937621217
Zyxel GS1900-10HP
Switch
smart
8 x 10/100/1000 (PoE+) + 2 x Gigabit SFP (uplink)
desktop, wall-mountable
PoE+ (77 W)
Weight: 1.50 KG
  • Managed L2 Web-based management SNMP, RMON, ICMP, Syslog
  • Quality of Service (QoS) support
  • Basic switching RJ-45 Ethernet ports quantity: 8 Console port: RJ-45
  • 10BASE-T, 100BASE-T, 1000BASE-T
  • MAC address table: 8000 entries Switching capacity: 20 Gbit/s
  • AC Power supply included Power over Ethernet (PoE)
UK Stock54
ConditionNew
Price £ 97.98
Price inc. VAT
£ 117.58
Quantity
|

Sales & Technical Enquiries

Product Summary

The ZyXEL GS1900 series with Gigabit speed and essential managing functions bring your business network more flexibility and connectivity. The 1900 series GbE switches with power-saving functions and fanless design ensure your network to be ready challenges. They have been designed with useful features and advanced performances that empower your networks with speed and security as well as silent operation in your office environments.

Extended Specification

Management features
Switch type
Managed
Switch layer
L2
Quality of Service (QoS) support
Yes
Web-based management
Yes
System event log
Yes
MIB support
RFC 1213 MIB II, RFC 2819 RMON (group 1, 2, 3, 9), RFC 1215 generic traps, RFC 1493 bridge
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
SFP module slots quantity
2
Console port
RJ-45
Network
Networking standards
IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support
No
Copper ethernet cabling technology
10BASE-T, 100BASE-T, 1000BASE-T
VLAN support
Yes
Virtual LAN features
Voice VLAN
Data transmission
MAC address table
8000 entries
Switching capacity
20 Gbit/s
Throughput
14.88 Mpps
Jumbo frames
9000
MAC address table
8000 entries entries
Switching capacity
20 Gbit/s Gbit/s
Throughput
14.88 Mpps Mpps
Security
DHCP features
DHCP client
IGMP snooping
Yes
Security algorithms
802.1x RADIUS, SSL/TLS
MAC address filtering
Yes
Protocols
Management protocols
SNMP, RMON, ICMP, Syslog
Design
Rack mounting
No
Product colour
Black
LED indicators
Yes
Wall mountable
Yes
Performance
Mean time between failures (MTBF)
800259 h
Mean time between failures (MTBF)
800259 h h
Power
Power source
AC
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (max)
95.3 W
Voltage Required
AC 100-240 V (50/60 Hz) V
AC input frequency
50 - 60 Hz Hz
Power consumption (max)
95.3 W W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
8
Total Power over Ethernet (PoE) budget
77 W
Total Power over Ethernet (PoE) budget
77 W W
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 95%
Storage relative humidity (H-H)
10 - 95%
Operating temperature (T-T)
0 - 40 °C °C
Storage temperature (T-T)
-40 - 70 °C °C
Operating relative humidity (H-H)
10 - 95% %
Storage relative humidity (H-H)
10 - 95% %
Weight & dimensions
Width
250 mm
Depth
104 mm
Height
27 mm
Weight
720 g
Width
250 mm mm
Depth
104 mm mm
Height
27 mm mm
Weight
720 g g
Packaging content
Cables included
AC
Certificates
Certification
CE, FCC, RCM, Class A, BSMI CNS 13438, LVD EN 62368-1, BSMI CNS 14336-1
General
Subtype
Gigabit Ethernet
MAC Address Table Size
8K entries
Encryption Algorithm
SSL
Authentication Method
RADIUS, TACACS+
Jumbo Frame Support
9KB
Enclosure Type
Desktop, wall-mountable
Desktop, wall-mountable
Switch - 8 ports - smart
Ports
8 x 10/100/1000 (PoE+) + 2 x Gigabit SFP (uplink)
Performance
Switching capacity: 20 Gbps Forwarding performance: 14.88 Mpps Packet buffer size: 525 KB
Routing Protocol
IGMP, IGMPv2, IGMPv3
Remote Management Protocol
SNMP 1, SNMP 2, SNMP 3, RMON 1, RMON 2, RMON 3, RMON 9, ICMP
Features
QoS, IGMP snooping, Link Aggregation, VLAN support, DoS attack prevention, store and forward, flow control, STP support, RSTP support, MSTP support, auto-uplink (auto MDI/MDI-X), Guest VLAN, Voice VLAN, Storm Control, VLAN Tagging, CoS, Port Security, IPv6 support, DHCP client, NTP support, port mirroring, LACP support, LLDP support, Energy Efficient Ethernet, fanless, Syslog support, MIB, WRR queuing, SPQ, tagged VLAN
Zyxel GS1900-10HP

Disclaimers

  • Product data is provided by CNET, we do not warrant the accuracy and completeness of the material contained in this data sheet
