4-Port HDMI Extender/Splitter Over CAT6

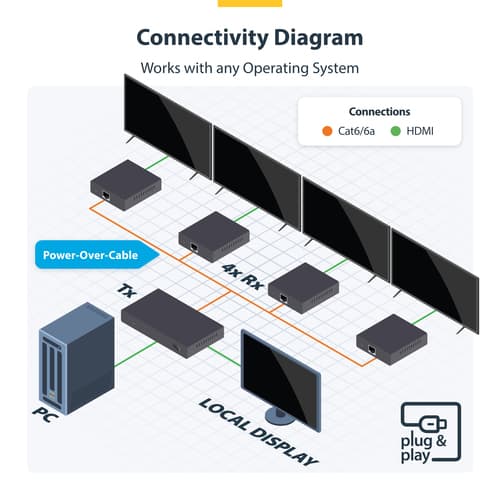

- <b>HDMI Over Ethernet Cabling:</b> Extend HDMI signals to four remote displays over CAT6/6a with one transmitter; Supports lossless, low-latency 4K 60Hz video with 2ch audio up to 230ft (70m); Ideal for boardrooms, digital signage, education, and hospitality
- <b>Power-Over-Cable:</b> A single power adapter connects to the transmitter, and all four receivers are powered over the CAT6/6a cabling, simplifing installation in environments with limited power access while reducing cable clutter
- <b>No Drivers or Software:</b> One-to-many HDMI Extender requires no drivers, software, or IP configuration, reducing setup time; Works with any operating system (Windows, macOS, and ChromeOS) and hardware platform (Intel, AMD, and Apple Silicon)
- <b>Versatile Mounting Options:</b> 1x4 HDMI distribution kit includes mounting brackets for wall, ceiling, or under-table installation at both the transmitter and receivers; Compact form factor allows for descrite installation in tight spaces
- <b>The IT Pro's Choice:</b> Backed by decades of connectivity expertise from legacy VGA to modern USB4 and AVoIP solutions; Work with a single trusted partner for all your A/V connectivity needs; Free lifetime 24/5 multi-lingual technical assistance
Similar Products
Specifications
Features
- Type
- AV transmitter & receiver
- Maximum resolution
- 3840 x 2160 pixels pixels
- Cable types supported
- Cat6, Cat6a
- Maximum transfer distance
- 70 m m
- Chipset
- GSV5100
- Maximum refresh rate
- 60 Hz Hz
- Audio output channels
- 2.0 channels channels
- LED indicators
- Yes
- Rack mounting
- No
- Daisy chain
- No
- Product colour
- Black
- Windows operating systems supported
- Yes
- Mac operating systems supported
- Yes
Ports & interfaces
- Connectivity technology
- Wired
- RJ-45 input ports
- 4
- RJ-45 output ports
- 4
- HDMI in
- 1
- Number of HDMI outputs
- 5
- Remote (IR) input
- 4
- Remote (IR) output
- 1
- DC-in jack
- Yes
Power
- AC input voltage
- 100 - 240 V V
- Operating voltage
- 12 V V
- Input current
- 0.8 A A
- Output current
- 2 A A
- Power consumption (typical)
- 24 W W
- Power plug type
- Type M
Operational conditions
- Operating temperature (T-T)
- 0 - 50 °C °C
- Storage temperature (T-T)
- -10 - 70 °C °C
- Operating relative humidity (H-H)
- 5 - 90% %
Weight & dimensions
- Width
- 103 mm mm
- Depth
- 180 mm mm
- Height
- 23 mm mm
- Weight
- 375 g g
Packaging data
- Package width
- 423 mm mm
- Package depth
- 345 mm mm
- Package height
- 60 mm mm
- Package weight
- 1.2 kg kg
Packaging content
- AC adapter included
- Yes
- Included power plug types
- ANZ, EU, NA, UK
- Quick start guide
- Yes
- IR blaster included
- Yes
- IR receiver included
- Yes
- Mounting kit
- Yes
- Packaging content

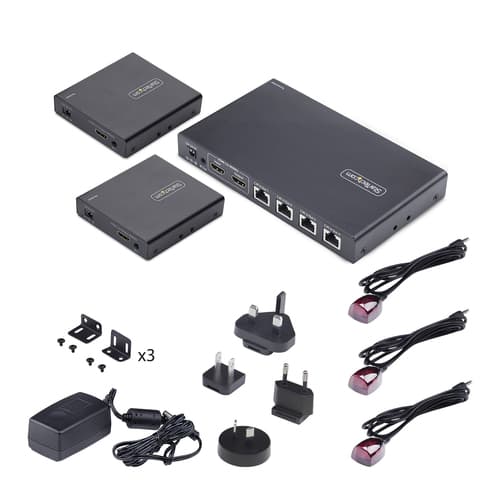

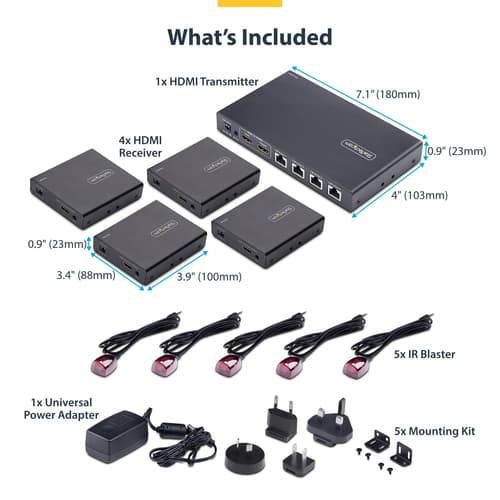

- 1 - HDMI Transmitter 4 - HDMI Receiver
Technical details
- Compliance certificates
- Federal Communications Commission (FCC), RoHS
Logistics data
- Master (outer) case width
- 450 mm mm
- Master (outer) case length
- 367 mm mm
- Master (outer) case height
- 525 mm mm
- Products per master (outer) case
- 6 pc(s) pc(s)
