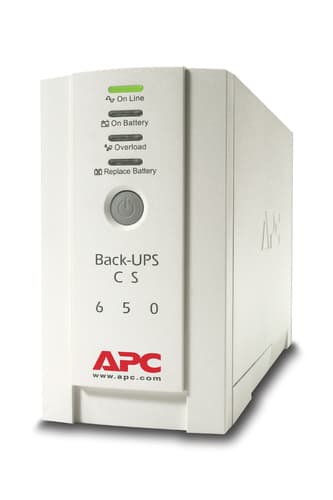

APC Back-UPS CS 650
Weight: 6.92 KG
- Standby (Offline)
- 0.65 kVA 400 W
- Waveform: Sine
- 4 AC outlet(s)
- Sealed Lead Acid (VRLA) 12 V 9 Ah
- Tower Beige
Similar Products
Overview
The Back-UPS CS provides professional-grade power protection for office and home office systems. Battery powered and surge protected power outlets, built-in phone/fax/modem line (DSL compatible) protection, safe system shutdown software with sophisticated power management features and pro-active audio-visual status indicators ensure office systems and their valuable data are protected from dangerous power surges, spikes and blackouts. Serial or USB connectivity gives users more flexibility making installation quicker and easier. Easy access to a hot-swappable, user-replaceable battery also makes servicing the Back-UPS CS hassle-free. These features along with its classic styling make the Back-UPS CS a perfect choice for protecting your important office and home office systems.
Specifications
Features
- UPS topology
- Standby (Offline)
- Output power capacity
- 0.65 kVA
- Output power
- 400 W
- Waveform
- Sine
- Input operation voltage (min)
- 160 V
- Input operation voltage (max)
- 286 V
- Input frequency
- 50/60 Hz
- Output frequency regulation
- 47 - 63 Hz
- Maximum current
- 7 A
- Surge energy rating
- 310 J
- Hold time (min)
- 6 ms
- Hold time (max)
- 10 ms
- Efficiency
- 98.9%
- Noise level
- 45 dB
- Surge protection
- Yes
- Surge protection features
- Digital Subscriber Line (DSL), Fax, Modem, Telephone
- Audible alarm(s)
- Yes
- Audible alarm modes
- Low battery alarm, Overload alarm
- Output power capacity
- 0.65 kVA kVA
- Output power
- 400 W W
- Input operation voltage (min)
- 160 V V
- Input operation voltage (max)
- 286 V V
- Input frequency
- 50/60 Hz Hz
- Output frequency regulation
- 47 - 63 Hz Hz
- Maximum current
- 7 A A
- Surge energy rating
- 310 J J
- Hold time (min)
- 6 ms ms
- Hold time (max)
- 10 ms ms
- Efficiency
- 98.9% %
- Noise level
- 45 dB dB
Ports & interfaces
- AC outlet types
- C13 coupler, IEC 60320
- Power plug
- C14 coupler
- AC outlets quantity
- 4 AC outlet(s)
- Number of output IEC jumpers
- 2
- USB port
- Yes
- AC outlets quantity
- 4 AC outlet(s) AC outlet(s)
Battery
- Battery technology
- Sealed Lead Acid (VRLA)
- Battery capacity
- 9 Ah
- Battery capacity
- 111 VAh
- Battery voltage
- 12 V

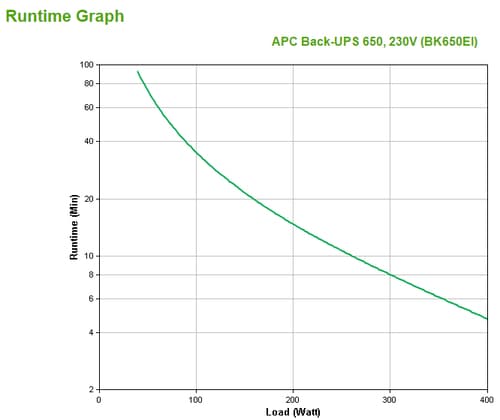

- Typical backup time at full load
- 4.7 min
- Typical backup time at half load
- 14.7 min
- Battery life (max)
- 6 year(s)
- Battery recharge time
- 8 h
- Automatic battery test
- Yes
- Replacement battery cartridge
- 1
- Battery capacity
- 9 Ah Ah
- Battery capacity
- 111 VAh VAh
- Battery voltage
- 12 V V
- Typical backup time at full load
- 4.7 min min
- Typical backup time at half load
- 14.7 min min
- Battery life (max)
- 6 year(s) year(s)
- Battery recharge time
- 8 h h
Design
- Form factor
- Tower
- Product colour
- Beige
- Cable length
- 1.8 m
- LED indicators
- Yes
- Cable length
- 1.8 m m
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 5 - 95%
- Storage relative humidity (H-H)
- 5 - 95%
- Operating altitude
- 0 - 3048 m
- Non-operating altitude
- 0 - 15240 m
- Operating temperature (T-T)
- 0 - 40 °C °C
- Storage temperature (T-T)
- -15 - 45 °C °C
- Operating relative humidity (H-H)
- 5 - 95% %
- Storage relative humidity (H-H)
- 5 - 95% %
- Operating altitude
- 0 - 3048 m m
- Non-operating altitude
- 0 - 15240 m m
Certificates
- Compliance certificates
- RoHS
- Certification
- A-tick, C-tick, CE, GOST, NEMKO
Packaging content
- Cables included
- USB cable
- Quick installation guide
- Yes
Sustainability
- Sustainability certificates
- ENERGY STAR, Green Premium
Weight & dimensions
- Width
- 91 mm
- Depth
- 284 mm
- Height
- 165 mm
- Weight
- 6.03 kg
- Width
- 91 mm mm
- Depth
- 284 mm mm
- Height
- 165 mm mm
- Weight
- 6.03 kg kg
Packaging data
- Software CD
- Yes
- Bundled software
- PowerChute Personal Edition
- Package width
- 185 mm
- Package depth
- 415 mm
- Package height
- 494 mm
- Package weight
- 7.31 kg
- Package width
- 185 mm mm
- Package depth
- 415 mm mm
- Package height
- 494 mm mm
- Package weight
- 7.31 kg kg
Logistics data
- Products per pallet
- 48 pc(s)
- Harmonized System (HS) code
- 85078000
- Products per master (outer) case
- 1 pc(s)
- Products per pallet
- 48 pc(s) pc(s)
- Products per master (outer) case
- 1 pc(s) pc(s)
Other features
- Nominal output voltage
- 230 V
- Nominal input voltage
- 230 V
- Filtering
- Yes
- Packaging content
- Detachable IEC C13 to IEC C14 power cords
- Nominal output voltage
- 230 V V
- Nominal input voltage
- 230 V V
General
- Device Type
- UPS - external
Power Device
- Input Voltage
- AC 230 V
- Input Voltage Range
- AC 180 - 260 V
- Power Capacity
- 400 Watt / 650 VA
