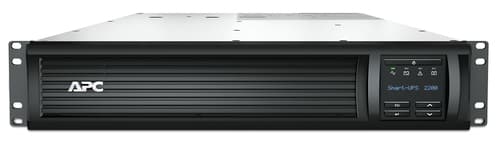

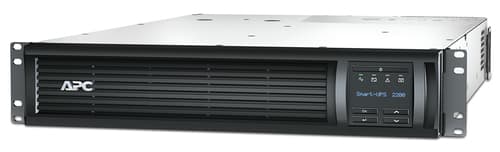

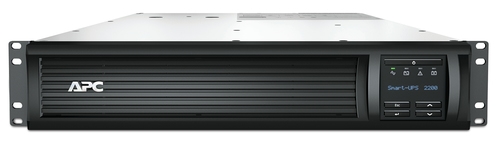

APC Smart-UPS 2200VA LCD RM
Manuf P/N: SMT2200RMI2UNC
APAXON#: 3933118
EAN: 731304327691
APC Smart-UPS 2200VA LCD RM
UPS (rack-mountable)
AC 230 V
1980 Watt
2200 VA
Ethernet, RS-232, USB
output connectors: 9
2U
with APC UPS Network Management Card
for P/N: AR3103SP, AR3106SP, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, NBWL0356A
Weight: 55.00 KG
UPS (rack-mountable)
AC 230 V
1980 Watt
2200 VA
Ethernet, RS-232, USB
output connectors: 9
2U
with APC UPS Network Management Card
for P/N: AR3103SP, AR3106SP, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, NBWL0356A
Weight: 55.00 KG
- Automatic Voltage Regulation (AVR) for stable power
- LCD display and LED indicators for easy monitoring
- Hot-swappable batteries with predictive failure notification
- Energy meter for efficient power management
- Compliant with REACH and RoHS standards
Stock48
Price £ 2,127.85
Price inc. VAT
£ 2,553.42
Quantity
|
Similar Products
APC Smart-UPS SMT1500IC - UPS - AC 220/230/240 V - 1000 Watt - 1500 VA - RS-232, USB - output connectors: 8 - black - with APC SmartConnect
Cheaper
—
—
—
—
Stock47
£807.90
Product Summary
APC Smart-UPS protects your data by supplying reliable, network-grade power in either traditional Tower or Rack-optimized form factors for space constrained business critical applications. Award winning APC Smart-UPS is the perfect UPS for protecting business critical fileservers (Intel or UNIX based), minicomputers, network switches and hubs, Point of Sale, retail/bank back office and ATMs. Rack Mount versions are the choice for rack optimized servers, server appliances, blade servers, other blade devices and rack-mounted network switches and hubs.
Extended Specification
Features
Output power capacity
2.2 kVA kVA
Output power
1980 W W
Input operation voltage (min)
151 V V
Input operation voltage (max)
302 V V
Input frequency
50/60 Hz Hz
Output operation voltage (min)
220 V V
Output operation voltage (max)
240 V V
Output frequency
50/60 Hz Hz
Surge energy rating
375 J J
Response time
4 ms ms
Noise level
55 dB dB
UPS topology
Line-Interactive
Output power capacity
2.2 kVA
Output power
1980 W
Waveform
Sine
Input operation voltage (min)
151 V
Input operation voltage (max)
302 V
Input frequency
50/60 Hz
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Output frequency
50/60 Hz
Surge energy rating
375 J
Response time
4 ms
Emergency Power Off (EPO)
O
Noise level
55 dB
Surge protection
Yes
Audible alarm(s)
Yes
Web-based management
Yes
Audible alarm modes
Battery replacement
Auto-restart
Yes

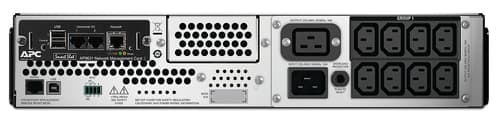

Ports & interfaces
AC outlets quantity
9 AC outlet(s) AC outlet(s)
AC outlet types
C20 coupler
Power plug
C20 coupler
AC outlets quantity
9 AC outlet(s)
USB 2.0 ports quantity
1
Ethernet LAN (RJ-45) ports
1
Battery
Battery capacity
509 Ah Ah
Battery recharge time
5 h h
Battery technology
Sealed Lead Acid (VRLA)
Battery capacity
509 Ah
Battery recharge time
5 h
Hot-swap battery
Yes
Automatic battery test
Yes
Cold start
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C °C
Storage temperature (T-T)
-15 - 45 °C °C
Operating relative humidity (H-H)
0 - 95% %
Storage relative humidity (H-H)
0 - 95% %
Operating altitude
0 - 3000 m m
Non-operating altitude
0 - 15000 m m
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 15000 m
Weight & dimensions
Width
480 mm mm
Depth
683 mm mm
Height
86 mm mm
Weight
42.2 kg kg
Width
480 mm
Depth
683 mm
Height
86 mm
Weight
42.2 kg
Packaging data
Package width
600 mm mm
Package depth
980 mm mm
Package height
254 mm mm
Package weight
49.6 kg kg
Resource CD
Yes
Package width
600 mm
Package depth
980 mm
Package height
254 mm
Package weight
49.6 kg
Logistics data
Products per pallet
8 pc(s) pc(s)
Products per pallet
8 pc(s)
Harmonized System (HS) code
85078000
Total carbon footprint (kg of CO2e)
3327.3
Other features
Output voltage
230 V V
Output voltage
230 V
Design
Form factor
Rackmount
Product colour
Black
Rack capacity
2U
Display type
LCD
LED indicators
Yes
Certificates
Compliance certificates
RoHS
Certification
CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, GS Mark, IRAM, RCM, VDE, WEEE
Packaging content
Rack mount kit
Yes
Cables included
Input power cable, USB cable
Quick installation guide
Yes
Sustainability
Sustainability certificates
Green Premium
General
Device Type
UPS - rack-mountable
Power Device
Input Voltage
AC 230 V
Input Voltage Range
AC 160 - 286 V
Power Capacity
1980 Watt / 2200 VA
Compatibility Information
Designed For
P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC1021, ACDC2513, ACF001, ACF002, ACF003, ACF101BLK, ACF102BLK, ACF201BLK, ACF202BLK, ACF400, ACF402, ACF600, AP5017, AP5602, AP5606, AP5607, AP5616, AP92200, AP9290, AR201, AR202, AR203A, AR204A, AR2101, AR2102BLK, AR2144BLK, AR2145BLK, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR2900, AR2901, AR3000, AR3100, AR3100G, AR3100SP, AR3100SP1, AR3100SP2, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3101, AR3103SP, AR3104, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3106SP, AR3107, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3140, AR3140G, AR3140W, AR3150, AR3150SP, AR3150SP1, AR3150SP2, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3180G, AR3200, AR3300, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307, AR3307SP, AR3307W, AR3307X609, AR3307X610, AR3307X617, AR3340, AR3340G, AR3340W, AR3347, AR3350, AR3350SP, AR3350W, AR3350X609, AR3350X610, AR3350X617, AR3355, AR3355SP, AR3355W, AR3357, AR3357SP, AR3357X609, AR3357X610, AR3357X617, AR3810, AR3812, AR3814, AR4018, AR4018A, AR4018I, AR4018IA, AR4018IX429, AR4018IX431, AR4018IX432, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4018X429, AR4018X431, AR4018X432, AR4024, AR4024A, AR4024I, AR4024IA, AR4024IX429, AR4024IX431, AR4024IX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4024X429, AR4024X431, AR4024X432, AR4038, AR4038A, AR4038I, AR4038IA, AR4038IX429, AR4038IX431, AR4038IX432, AR4038X429, AR4038X431, AR4038X432, AR7007, AR7050, AR7057, NBPD0180, NBRK0201, NBRK0320, NBRK0320E, NBRK0551, NBWL0355, NBWL0356A
Disclaimers
- Product data is provided by CNET, we do not warrant the accuracy and completeness of the material contained in this data sheet
