APC Smart-UPS SMT 2200VA LCD RM with SmartConnect
APC Smart-UPS SMT 2200VA LCD RM with SmartConnect
UPS (rack-mountable)
AC 230 V
1980 Watt
2200 VA
RS-232, USB
output connectors: 9
2U
for P/N: AR3003, AR3003SP, AR3006, AR3006SP, AR3103, AR3103SP, AR3106, AR3106SP, AR9300SP
Weight: 51.00 KG
UPS (rack-mountable)
AC 230 V
1980 Watt
2200 VA
RS-232, USB
output connectors: 9
2U
for P/N: AR3003, AR3003SP, AR3006, AR3006SP, AR3103, AR3103SP, AR3106, AR3106SP, AR9300SP
Weight: 51.00 KG
- 2200 VA / 1980 W power capacity supports high-demand systems

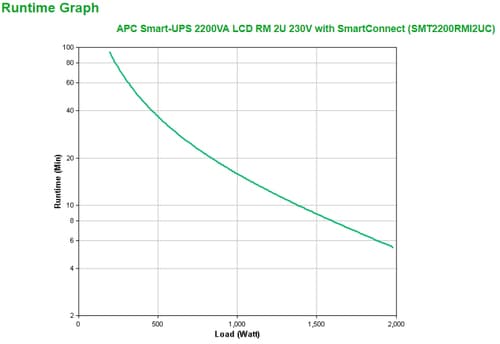

- Lead acid battery provides 5 min run time at full load, ensuring temporary operation during outages
- LCD display and audible alarms for real-time UPS status and alerts
- Surge suppression feature protects against electrical spikes
- SmartSlot and multiple management interfaces for enhanced connectivity and control
Similar Products
Overview
Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Specifications
Features
- UPS topology
- Line-Interactive
- Output power capacity
- 2.2 kVA
- Output power
- 1980 W
- Waveform
- Sine
- Input operation voltage (min)
- 151 V
- Input operation voltage (max)
- 302 V
- Input frequency
- 50/60 Hz
- Output operation voltage (min)
- 220 V
- Output operation voltage (max)
- 240 V
- Surge energy rating
- 375 J
- Response time
- 6 ms
- Output voltage Total Harmonic Distortion (THD)
- 5%
- Noise level
- 55 dB
- Power protection features
- Over voltage
- Audible alarm(s)
- Yes
- Audible alarm modes
- Alarm when on battery, Low battery alarm
- Output power capacity
- 2.2 kVA kVA
- Output power
- 1980 W W
- Input operation voltage (min)
- 151 V V
- Input operation voltage (max)
- 302 V V
- Input frequency
- 50/60 Hz Hz
- Output operation voltage (min)
- 220 V V
- Output operation voltage (max)
- 240 V V
- Surge energy rating
- 375 J J
- Response time
- 6 ms ms
- Output voltage Total Harmonic Distortion (THD)
- 5% %
- Noise level
- 55 dB dB

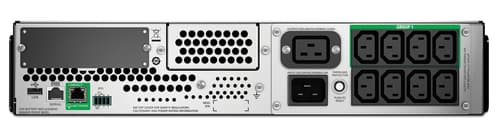

Ports & interfaces
- AC outlets quantity
- 9 AC outlet(s)
- USB port
- Yes
- USB 2.0 ports quantity
- 1
- USB port type
- USB Type-A
- Serial interface
- Yes
- Serial interface type
- RJ-45
- Ethernet LAN (RJ-45) ports
- 1
- SmartSlot
- Yes
- AC outlet types
- IEC 60320
- AC outlets quantity
- 9 AC outlet(s) AC outlet(s)
Battery
- Battery technology
- Sealed Lead Acid (VRLA)
- Number of batteries supported
- 1
- Battery life (max)
- 5 year(s)
- Battery recharge time
- 3 h
- Replacement battery cartridge
- RBC43
- Battery life (max)
- 5 year(s) year(s)
- Battery recharge time
- 3 h h
Design
- Form factor
- Rackmount
- Product colour
- Black, Metallic
- Rack capacity
- 2U
- Cable length
- 2 m
- Display type
- LCD
- Cable length
- 2 m m
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 15000 m
- Operating temperature (T-T)
- 0 - 40 °C °C
- Storage temperature (T-T)
- -15 - 45 °C °C
- Operating relative humidity (H-H)
- 0 - 95% %
- Storage relative humidity (H-H)
- 0 - 95% %
- Operating altitude
- 0 - 3000 m m
- Non-operating altitude
- 0 - 15000 m m
Certificates
- Compliance certificates
- RoHS
- Certification
- CE, EAC, EN 60950, EN/IEC 62040-1, EN/IEC 62040-2, GS Mark, IRAM, RCM, VDE, WEEE
Packaging content
- Rack mount kit
- Yes
- Cables included
- RS-232, USB cable
Sustainability
- Sustainability certificates
- Green Premium
Weight & dimensions
- Width
- 432 mm
- Depth
- 683 mm
- Height
- 86 mm
- Weight
- 42.3 kg
- Width
- 432 mm mm
- Depth
- 683 mm mm
- Height
- 86 mm mm
- Weight
- 42.3 kg kg
Packaging data
- Software CD
- Yes
- Package width
- 600 mm
- Package depth
- 980 mm
- Package height
- 254 mm
- Package weight
- 49.7 kg
- Package width
- 600 mm mm
- Package depth
- 980 mm mm
- Package height
- 254 mm mm
- Package weight
- 49.7 kg kg
Logistics data
- Products per pallet
- 8 pc(s)
- Harmonized System (HS) code
- 85078000
- Total carbon footprint (kg of CO2e)
- 3416.11
- Products per pallet
- 8 pc(s) pc(s)
General
- Device Type
- UPS - rack-mountable
Power Device
- Input Voltage
- AC 230 V
- Input Voltage Range (Adjustable)
- AC 150 - 300 V
- Power Capacity
- 1980 Watt / 2200 VA
Compatibility Information
- Designed For
- P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC1021, ACDC2513, ACF002, ACF101BLK, ACF102BLK, ACF400, AP5017, AP5602, AP5606, AP5607, AP5616, AP92200, AP9290, AR202, AR203A, AR204A, AR2101, AR2102BLK, AR2144BLK, AR2145BLK, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR2900, AR2901, AR3000, AR3003, AR3003SP, AR3006, AR3006SP, AR3100, AR3100G, AR3100SP, AR3100SP1, AR3100SP2, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3101, AR3103, AR3103SP, AR3104, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3106, AR3106SP, AR3107, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3140, AR3140G, AR3140W, AR3150, AR3150SP, AR3150SP1, AR3150SP2, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3200, AR3300, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307, AR3307SP, AR3307W, AR3307X609, AR3307X610, AR3307X617, AR3340, AR3340G, AR3340W, AR3347, AR3350, AR3350SP, AR3350W, AR3350X609, AR3350X610, AR3350X617, AR3355, AR3355SP, AR3355W, AR3357, AR3357SP, AR3357X609, AR3357X610, AR3357X617, AR3357X674, AR4018, AR4018A, AR4018I, AR4018IA, AR4018IX429, AR4018IX431, AR4018IX432, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4018X429, AR4018X431, AR4018X432, AR4024, AR4024A, AR4024I, AR4024IA, AR4024IX429, AR4024IX431, AR4024IX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4024X429, AR4024X431, AR4024X432, AR4038, AR4038A, AR4038I, AR4038IA, AR4038IX429, AR4038IX431, AR4038IX432, AR4038X432, AR7007, AR7050, AR7057, AR9300SP, AR9300SP-R, AR9307SP, AR9307SP-R, NBWL0356A
