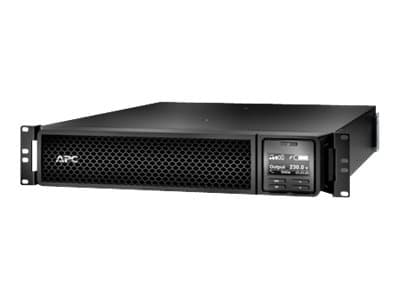

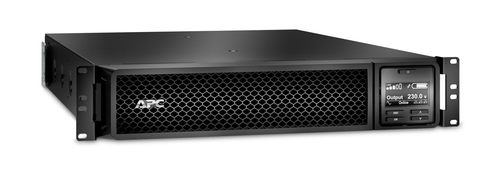

APC Smart-UPS SRT 3000VA RM
UPS (rack-mountable / external)
AC 220/230/240 V
2700 Watt
3000 VA
Lead Acid
RS-232, USB
output connectors: 10
2U
black
with APC UPS Network Management Card AP9641
for P/N: AR4018SPX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, NBWL0356A
Weight: 46.00 KG

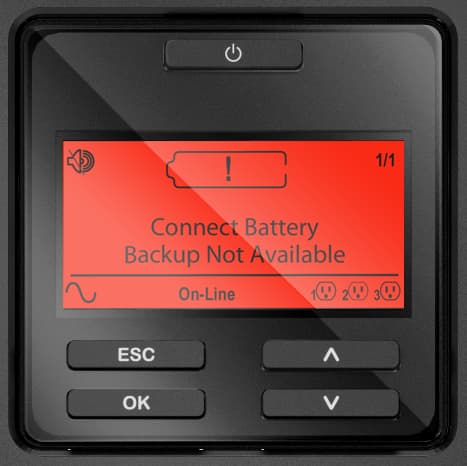

- Battery failure notification
- ECO mode
- Green mode
- LCD graphics display
- Rack/Tower convertible
Similar Products
Overview

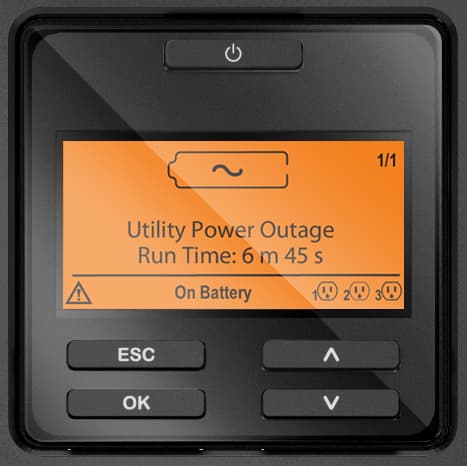

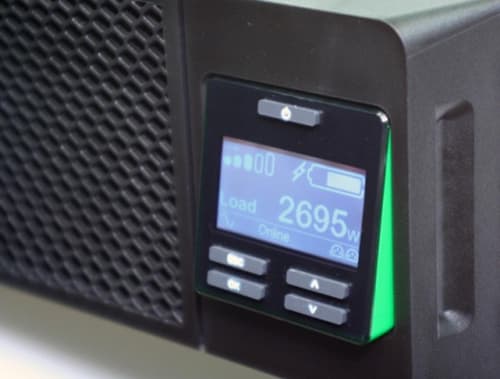

Provides early-warning fault analysis on batteries enabling timely preventive maintenance. ECO mode by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection. Green mode bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection. Text and mimic diagrams display modes of operation, system parameters and alarms. Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
Specifications
Features
- UPS topology
- Double-conversion (Online)
- Output power capacity
- 3 kVA
- Output power
- 2700 W
- Waveform
- Sine
- Input operation voltage (min)
- 100 V
- Input operation voltage (max)
- 275 V
- Input frequency
- 40 - 70 Hz
- Output operation voltage (min)
- 220 V
- Output operation voltage (max)
- 240 V
- Output frequency
- 50/60 Hz
- Automatic Voltage Regulation (AVR)
- Yes
- Surge energy rating
- 340 J
- Efficiency
- 92%
- Crest factor
- 3:1
- Emergency Power Off (EPO)
- Yes
- Output voltage Total Harmonic Distortion (THD)
- 2%
- Noise level
- 55 dB
- Surge protection
- Yes
- Power protection features
- Overload
- Audible alarm(s)
- Yes
- Audible alarm modes
- Battery replacement
- Auto-restart
- Yes
- Output power capacity
- 3 kVA kVA
- Output power
- 2700 W W
- Input operation voltage (min)
- 100 V V
- Input operation voltage (max)
- 275 V V
- Input frequency
- 40 - 70 Hz Hz
- Output operation voltage (min)
- 220 V V
- Output operation voltage (max)
- 240 V V
- Output frequency
- 50/60 Hz Hz
- Surge energy rating
- 340 J J
- Efficiency
- 92% %
- Output voltage Total Harmonic Distortion (THD)
- 2% %
- Noise level
- 55 dB dB

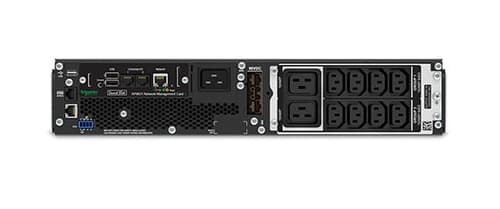

Ports & interfaces
- AC outlet types
- C13 coupler, C19 coupler
- Power plug
- C20 coupler
- USB port
- Yes
- Serial interface
- Yes
- Serial interface type
- RJ-45
- SmartSlot
- Yes
Battery
- Battery technology
- Sealed Lead Acid (VRLA)
- Battery capacity
- 505 VAh

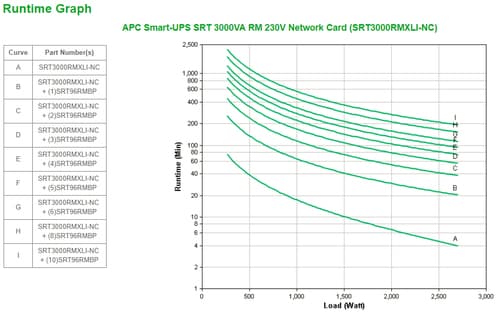

- Typical backup time at full load
- 4 min
- Typical backup time at half load
- 11.8 min
- Battery life (max)
- 5 year(s)
- Battery recharge time
- 3 h
- Hot-swap battery
- Yes
- Automatic battery test
- Yes
- Cold start
- Yes
- Battery capacity
- 505 VAh VAh
- Typical backup time at full load
- 4 min min
- Typical backup time at half load
- 11.8 min min
- Battery life (max)
- 5 year(s) year(s)
- Battery recharge time
- 3 h h
Design
- Form factor
- Rackmount
- Product colour
- Black
- Rack capacity
- 2U
- Cable length
- 2.44 m
- Display type
- LCD
- LED indicators
- Battery replacement
- International Protection (IP) code
- IP20
- Cable length
- 2.44 m m
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 15000 m
- Operating temperature (T-T)
- 0 - 40 °C °C
- Storage temperature (T-T)
- -15 - 45 °C °C
- Operating relative humidity (H-H)
- 0 - 95% %
- Storage relative humidity (H-H)
- 0 - 95% %
- Operating altitude
- 0 - 3000 m m
- Non-operating altitude
- 0 - 15000 m m
Certificates
- Compliance certificates
- RoHS
- Certification
- CE, VDE, RCM, EAC, IEC/EN 62040-1, IEC/EN 62040-2, UL-1778, FCC 15 A, CSA
Packaging content
- Quick installation guide
- Yes
Sustainability
- Sustainability certificates
- Green Premium
Weight & dimensions
- Width
- 432 mm
- Depth
- 635 mm
- Height
- 85 mm
- Weight
- 31.3 kg
- Width
- 432 mm mm
- Depth
- 635 mm mm
- Height
- 85 mm mm
- Weight
- 31.3 kg kg
Packaging data
- Package width
- 599 mm
- Package depth
- 871 mm
- Package height
- 246 mm
- Package weight
- 39.3 kg
- Package width
- 599 mm mm
- Package depth
- 871 mm mm
- Package height
- 246 mm mm
- Package weight
- 39.3 kg kg
Logistics data
- Products per pallet
- 6 pc(s)
- Harmonized System (HS) code
- 85078000
- Total carbon footprint (kg of CO2e)
- 4988.41
- Products per pallet
- 6 pc(s) pc(s)
Other features
- Output voltage
- 230 V
- Output voltage
- 230 V V
Power Device
- Input Voltage
- AC 220/230/240 V
- Power Capacity
- 2700 Watt / 3000 VA
- Input Voltage Range
- AC 160 - 275 V
General
- Device Type
- UPS - rack-mountable / external
