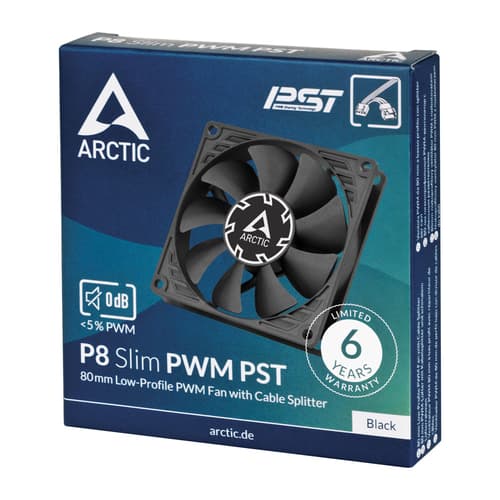

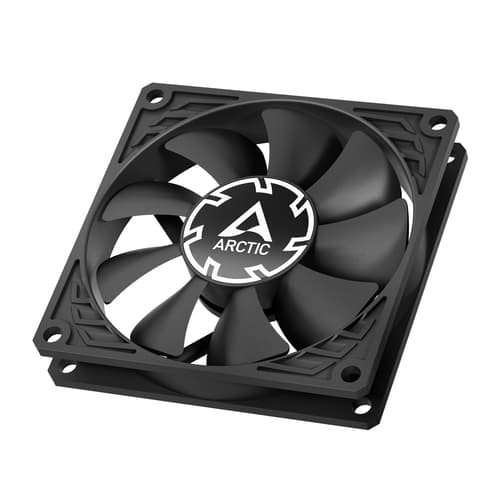

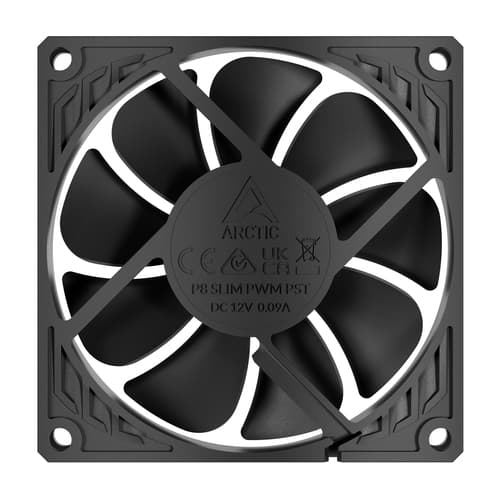

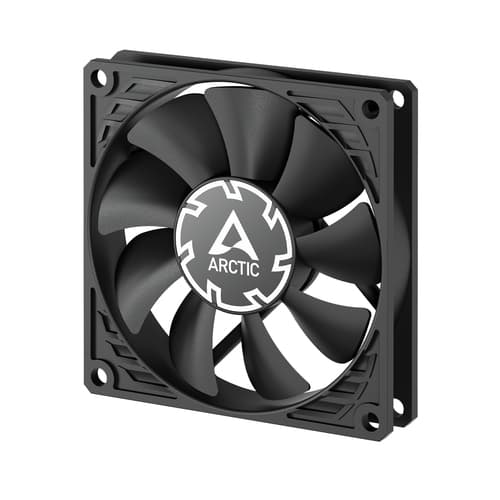

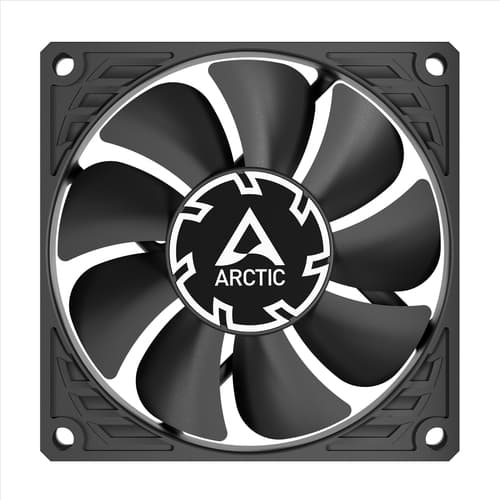

ARCTIC P8 SLIM 80MM PST FAN
ARCTIC P8 Slim PWM PST - 80 mm Low-Profile PWM Fan with Cable Splitter. Type: Fan, Fan diameter: 8 cm, Airflow: 38.23 m³/h, Bearing type: Fluid Dynamic Bearing (FDB). Product colour: Black
Similar Products
Overview
ARCTIC P8 Slim PWM PST - 80 mm Low-Profile PWM Fan with Cable Splitter, Fan, 8 cm, 38.23 m³/h, Black
Specifications
Performance
- Suitable location
- Computer case
- Type
- Fan
- Fan diameter
- 8 cm cm
- Maximum airflow
- 22.5 cfm cfm
- Airflow
- 38.23 m³/h m³/h
- Pulse-width modulation (PWM) support
- Yes
- Bearing type
- Fluid Dynamic Bearing (FDB)
- Quantity per pack
- 1 pc(s) pc(s)
- Fan speed (min)
- 300 RPM RPM
- Fan speed (max)
- 3000 RPM RPM
- Fan static pressure
- 2.35 mmH2O mmH2O
- Operating temperature (T-T)
- 0 - 40 °C °C
Design
- Product colour
- Black
- Fan connector
- 4-pin + 4-pin
Power
- Starting voltage
- 6.9 V V
- Fan voltage
- 12 V V
- Fan current
- 0.095 A A
Weight & dimensions
- Fan dimensions (W x D x H)
- 80 x 80 x 15 mm mm
- Fan weight
- 45 g g
- Cable length
- 0.48 m m
- Package width
- 83 mm mm
- Package depth
- 89 mm mm
- Package height
- 17 mm mm
- Package weight
- 67 g g
Packaging content
- Package type
- Hanging box
Other features
- Country of origin
- Hong Kong
Optimal for HTPC, SBC and Slim Systems
Thanks to its low installation height of 15 mm and highly energy-efficient operation, the P8 Slim PWM PST is suitable for use in small PCs such as single-board computers and the entire SFF range.
300 to 3000 rpm Controlled via PWM PST
With a wide speed range and innovative PWM Sharing Technology (PST), the P8 Slim PWM PST's fan speed can be controlled in sync with other fans. ARCTIC's PST fans come equipped with their own built-in daisy-chain solution, and, in addition to the plug-in connector, have another socket to which an additional fan or up to four other PST fans can be connected in series.
Ideal for Small Spaces
Unlike standard 80 mm case fans with a thickness of 25 mm, the P8 Slim PWM PST has a mounting height of only 15 mm. This makes it the ideal choice for Small Form Factor (SFF) builds.
Optimised for High Static Pressure
Because the fan design of the P8 Slim PWM PST is optimised for focused airflow, it generates high static pressure. The fan enables extremely efficient cooling and good airflow — even with increased air resistance. This makes the P8 Slim PWM PST particularly well-suited for use on concealed case intakes, dust filters, radiators, and generally in small cases that have little space for free airflow due to compactly placed hardware.
Maximum Smoothness, Minimum Vibration
The operating noise of the newly-developed ARCTIC motor is barely perceptible, even at the lowest speed. Thanks to its special magnetization, the motor of the P-fans generates no start-up jerks and only a fraction of the commutation vibrations of a conventional DC motor. As a result, there is far less vibration on the housing at different speeds and no need for rubber buffering or additional decoupling.
High-Quality Sleeve Bearing
Thanks to a combination of alloy and lubricant developed in Germany, friction within the bearing is minimized and greater efficiency is achieved. In addition to preventing lubricant loss, wear on the pin and sleeve is also reduced to a minimum. Less heat is developed, less bearing noise is generated and the life of the fan is extended significantly.
Improved Service Life
The new ARCTIC motor generates significantly less frictional heat than its predecessors and current competitor models. The lower coil temperature therefore multiplies the service life and reduces frictional losses for more efficient operation.
Quality You Can Rely On
To ensure the longevity of our products, we carry out long-term tests under different, sometimes very adverse conditions. In this way, we learn how we can permanently improve our products for our customers. In addition, the excellent results of long-term testing give us the assurance that our products are not only outstanding in terms of quality, but also in terms of durability. This is a certainty that we are happy to pass on to our customers, which is why we give a 6-year manufacturer's guarantee.
