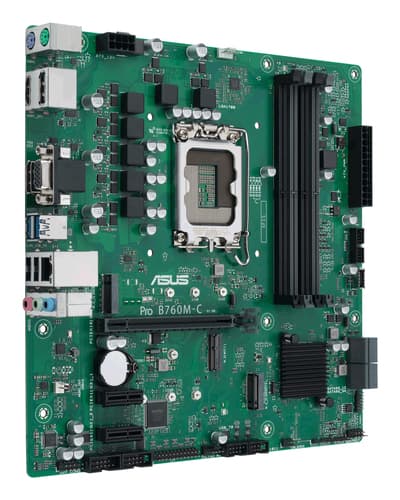

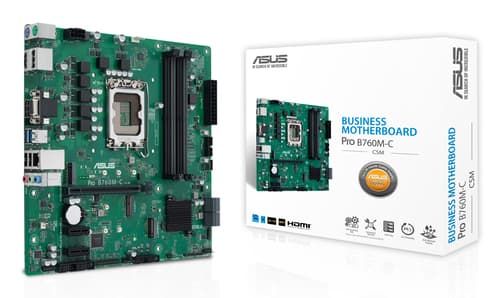

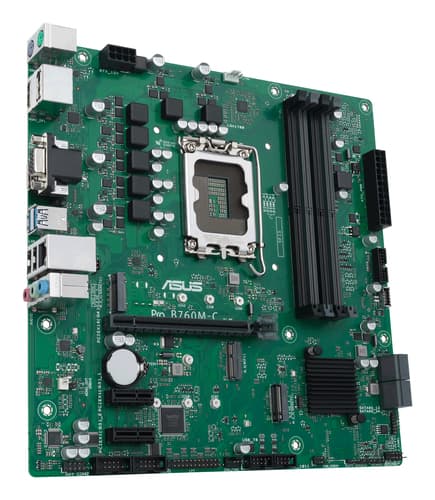

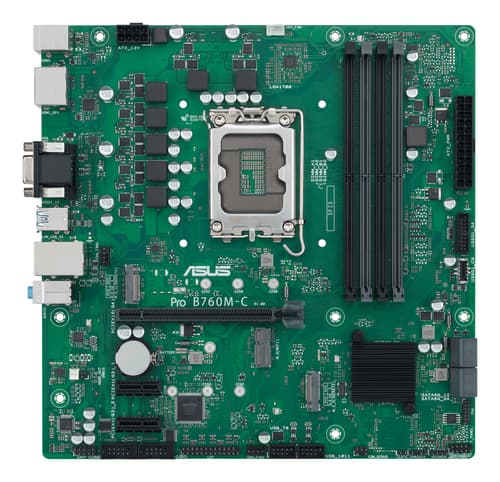

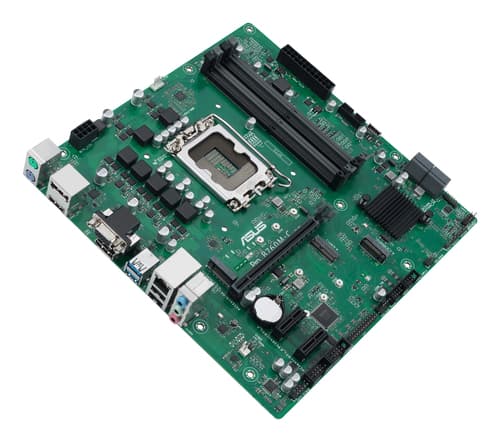

ASUS MOBO MBA
- Intel® LGA 1700 socket: Ready for 13th Gen Intel Core™ processors
- ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
- ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
- Enhanced system security: A self-recovering BIOS
- Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments
- Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance
- Better serviceability: Q-LED Core diagnostic display and COM debug header to facilitate building and support processes
- Ultrafast connectivity: PCIe 4.0, DDR5, front USB 3.2 Gen 1 Type-C®
Similar Products
Overview
ASUS PRO B760M-C-CSM, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., LGA 1700, DDR5-SDRAM, 128 GB
Specifications
Processor
- Processor manufacturer
- Intel
- Processor socket
- LGA 1700
- Compatible processor series
- Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®, Intel® Pentium® Gold
- Supported processor sockets
- LGA 1700
Features
- Motherboard chipset
- Intel B760
- Audio output channels
- 7.1 channels channels
- Cooling type
- Passive
- Power source type
- ATX
- Windows operating systems supported
- Windows 10, Windows 11
- Component for
- PC
- Motherboard form factor
- micro ATX
- Motherboard chipset family
- Intel
Expansion slots
- PCI Express x1 (Gen 3.x) slots
- 2
- PCI Express x16 (Gen 4.x) slots
- 1
- Number of M.2 (M) slots
- 2
BIOS
- BIOS memory size
- 128 Mbit Mbit
Weight & dimensions
- Width
- 244 mm mm
- Depth
- 244 mm mm

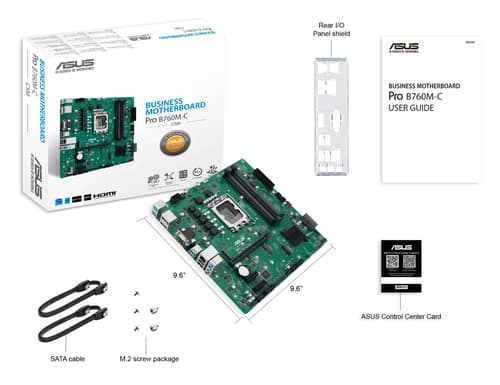

Packaging content
- Cables included
- SATA
- User guide
- Yes
Memory
- Supported memory types
- DDR5-SDRAM
- Number of memory slots
- 4
- Maximum internal memory
- 128 GB GB
- Memory slots type
- DIMM
- Memory channels
- Dual-channel
- ECC сompatibility
- Non-ECC
- Supported memory clock speeds
- 4800,5000,5200,5400,5600,5800,6000,6200 MHz MHz
- Supported memory clock speed (max)
- 6200 MHz MHz
- Unbuffered memory
- Yes
Storage controllers
- Supported storage drive interfaces
- M.2, SATA III
- Supported storage drive types
- HDD & SSD
- Number of HDDs supported
- 4
- Number of storage drives supported
- 6
- RAID support
- Yes
- RAID levels
- 0, 1, 5, 10
Graphics
- Parallel processing technology support
- Not supported
Internal I/O
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 2
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 0
- Number of SATA III connectors
- 4
- Front panel audio connector
- Yes
- ATX Power connector (24-pin)
- Yes
- CPU fan connector
- Yes
- Number of chassis fan connectors
- 2
- Chassis intrusion connector
- Yes
- EPS power connector (8-pin)
- Yes
- Number of COM connectors
- 1
- TPM connector
- Yes
- 12V power connector
- Yes
Rear panel I/O ports
- USB 2.0 ports quantity
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
- 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 0
- Ethernet LAN (RJ-45) ports
- 1
- VGA (D-Sub) ports quantity
- 1
- HDMI ports quantity
- 1
- DVI-D ports quantity
- 0
- PS/2 ports quantity
- 2
- HDMI version
- 2.1
- DisplayPorts quantity
- 2
- DisplayPort version
- 1.4
- Headphone outputs
- 1
- Line-in
- Yes
- Microphone in
- Yes
Network
- Wi-Fi
- No
- Ethernet LAN
- Yes
- Ethernet interface type
- Gigabit Ethernet
