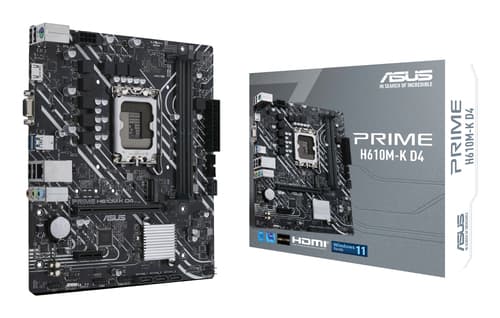

ASUS PRIME H610M-K D4 - Motherboard - micro ATX - LGA1700 Socket - H610 Chipset - USB 3.2 Gen 2, USB 3.2 Gen 1 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Manuf P/N: 90MB1A10-M0EAY0
APAXON#: 7296268
EAN: 4711081565499
ASUS PRIME H610M-K D4 - Motherboard - micro ATX - LGA1700 Socket - H610 Chipset - USB 3.2 Gen 2, USB 3.2 Gen 1 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
- BIOS type: UEFI AMI 128 Mbit
- Gigabit Ethernet
- Intel LGA 1700 IntelĀ® CeleronĀ®, IntelĀ® Coreā¢ i3, IntelĀ® Coreā¢ i5, IntelĀ® Coreā¢ i7, IntelĀ® Coreā¢ i9, IntelĀ® PentiumĀ®, IntelĀ® PentiumĀ® Gold
- PC micro ATX Intel H610 7.1 channels
- DDR4-SDRAM 2 DIMM Maximum internal memory: 64 GB
- HDD & SSD M.2, SATA
Stock92
Price Ā£61.19
Quantity
|
Similar Products
ASUS PRIME H610M-K D4 - Motherboard - micro ATX - LGA1700 Socket - H610 Chipset - USB 3.2 Gen 2, USB 3.2 Gen 1 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Your Choice
ā
ā
ā
ā
Stock92
Ā£61.19
ASUS ROG CROSSHAIR X670E HERO - Motherboard - ATX - Socket AM5 - AMD X670E Chipset - USB4, USB-C 3.2 Gen 2x2, USB 3.2 Gen 2, USB-C 3.2 Gen2, USB 3.1 Gen 1 - 2.5 Gigabit LAN, Wi-Fi 6E, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
Cheaper
ā
ā
ā
ā
Stock0
Ā£0.00
Product Summary
ASUS PRIME H610M-K D4 Intel H610 LGA 1700 micro ATX
Extended Specification
Group 13324
Motherboard chipset
Intel H610
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Audio output channels
7.1 channels
Component for
PC
Motherboard form factor
micro ATX
Motherboard chipset family
Intel
Group 4189
PCI Express x16 (Gen 3.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
Number of M.2 (M) slots
1
Group 4754
BIOS type
UEFI AMI
BIOS memory size
128 Mbit
Group 35800
Harmonized System (HS) code
84733020
Group 1019
Width
234 mm
Depth
203 mm
Height
51 mm
Group 4753
Cables included
SATA
Drivers included
Yes
Group 7333
Weight
842 g
Group 2206
DVI-D ports quantity
0
HDMI version
2.1
Headphone outputs
1
Microphone in
Yes
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Ethernet LAN (RJ-45) ports
1
VGA (D-Sub) ports quantity
1
HDMI ports quantity
1
PS/2 ports quantity
1
Group 2764
Wi-Fi
No
Ethernet LAN
Yes
Ethernet interface type
Gigabit Ethernet
Group 1382
Processor manufacturer
Intel
Processor socket
LGA 1700
Compatible processor series
IntelĀ® CeleronĀ®, IntelĀ® Coreā¢ i3, IntelĀ® Coreā¢ i5, IntelĀ® Coreā¢ i7, IntelĀ® Coreā¢ i9, IntelĀ® PentiumĀ®, IntelĀ® PentiumĀ® Gold
Maximum number of SMP processors
1
Group 1020
Supported memory types
DDR4-SDRAM
Number of memory slots
2
Maximum internal memory
64 GB
Memory slots type
DIMM
Memory channels
Dual-channel
ECC Ńompatibility
Non-ECC
Supported memory clock speeds
2133,2400,2666,2800,2933,3000,3200 MHz
Unbuffered memory
Yes
Group 27949
Supported storage drive interfaces
M.2, SATA
Supported storage drive types
HDD & SSD
RAID levels
0, 1, 5, 10
Group 11085
Number of displays supported
2
Group 2207
USB 2.0 connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
S/PDIF out connector
Yes
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of chassis fan connectors
1
EPS power connector (8-pin)
Yes
Number of COM connectors
1
TPM connector
Yes
12V power connector
Yes
RGB LED pin header
Yes
