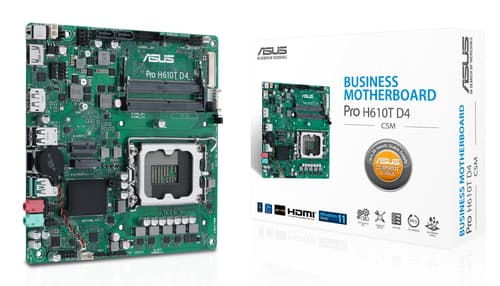

ASUS Pro H610T D4-CSM - Motherboard - Thin mini ITX - LGA1700 Socket - H610 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Manuf P/N: 90MB1AM0-M0EAYC
APAXON#: 8570729
EAN: 4711081679851
ASUS Pro H610T D4-CSM - Motherboard - Thin mini ITX - LGA1700 Socket - H610 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
- Intel LGA 1700 IntelĀ® CeleronĀ®, IntelĀ® Coreā¢ i3, IntelĀ® Coreā¢ i5, IntelĀ® Coreā¢ i7, IntelĀ® Coreā¢ i9, IntelĀ® PentiumĀ®
- PC mini ITX Intel H610 7.1 channels
- DDR4-SDRAM 2 SO-DIMM Maximum internal memory: 64 GB
- HDD & SSD M.2, SATA III
- BIOS type: UEFI AMI 128 Mbit
- Gigabit Ethernet
Stock66
Price Ā£89.81
Quantity
|
Similar Products
ASUS Pro H610T D4-CSM - Motherboard - Thin mini ITX - LGA1700 Socket - H610 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Your Choice
ā
ā
ā
ā
Stock66
Ā£89.81

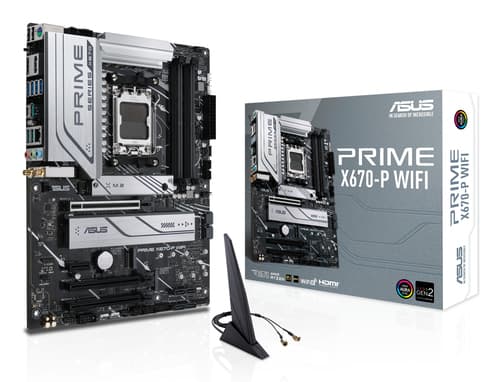

ASUS Prime X670-P WIFI - Motherboard - ATX - Socket AM5 - AMD X670 Chipset - USB-C 3.2 Gen 1, USB-C Gen 2x2, USB 3.2 Gen 1, USB 3.2 Gen 2 - 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
Cheaper
ā
ā
ā
ā
Stock14
Ā£0.00
ASUS ROG Strix X670E-F Gaming WiFi - Motherboard - ATX - Socket AM5 - AMD X670E Chipset - USB-C 3.2 Gen 2x2, USB 3.2 Gen 1, USB-C 3.2 Gen2, USB 3.2 Gen 2 - 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
Cheaper
ā
ā
ā
ā
Stock0
Ā£0.00
Product Summary
ASUS Pro H610T D4-CSM Intel H610 LGA 1700 mini ITX
Extended Specification
Group 1382
Processor manufacturer
Intel
Processor socket
LGA 1700
Compatible processor series
IntelĀ® CeleronĀ®, IntelĀ® Coreā¢ i3, IntelĀ® Coreā¢ i5, IntelĀ® Coreā¢ i7, IntelĀ® Coreā¢ i9, IntelĀ® PentiumĀ®
Maximum number of SMP processors
1
Group 1020
Supported memory types
DDR4-SDRAM
Number of memory slots
2
Maximum internal memory
64 GB
Memory slots type
SO-DIMM
Memory channels
Dual-channel
ECC Ńompatibility
Non-ECC
Supported memory clock speeds
2133,2400,2666,2800,2933,3200 MHz
Unbuffered memory
Yes
Group 27949
Supported storage drive interfaces
M.2, SATA III
Supported storage drive types
HDD & SSD
Group 11085
Parallel processing technology support
Not supported
Group 2207
USB 2.0 connectors
3
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
2
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Chassis intrusion connector
Yes
Number of COM connectors
1
TPM connector
Yes
Group 2206
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Ethernet LAN (RJ-45) ports
1
VGA (D-Sub) ports quantity
0
HDMI ports quantity
1
HDMI version
2.1
DisplayPorts quantity
1
DisplayPort version
1.4
Group 2764
Wi-Fi
No
Ethernet LAN
Yes
Ethernet interface type
Gigabit Ethernet
Wake-on-LAN ready
Yes
Group 13324
Component for
PC
Motherboard form factor
mini ITX
Motherboard chipset family
Intel
Motherboard chipset
Intel H610
Audio output channels
7.1 channels
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Group 4189
Number of M.2 (M) slots
1
Group 4754
BIOS type
UEFI AMI
BIOS memory size
128 Mbit
Group 35800
Harmonized System (HS) code
84733020
Group 1019
Width
170 mm
Depth
170 mm
Height
221 mm
Group 4753
Cables included
SATA
Drivers included
Yes
Group 7333
Weight
382 g
