This product is out of stock
We can email you when it's back in stock, confirm expected lead times, or recommend in-stock alternatives that meet the same requirements.

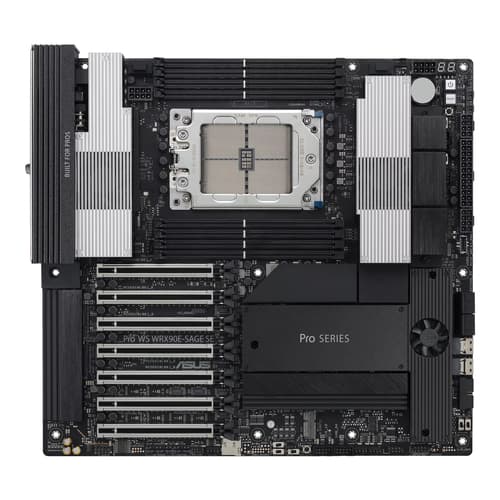

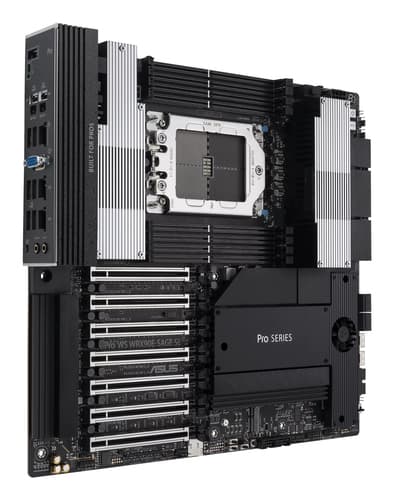

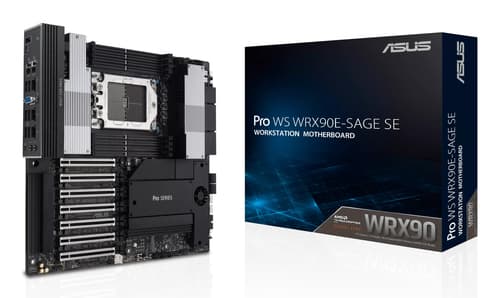

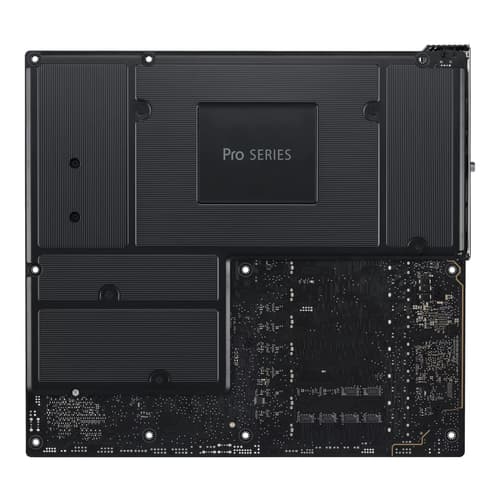

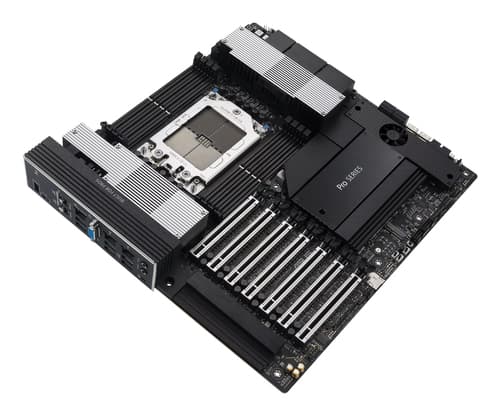

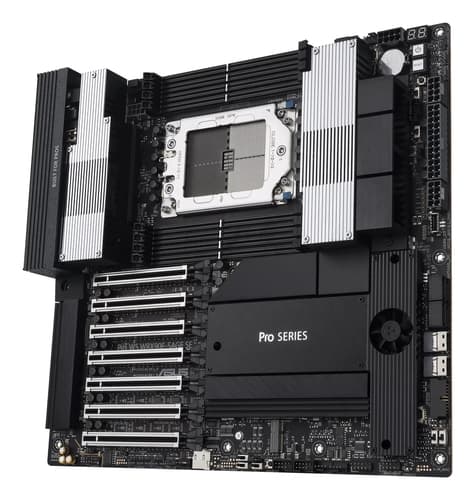

ASUS PRO WS WRX90E-SAGE SE - Motherboard - SSI EEB AST2600 - Socket sTR5 - AMD WRX90 Chipset - USB 3.2 Gen 1, USB-C 3.2 Gen 2x2, USB4 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (6-channel)
- AMD sTR5 socket supports up to 96-core CPUs: Ready for AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors
- CPU and memory overclocking: Support for up to 2 TB ECC R-DIMM DDR5 memory modules (1DPC)
- Robust power and thermal design: 32+3+3+3 power stages with two 8-pin power connectors for the CPU, massive VRM cooling, chipset and M.2 heatsinks with active fans, and M.2 thermal pad
- PCIe Q-release Slim: Remove the graphics card by directly pulling it up, instead of pressing a PCIe latch
- Trusted stability: Validated for extensive compatibility with the latest technologies, an expansive QVL list, and tested for 24/7 operation
- Ultrafast connectivity: Seven PCIe® 5.0 x16 slots, dual 10 Gb LAN ports, four M.2 slots, two rear USB4® 40Gbps Type-C® and SlimSAS NVMe support
- Server-grade IPMI remote management and onboard BMC: Hardware and software-level with a dedicated LAN port link to an onboard AST2600 BMC controller, plus ASUS Control Center Express software for real-time monitoring and management
Similar Products
Overview
ASUS PRO WS WRX90E-SAGE SE, AMD, Socket sTR5, AMD Ryzen Threadripper PRO 7000 WX-Series, DDR5-SDRAM, 2 TB, DIMM
Specifications
Processor
- Processor manufacturer
- AMD
- Processor socket
- Socket sTR5
- Compatible processor series
- AMD Ryzen Threadripper PRO 7000 WX-Series
Memory
- Supported memory types
- DDR5-SDRAM
- Number of memory slots
- 8
- Maximum internal memory
- 2 TB TB
- Memory slots type
- DIMM
- Memory channels
- Octa-channel
- ECC сompatibility
- ECC
Internal I/O
- Number of chassis fan connectors
- 5
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- Front panel audio connector
- Yes
- TPM connector
- Yes
- USB 2.0 connectors
- 2
- Number of SATA II connectors
- 0
- ATX Power connector (24-pin)
- Yes
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 0
- USB 3.2 Gen 2x2 connectors
- 1
- CPU fan connector
- Yes
- Chassis intrusion connector
- Yes
- Number of SATA III connectors
- 4
- Number of SATA connectors
- 0
- EPS power connector (8-pin)
- Yes
- Number of COM connectors
- 1
Network
- Ethernet LAN
- Yes
- Ethernet interface type
- 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
- Wi-Fi
- No
Rear panel I/O ports
- USB 2.0 ports quantity
- 1
- VGA (D-Sub) ports quantity
- 1
- DVI-D ports quantity
- 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 0
- Ethernet LAN (RJ-45) ports
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 0
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
- 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 6
- USB4 Gen 3x2 ports quantity
- 2
- HDMI ports quantity
- 0
- USB connector type
- USB Type-A, USB Type-C
Storage controllers
- Supported storage drive types
- HDD & SSD
- Number of HDDs supported
- 4
- Number of storage drives supported
- 10
- RAID support
- Yes
- RAID levels
- 0, 1, 5, 10
- Supported storage drive interfaces
- M.2, SATA III, SlimSAS
Graphics
- On-board graphics card
- No
Expansion slots
- PCI Express x16 (Gen 5.x) slots
- 7
- Number of M.2 (M) slots
- 4
Weight & dimensions
- Width
- 305 mm mm
- Height
- 50 mm mm
- Depth
- 330 mm mm
BIOS
- BIOS memory size
- 256 Mbit Mbit
- BIOS type
- UEFI AMI
- Clear CMOS button
- Yes
Packaging data
- Package height
- 79 mm mm
- Package width
- 377 mm mm
- Package weight
- 3.62 kg kg
- Package depth
- 362 mm mm
Features
- Motherboard chipset family
- AMD
- Audio chip
- Realtek ALC1220P
- Motherboard chipset
- AMD WRX90
- Component for
- Workstation
- Product colour
- Aluminium, Black
- Windows operating systems supported
- Windows 10 x64, Windows 11
- Motherboard form factor
- EEB
Other features
- Weight
- 3.33 kg kg
- mSATA ports quantity
- 0
- Mini DisplayPorts quantity
- 2
