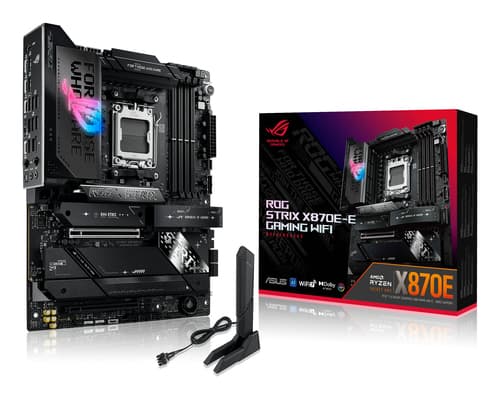

ASUS ROG STRIX X870E-E GAMING WIFI - Motherboard - ATX - Socket AM5 - AMD X870E Chipset - USB4, USB-C 3.2 Gen 2x2, USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1 - Wi-Fi 7, 5 Gigabit Ethernet, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)

Manuf P/N: 90MB1IB0-M0EAY0

APAXON#: 10455586

EAN: 4711387724163

AMD Socket AM5
PC ATX AMD X870E Realtek ALC4080 7.1 channels
DDR5-SDRAM 4 DIMM Maximum internal memory: 192 GB
HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 9
BIOS type: UEFI AMI 256 Mbit Clear CMOS button
5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4

Stock217

Price £442.02

Quantity

Notify me when available.

Product Summary

ASUS ROG STRIX X870E-E GAMING WIFI AMD X870E Socket AM5 ATX

Extended Specification

Group 1382

Processor manufacturer

AMD

Processor socket

Socket AM5

Supported processor sockets

Socket AM5

Group 1020

Supported memory types

DDR5-SDRAM

Number of memory slots

Maximum internal memory

192 GB

Memory slots type

DIMM

Memory channels

Dual-channel

ECC сompatibility

ECC & Non-ECC

Unbuffered memory

Yes

Group 27949

Supported storage drive interfaces

M.2, SATA III

Supported storage drive types

HDD & SSD

Number of HDDs supported

Number of storage drives supported

RAID support

Yes

RAID levels

0, 1, 10, 5

Group 11085

Parallel processing technology support

Not supported

On-board graphics card

Group 2207

USB 2.0 connectors

USB 3.2 Gen 1 (3.1 Gen 1) connectors

USB 3.2 Gen 2 (3.1 Gen 2) connectors

Number of SATA III connectors

USB 3.2 Gen 2x2 connectors

Number of SATA II connectors

Number of SATA connectors

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Number of chassis fan connectors

12V power connector

Yes

Group 2206

USB 2.0 ports quantity

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

Ethernet LAN (RJ-45) ports

VGA (D-Sub) ports quantity

HDMI ports quantity

DVI-D ports quantity

USB 3.2 Gen 2x2 Type-C ports quantity

USB4 Gen 2x2 ports quantity

Headphone outputs

Microphone in

Yes

S/PDIF out port

Yes

WiFi-AP antenna jack

Group 2764

Wi-Fi

Yes

Ethernet LAN

Yes

Ethernet interface type

5 Gigabit Ethernet

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Wi-Fi standards

Wi-Fi 7 (802.11be)

Bluetooth

Yes

Bluetooth version

5.4

Group 13324

Component for

Motherboard form factor

ATX

Motherboard chipset family

AMD

Motherboard chipset

AMD X870E

Audio output channels

7.1 channels

Audio chip

Realtek ALC4080

Product colour

Black

Windows operating systems supported

Windows 11 x64

Group 4189

PCI Express x16 (Gen 4.x) slots

PCI Express x16 (Gen 5.x) slots

Number of M.2 (M) slots

Group 4754

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Clear CMOS button

Yes

Group 72243

Package width

365 mm

Package depth

281 mm

Package height

87 mm

Package weight

3.02 kg

Group 1019

Width

305 mm

Depth

244 mm

Height

50 mm

Group 4753

Cables included

SATA

Group 7333

mSATA ports quantity

Weight

2.06 kg

ASUS ROG STRIX X870E-E GAMING WIFI - Motherboard - ATX - Socket AM5 - AMD X870E Chipset - USB4, USB-C 3.2 Gen 2x2, USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1 - Wi-Fi 7, 5 Gigabit Ethernet, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
