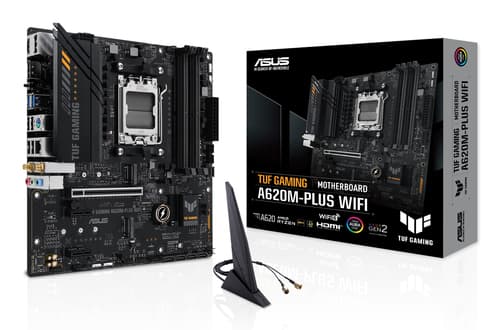

ASUS TUF GAMING A620M-PLUS WIFI - Motherboard - micro ATX - Socket AM5 - AMD A620 Chipset - USB 3.2 Gen 1, USB-C 3.2 Gen 1 - Gigabit LAN, 2.5 Gigabit LAN, Bluetooth, Wi-Fi - onboard graphics (CPU required) - HD Audio (8-channel)
Manuf P/N: 90MB1F00-M0EAY0
APAXON#: 8324405
EAN: 4711387164266
ASUS TUF GAMING A620M-PLUS WIFI - Motherboard - micro ATX - Socket AM5 - AMD A620 Chipset - USB 3.2 Gen 1, USB-C 3.2 Gen 1 - Gigabit LAN, 2.5 Gigabit LAN, Bluetooth, Wi-Fi - onboard graphics (CPU required) - HD Audio (8-channel)
- AMD Socket AM5 AMD Ryzen 7000 Series
- PC micro ATX AMD A620 7.1 channels
- DDR5-SDRAM 4 Maximum internal memory: 128 GB
- HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 6
- BIOS type: UEFI AMI 256 Mbit
- 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet Wi-Fi Wi-Fi 6 (802.11ax) Bluetooth 5.3
Stock287
Price £106.49
Quantity
|
Similar Products
Product Summary
ASUS TUF GAMING A620M-PLUS WIFI AMD A620 Socket AM5 micro ATX
Extended Specification
Group 1382
Processor manufacturer
AMD
Processor socket
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series
Group 1020
Supported memory types
DDR5-SDRAM
Number of memory slots
4
Maximum internal memory
128 GB
Memory channels
Dual-channel
ECC сompatibility
ECC & Non-ECC
Supported memory clock speeds
4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz
Unbuffered memory
Yes
Group 27949
Supported storage drive interfaces
M.2, SATA III
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
Number of storage drives supported
6
RAID support
Yes
RAID levels
0, 1, 10
Group 11085
On-board graphics card
No
Group 2207
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Number of SATA II connectors
0
Number of SATA connectors
0
S/PDIF out connector
Yes
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of chassis fan connectors
2
EPS power connector (8-pin)
Yes
Number of COM connectors
1
12V power connector
Yes
RGB LED pin header
Yes
Group 2206
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Ethernet LAN (RJ-45) ports
1
VGA (D-Sub) ports quantity
0
HDMI ports quantity
1
DVI-D ports quantity
0
PS/2 ports quantity
1
DisplayPorts quantity
2
Headphone outputs
1
Microphone in
Yes
Group 2764
Wi-Fi
Yes
Ethernet LAN
Yes
Ethernet interface type
2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth
Yes
Bluetooth version
5.3
Group 13324
Component for
PC
Motherboard form factor
micro ATX
Motherboard chipset family
AMD
Motherboard chipset
AMD A620
Audio output channels
7.1 channels
Cooling type
Passive
Windows operating systems supported
Windows 10 x64, Windows 11
Group 4189
PCI Express x1 (Gen 3.x) slots
2
Number of M.2 (M) slots
2
Group 4754
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Group 72243
Package width
275 mm
Package depth
275 mm
Package height
67.5 mm
Package weight
920 g
Group 1019
Width
244 mm
Depth
244 mm
Height
50 mm
Group 7333
mSATA ports quantity
0
Weight
800 g
