This product is out of stock
We can email you when it's back in stock, confirm expected lead times, or recommend in-stock alternatives that meet the same requirements.

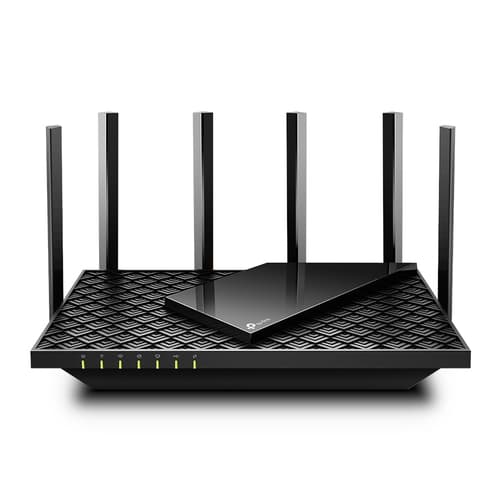

AX5400 DUAL-BAND WI-FI 6 ROUTER
- Premium security services keep your home network safe
- Equips with the top structure of 4T4R and HE160 on the 5 GHz band
- Supports mu-mimo and ofdma to reduce congestion
- Antennas and Beamforming ensure broad coverage
- Improved vents area unleash the full power of the whole machine
Similar Products
Overview
TP-Link Archer AX5400 Dual-Band Gigabit Wi-Fi 6 Router, Black, Wi-Fi 6 (802.11ax), Dual-band (2.4 GHz / 5 GHz), Ethernet LAN, Black, Portable router
Specifications
Network
- Port triggering
- Yes
- Ethernet LAN interface type
- Gigabit Ethernet
- Ethernet LAN data rates
- 10,100,1000 Mbit/s Mbit/s
- Cabling technology
- 10/100/1000Base-T(X)
- Ethernet LAN
- Yes
- Number of guest networks (2.4 GHz)
- 1
- Number of guest networks (5 GHz)
- 1
- Support Samba (storage)
- Yes
- Networking standards
- IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g
- Port forwarding
- Yes
- Built-in FTP server
- Yes
- Dynamic DNS (DDNS)
- Yes
- Media server
- Yes
WAN connection
- DSL WAN
- No
- SIM card slot
- No
- 3G/4G USB modem compatibility
- No
- WAN connection type
- RJ-45
- Ethernet WAN
- Yes
Wireless LAN features
- Wi-Fi band
- Dual-band (2.4 GHz / 5 GHz)
- Top Wi-Fi standard
- Wi-Fi 6 (802.11ax)
- WLAN data transfer rate (max)
- 5400 Mbit/s Mbit/s
- Wi-Fi standards
- Wi-Fi 4 (802.11n), 802.11b, 802.11a, 802.11g, Wi-Fi 5 (802.11ac)
- WLAN data transfer rate (first band)
- 4804 Mbit/s Mbit/s
- WLAN data transfer rate (second band)
- 574 Mbit/s Mbit/s
- Modulation
- 1024-QAM, OFDM
Security
- Firewall
- Yes
- Stateful Packet Inspection (SPI)
- Yes
- Parental control
- Yes
- IP address filtering
- Yes
- DMZ support
- Yes
- Network address translation (NAT)
- Yes
- Access Control List (ACL)
- Yes
- MAC address filtering
- Yes
- Security algorithms
- WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3
- DoS attack prevention
- Yes
- Filtering
- Yes
Packaging content
- AC adapter included
- Yes
- Cables included
- LAN (RJ-45)
- Quick installation guide
- Yes
- Packaging content
- 1 x TP-Link Archer AX5400 Dual-Band Gigabit Wi-Fi 6 Router, Black
Antenna
- Antennas quantity
- 6
- Antenna design
- External
Features
- Built-in processor
- Yes
- Processor frequency
- 1500 MHz MHz
- Processor cores
- 3
- Firmware upgradeable
- Yes
Operational conditions
- Storage temperature (T-T)
- -40 - 70 °C °C
- Operating temperature (T-T)
- 0 - 40 °C °C
- Operating relative humidity (H-H)
- 10 - 90% %
- Storage relative humidity (H-H)
- 5 - 90% %
Weight & dimensions
- Depth
- 147.2 mm mm
- Height
- 49.2 mm mm
- Width
- 272.5 mm mm
Ports & interfaces
- Ethernet LAN (RJ-45) ports
- 4
- USB port
- Yes
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 1
Management features
- MU-MIMO technology
- Yes
- Web-based management
- Yes
- Reset button
- Yes
- Quality of Service (QoS) support
- Yes
- WPS push button
- Yes
Power
- Output voltage
- 12 V V
- Output current
- 2.5 A A
- Power source type
- DC
Logistics data
- Harmonized System (HS) code
- 85176990
- Quantity per pack
- 1 pc(s) pc(s)
- Country of origin
- Malaysia
Protocols
- DHCP client
- Yes
- Universal Plug and Play (UPnP)
- Yes
- Supported network protocols
- IPv4, IPv6
Design
- Product type
- Portable router
- Product colour
- Black
- On/off switch
- Yes
Certificates
- Compliance certificates
- RoHS, Federal Communications Commission (FCC), CE
Packaging data
- Package depth
- 310 mm mm
- Package height
- 38 mm mm
- Package width
- 124 mm mm
- Package weight
- 800 g g
Sustainability
- Sustainability compliance
- Yes
