Compare D-Link Hubs & Switches
Comparing 5 products side-by-side — specifications, pricing and stock. Showing D-Link products in the Hubs & Switches category.
| Specification | |||||
|---|---|---|---|---|---|
| General | |||||
| Authentication Method | — | RADIUS, Secure Shell v.2 (SSH2), internal user database, Extensible Authentication Protocol (EAP) | — | RADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP) | RADIUS, Secure Shell v.2 (SSH2), internal user database, Extensible Authentication Protocol (EAP) |
| Capacity | — | IGMP groups: 256 QoS hardware queues per port: 8 ACL rules: 768 ARP entries: 64 | — | — | IGMP groups: 256, QoS hardware queues per port: 8, ACL rules: 256, ARP entries: 256, VLAN groups: 4094, IPv4 routing table entries: 32, IPv6 routing table entries: 16 |

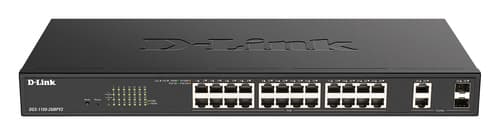

| Device Type | Switch - 26 ports - smart | Switch - 52 ports - Managed | — | — | — |
| Enclosure Type | Rack-mountable 1U | Desktop, rack-mountable 1U | — | Rack-mountable 1U | — |
| Encryption Algorithm | — | MD5, SSL, TLS, SSL 3.0, SSL 2.0, PEAP, TTLS | — | SSL, TLS, SSL 3.0, SSL 2.0, PEAP, TTLS | MD5, SSL, TLS, SSL 3.0, SSL 2.0, PEAP, TTLS |
| Features | Flow control, auto-negotiation, BOOTP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack prevention, port mirroring, Broadcast Storm Control, full duplex mode, Multicast Storm Control, Unicast Storm Control, STP support, RSTP support, QoS, Cable Diagnostics Function, bandwidth control, LLDP support, Port Security, DHCP client, 4.1MB packet buffer, tagged VLAN, DSCP support, IGMP querier, Voice VLAN, VLAN management, VLAN group, EEE, WRR, HOL Blocking Prevention, loopback detection, port-based VLAN, port-based QoS, Unknown Storm Control, DNA support, Asymmetric VLAN, Smart Fan | Flow control, full duplex capability, auto-negotiation, BOOTP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, WRR queuing, store and forward, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, STP support, RSTP support, DHCP snooping, ACL support, QoS, MLD snooping, DAI, Safeguard Engine, Cable Diagnostics Function, bandwidth control, D-Link Green Technology, Port Security, IP-MAC binding, SNMP trap, DHCP client, SPQ, Multicast filtering function, CoS, TFTP client, security lock slot (cable lock sold separately), 802.1x authentication, ToS, DSCP support, 3MB packet buffer | — | Flow control, auto-negotiation, ARP support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack prevention, port mirroring, store and forward, Broadcast Storm Control, half duplex mode, full duplex mode, Multicast Storm Control, Unicast Storm Control, sFlow, STP support, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, MLD snooping, DAI, reset button, LLDP support, DHCP relay, LACP, Port Security, SNMP trap, DHCP client, GVRP, dual firmware images, SPQ, Multicast filtering function, TFTP client, ERPS, cable test, system log, IP source guard, DRR, BPDU, ICMP, NTP, AAA, WAC, LLDP-MED, WRR, HOL Blocking Prevention, loopback detection | Flow control, full duplex capability, auto-negotiation, BOOTP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, WRR queuing, store and forward, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, STP support, RSTP support, DHCP snooping, ACL support, QoS, MLD snooping, DAI, Safeguard Engine, Cable Diagnostics Function, bandwidth control, D-Link Green Technology, Port Security, IP-MAC binding, SNMP trap, DHCP client, SPQ, Multicast filtering function, CoS, TFTP client, security lock slot (cable lock sold separately), 802.1x authentication, ToS, DSCP support, 1.5MB packet buffer |
| Performance | Switching capacity: 52 Gbps Forwarding performance: 38.69 Mpps | Switching capacity: 104 Gbps Forwarding performance (64-byte packet size): 77.4 Mpps | — | Switching capacity: 176 Gbps Forwarding performance: 130.95 Mpps | Switching capacity: 56 Gbps, Forwarding performance (64-byte packet size): 41.7 Mpps |
| Ports | 24 x 10/100/1000 (PoE+) + 2 x combo Gigabit SFP | 8 x 10/100/1000 (PoE+) + 40 x 10/100/1000 (PoE) + 4 x SFP | — | 48 x 10/100/1000 (PoE) + 4 x 10 Gigabit SFP+ | — |
| Power Over Ethernet (PoE) | PoE+ | — | — | — | — |
| RAM | — | — | — | 2 GB DDR3 SDRAM | — |
| Remote Management Protocol | SNMP 2, ICMP | SNMP 1, RMON 1, Telnet, SNMP 3, SNMP 2c, HTTP, CLI | — | — | — |
| Routing Protocol | IGMPv2, IGMP, IGMPv3 | — | — | — | — |
| Status Indicators | Power, status, PoE, link/activity/speed | Port transmission speed, power, PoE, link/activity, fan | — | Power, error, fan, link/activity/speed, stack | — |
| Subtype | Gigabit Ethernet | Gigabit Ethernet | — | — | Gigabit Ethernet |
| Power | |||||
| AC input frequency | 50 - 60 Hz | 50/60 Hz | 50/60 Hz | 50 - 60 Hz | 50 - 60 Hz |
| AC input voltage | — | 100 - 240 V | 100 - 240 V | — | 100 - 240 V |
| Power consumption (max) | 454.1 W | 478.9 W | 236.9 W | 467.3 W | — |
| Power consumption (typical) | — | — | — | — | 27.49 W |
| Power source | — | AC | AC | — | — |
| Power supply included | Yes | Yes | Yes | — | — |
| Voltage Required | AC 120/230 V (50/60 Hz) | AC 120/230 V (50/60 Hz) | — | AC 120/230 V (50/60 Hz) | AC 120/230 V (50/60 Hz) |
| Network | |||||
| Auto MDI/MDI-X | Yes | Yes | Yes | Yes | — |
| Auto-negotiation | Yes | Yes | Yes | — | — |
| Broadcast storm control | Yes | Yes | Yes | Yes | — |
| Copper ethernet cabling technology | 10GBASE-T, 1000BASE-T | 10BASE-T, 100BASE-TX, 1000BASE-T | 10BASE-T, 100BASE-TX, 1000BASE-T | — | 10BASE-T, 100BASE-TX, 100BASE-T, 1000BASE-T |
| Flow control support | Yes | Yes | Yes | — | Yes |
| Full duplex | Yes | Yes | Yes | — | Yes |
| Half duplex | Yes | — | — | — | — |
| Head-of-line (HOL) blocking | Yes | Yes | Yes | — | — |
| IP routing | — | — | — | — | Yes |
| Link aggregation | Yes | Yes | Yes | Yes | — |
| Networking standards | IEEE 802.1D, IEEE 802.1w, IEEE 802.3af, IEEE 802.3at | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Number of VLANs | — | 256 | 256 | 4094 | 4094 |
| Port mirroring | Yes | Yes | Yes | — | Yes |
| Rate limiting | Yes | — | — | — | — |
| Spanning tree protocol | Yes | Yes | Yes | Yes | — |
| Virtual LAN features | Port-based VLAN, Voice VLAN | — | — | — | Voice VLAN, Tagged VLAN, MAC address-based VLAN, Port-based VLAN |
| VLAN support | Yes | Yes | Yes | — | Yes |
| Security | |||||
| Access Control List (ACL) | — | Yes | Yes | Yes | Yes |
| Access Control List (ACL) rules | — | — | — | — | 256 |
| Authentication | — | — | — | — | Guest VLAN, MAC-based authentication, Port-based authentication |
| BPDU filtering/protection | — | — | — | — | Yes |
| DHCP features | DHCP client | DHCP server, DHCP client | DHCP server, DHCP client | — | DHCP client |
| IGMP snooping | Yes | Yes | Yes | — | — |
| IP-MAC-Port binding | — | — | — | Yes | Yes |
| Loop protection | — | Yes | Yes | Yes | Yes |
| MAC address filtering | Yes | Yes | Yes | — | — |
| Queue scheduling algorithms | — | — | — | Weighted Round Robin (WRR) | — |
| Security algorithms | SSL/TLS | — | — | EAP, LEAP, PEAP, SSH, TTLS | 802.1x RADIUS, SNMP, SSH |
| SSH/SSL support | — | — | — | — | Yes |
| Static port security | Yes | — | — | — | — |
| Management features | |||||
| ARP inspection | Yes | Yes | Yes | — | — |
| Cloud-managed | — | — | — | No | — |
| Configuring Location Settings (CLI) | — | Yes | Yes | Yes | — |
| MIB support | • RFC768 UDP • RFC791 IP • RFC792 ICMP • RFC793 TCP • RFC826 ARP • RFC1213 MIB II • RFC1493 Bridage MIB • RFC1907 SNMPv2 MIB • RFC1215 MIB Traps Convention | Y | Y | RFC2893, RFC4213, RFC4291, RFC2464, RFC2462, RFC4862, RFC2461, RFC4861, RFC2573, RFC1321, RFC2284, RFC2865, RFC2716, RFC3580, RFC826, RFC2463, RFC4443, RFC792, RFC793, RFC768, RFC791, RFC2389, RFC4113, RFC4022, RFC2618, RFC2674, RFC1398, RFC1643, RFC1650, RFC2358, RFC2665, RFC2021, RFC271, RFC1757, RFC2819, RFC1442, RFC1901, RFC1902, RFC1903, RFC1904, RFC1905, RFC1906, RFC1907, RFC1908, RFC2578, RFC3418, RFC2573, RFC2575, RFC2576, RFC1212, RFC1213, RFC1215, RFC1493, RFC1157, RFC2620, | RFC1213MIB II, RFC1493, RFC1907, RFC1757, 2819, RFC2021, RFC1398, 1643, 1650, 2358, 2665, RFC2674, 4363, RFC 2233, 2863, RFC 2618, RFC 2620, RFC 2925 |
| Quality of Service (QoS) support | Yes | Yes | Yes | Yes | — |
| Switch layer | L2 | L2 | L2 | L3 | — |
| Switch type | Managed | Managed | Managed | Managed | Managed |
| System event log | — | Yes | Yes | Yes | Yes |
| Web-based management | Yes | Yes | Yes | Yes | — |
| Ports & interfaces | |||||
| Basic switching RJ-45 Ethernet ports quantity | 24 | 48 | 24 | 48 | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) | Gigabit Ethernet (10/100/1000) | Gigabit Ethernet (10/100/1000) | — | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 2 | 4 | 4 | — | — |
| Console port | — | — | — | RJ-45 | RJ-45 |
| Fiber optic connector | — | — | — | — | SFP |
| Installed SFP modules quantity | — | 0 | 0 | 0 | 0 |
| Installed SFP+ modules quantity | — | 0 | 0 | 0 | — |
| Power connector | — | AC-in jack | AC-in jack | — | — |
| SFP module slots quantity | — | — | — | — | 4 |
| SFP+ module slots quantity | — | — | — | 4 | — |
| Performance | |||||
| Built-in processor | — | — | — | — | Yes |
| Fanless | Yes | — | — | — | — |
| Flash memory | 16 MB | 32 MB | 32 MB | — | 32 MB |
| Internal memory | — | 256 MB | 256 MB | 2048 MB | 128 MB |
| Mean time between failures (MTBF) | — | 236667 h | 469262 h | 309053.1 h | 294101 h |
| Memory type | — | DDR3-SDRAM | DDR3-SDRAM | DDR3-SDRAM | DDR3-SDRAM |
| Noise level | 50.5 dB | 52.4 dB | 51.7 dB | 51.2 dB | 52.4 dB |
| Certificates | |||||
| Certification | — | — | — | — | IEC61000-4-5, RoHS |
| Weight & dimensions | |||||
| Depth | 208 mm | 430 mm | 140 mm | 430 mm | 210 mm |
| Height | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Weight | 2.8 kg | 6.26 kg | 2.15 kg | 3.85 kg | — |
| Width | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm |
| Design | |||||
| Electromagnetic compatibility | — | — | — | CE A, VCCI A, FCC A, IC, BSMI | FCC A, CE A, VCCI, C-Tick, BSMI, CCC |
| Form factor | — | 1U | 1U | — | 1U |
| Housing material | Metal | — | — | — | — |
| LED indicators | — | Yes | Yes | Activity, Link, Power, Speed | Activity, Fan fail, Link, Power, Speed |
| Number of fans | — | — | 2 fan(s) | — | 2 fan(s) |
| Product colour | Black | Black | Black | Black | — |
| Rack mounting | Yes | Yes | Yes | — | Yes |
| Stackable | — | Yes | Yes | — | — |
| Optical fiber | |||||
| Fiber ethernet cabling technology | — | — | — | — | 1000BASE-X |
| Data transmission | |||||
| Forwarding rate | 38.69 Mpps | 77.4 Mpps | 41.7 Mpps | 130.95 Mpps | 41.7 Mpps |
| Jumbo frames | — | 10000 | 10000 | 12000 | — |
| Jumbo frames support | Yes | Yes | Yes | — | — |
| MAC address table | 8000 entries | 16000 entries | 8000 entries | 32000 entries | 16000 entries |
| Number of queues | — | — | — | — | 8 |
| Number of static routes | — | — | — | 124 | — |
| Packet buffer memory | — | 12 MB | 4.1 MB | 16 MB | 1.5 MB |
| Store-and-forward | — | Yes | Yes | — | — |
| Switching capacity | 52 Gbit/s | 104 Gbit/s | 56 Gbit/s | 176 Gbit/s | 56 Gbit/s |
| Logistics data | |||||
| Harmonized System (HS) code | 85176990 | — | — | 85176990 | — |
| Operational conditions | |||||
| Heat dissipation | 287 BTU/h | 1634.01 BTU/h | 900.36 BTU/h | 1512.676 BTU/h | 850.58 BTU/h |
| Operating relative humidity (H-H) | 0 - 95% | 0 - 95% | 0 - 95% | 0 - 95% | 10 - 90% |
| Operating temperature (T-T) | -10 - 50 °C | -5 - 50 °C | -5 - 50 °C | -5 - 50 °C | -5 - 50 °C |
| Storage relative humidity (H-H) | 0 - 95% | 0 - 95% | 0 - 95% | 0 - 95% | 5 - 90% |
| Storage temperature (T-T) | -40 - 70 °C | -40 - 70 °C | -40 - 70 °C | -20 - 70 °C | -40 - 70 °C |
| Protocols | |||||
| IPv4 & IPv6 features | IPv4 FIB | — | — | — | — |
| Multicast features | |||||
| IPv4 multicast entries | 1 | — | — | — | — |
| IPv6 multicast entries | 1 | — | — | — | — |
| Multicast Listener Discovery (MLD) snooping | — | — | — | — | MLD v1, MLD v2 |
| Multicast support | Yes | Yes | Yes | Yes | Yes |
| Number of multicast groups filtered | 1 | — | — | — | — |
| Technical details | |||||
| Master (outer) cases per pallet (air) | — | — | — | 16 pc(s) | 24 pc(s) |
| Master (outer) cases per pallet (sea) | — | — | — | 16 pc(s) | 40 pc(s) |
| Pallet gross length | — | — | — | 110 cm | 110 cm |
| Pallet gross weight (air) | — | — | — | 456.1 kg | 419.7 kg |
| Pallet gross weight (sea) | — | — | — | — | 682.9 kg |
| Pallet gross width | — | — | — | 120 cm | 120 cm |
| Pallet height (air) | — | — | — | 184.7 cm | 131.4 cm |
| Pallet height (sea) | — | — | — | 184.7 cm | 2.1 m |
| Products per pallet (air) | — | — | — | 80 pc(s) | 72 pc(s) |
| Products per pallet (sea) | — | — | — | 80 pc(s) | 120 pc(s) |
| Products per shipping (inner) case | — | — | — | 5 pc(s) | 3 pc(s) |
| Shipping (inner) case gross weight | — | — | — | 27.4 kg | 16.4 kg |
| Shipping (inner) case height | — | — | — | 42.8 cm | 39.3 cm |
| Shipping (inner) case length | — | — | — | 58.5 cm | 53.9 cm |
| Shipping (inner) case net weight | — | — | — | 22.9 kg | 15.6 kg |
| Shipping (inner) case width | — | — | — | 47.8 cm | 29.5 cm |
| Packaging data | |||||
| Package depth | — | — | — | 563 mm | 521 mm |
| Package height | — | — | — | 89 mm | 92 mm |
| Package weight | — | — | — | 5.17 kg | 5.18 kg |
| Package width | — | — | — | — | 365 mm |
| Power over Ethernet (PoE) | |||||
| Power over Ethernet (PoE) | Yes | No | Yes | Yes | Yes |
| Power over Ethernet (PoE) ports quantity | 24 | — | 24 | 48 | 24 |
| Power over Ethernet (PoE) power per port | — | — | — | 15.4 W | — |
| Power over Ethernet plus (PoE+) ports quantity | 24 | — | — | — | — |
| Total Power over Ethernet (PoE) budget | 370 W | — | 193 W | 370 W | — |
