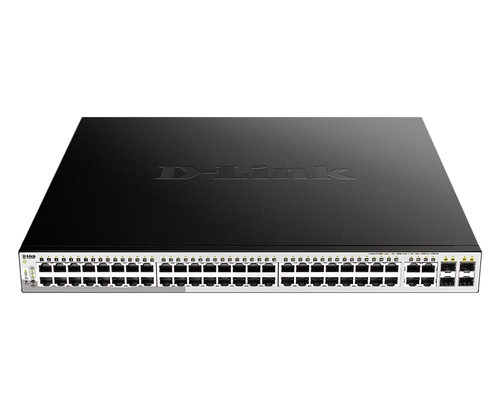

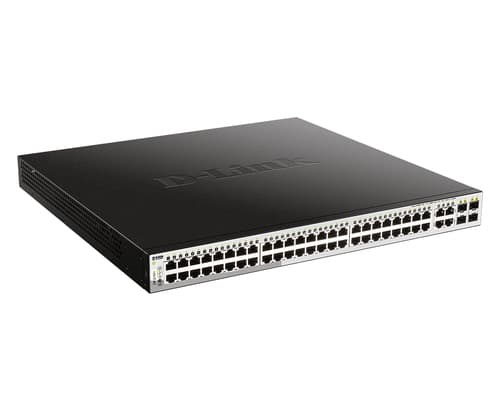

D-Link Web Smart DGS-1210-52MP
Manuf P/N: DGS-1210-52MP
APAXON#: 3370926
EAN: 790069409592
52-Port PoE Gigabit Smart Sw 370W PoE
Weight: 8.50 KG
Weight: 8.50 KG
- Managed L2 Web-based management
- Quality of Service (QoS) support Configuring Location Settings (CLI)
- Basic switching RJ-45 Ethernet ports quantity: 48
- 10BASE-T, 100BASE-TX, 1000BASE-T
- MAC address table: 16000 entries Switching capacity: 104 Gbit/s
- Access Control List (ACL)
UK Stock6
ConditionNew
Price £ 419.72
Price inc. VAT
£ 503.66
Quantity
|
Sales & Technical Enquiries
Phone: 0161 464 9941Email: sales@apaxon.co.uk
Similar Products
Product Summary
The DGS-1210-52MP features a smart fan design that powers on after the switch reaches a certain temperature, saving energy and cutting costs without sacrificing performance.
Extended Specification
Security
Access Control List (ACL)
Yes
IGMP snooping
Yes
MAC address filtering
Yes
Loop protection
Yes
DHCP features
DHCP server, DHCP client
Multicast features
Multicast support
Yes
Design
Rack mounting
Yes
Stackable
Yes
Form factor
1U
Product colour
Black
LED indicators
Yes
Management features
Switch type
Managed
Switch layer
L2
Quality of Service (QoS) support
Yes
Web-based management
Yes
ARP inspection
Yes
Configuring Location Settings (CLI)
Yes
System event log
Yes
MIB support
Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
48
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity
0
Installed SFP+ modules quantity
0
Combo SFP ports quantity
4
Power connector
AC-in jack
Network
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroring
Yes
Full duplex
Yes
Flow control support
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Auto MDI/MDI-X
Yes
Spanning tree protocol
Yes
Head-of-line (HOL) blocking
Yes
Auto-negotiation
Yes
VLAN support
Yes
Number of VLANs
256
Data transmission
MAC address table
16000 entries
Switching capacity
104 Gbit/s
Forwarding rate
77.4 Mpps
Store-and-forward
Yes
Jumbo frames support
Yes
Jumbo frames
10000
Packet buffer memory
12 MB
MAC address table
16000 entries entries
Switching capacity
104 Gbit/s Gbit/s
Forwarding rate
77.4 Mpps Mpps
Packet buffer memory
12 MB MB
Performance
Memory type
DDR3-SDRAM
Internal memory
256 MB
Flash memory
32 MB
Noise level
52.4 dB
Mean time between failures (MTBF)
236667 h
Internal memory
256 MB MB
Flash memory
32 MB MB
Noise level
52.4 dB dB
Mean time between failures (MTBF)
236667 h h
Power
Power source
AC
Power supply included
Yes
Voltage Required
AC 120/230 V (50/60 Hz)
AC input frequency
50/60 Hz
Power consumption (max)
478.9 W
AC input voltage
100 - 240 V V
AC input frequency
50/60 Hz Hz
Power consumption (max)
478.9 W W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Operating temperature (T-T)
-5 - 50 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Heat dissipation
1634.01 BTU/h
Operating temperature (T-T)
-5 - 50 °C °C
Storage temperature (T-T)
-40 - 70 °C °C
Operating relative humidity (H-H)
0 - 95% %
Storage relative humidity (H-H)
0 - 95% %
Heat dissipation
1634.01 BTU/h BTU/h
Weight & dimensions
Width
440 mm
Depth
430 mm
Height
44 mm
Weight
6.26 kg
Width
440 mm mm
Depth
430 mm mm
Height
44 mm mm
Weight
6.26 kg kg
General
Subtype
Gigabit Ethernet
Device Type
Switch - 52 ports - Managed
Status Indicators
Port transmission speed, power, PoE, link/activity, fan
Remote Management Protocol
SNMP 1, RMON 1, Telnet, SNMP 3, SNMP 2c, HTTP, CLI
Encryption Algorithm
MD5, SSL, TLS, SSL 3.0, SSL 2.0, PEAP, TTLS
Ports
8 x 10/100/1000 (PoE+) + 40 x 10/100/1000 (PoE) + 4 x SFP
Authentication Method
RADIUS, Secure Shell v.2 (SSH2), internal user database, Extensible Authentication Protocol (EAP)
Enclosure Type
Desktop, rack-mountable 1U
Performance
Switching capacity: 104 Gbps Forwarding performance (64-byte packet size): 77.4 Mpps
Capacity
IGMP groups: 256 QoS hardware queues per port: 8 ACL rules: 768 ARP entries: 64
Features
Flow control, full duplex capability, auto-negotiation, BOOTP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, WRR queuing, store and forward, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, STP support, RSTP support, DHCP snooping, ACL support, QoS, MLD snooping, DAI, Safeguard Engine, Cable Diagnostics Function, bandwidth control, D-Link Green Technology, Port Security, IP-MAC binding, SNMP trap, DHCP client, SPQ, Multicast filtering function, CoS, TFTP client, security lock slot (cable lock sold separately), 802.1x authentication, ToS, DSCP support, 3MB packet buffer
