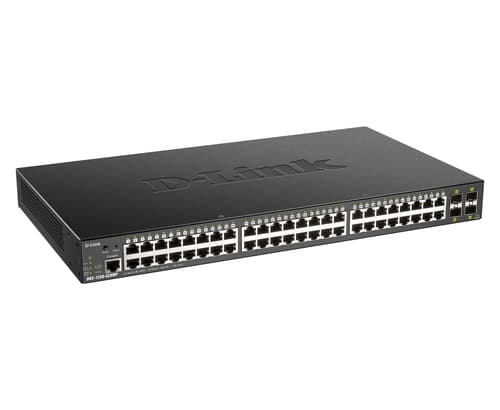

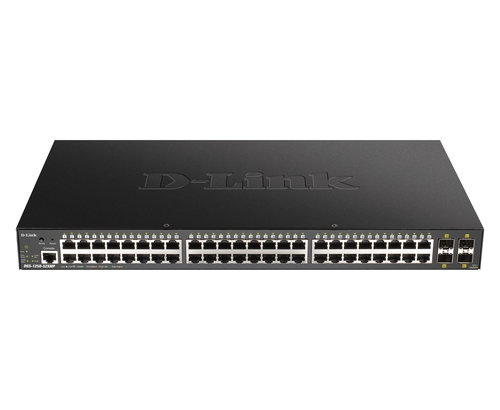

D-Link DGS 1250-52XMP
Manuf P/N: DGS-1250-52XMP
APAXON#: 5363366
EAN: 790069443022
D-Link DGS 1250-52XMP
Switch
L3 Lite
smart
48 x 10/100/1000 (PoE) + 4 x 10 Gigabit SFP+
rack-mountable
PoE (370 W)
Weight: 5.20 KG
Switch
L3 Lite
smart
48 x 10/100/1000 (PoE) + 4 x 10 Gigabit SFP+
rack-mountable
PoE (370 W)
Weight: 5.20 KG
- Managed L3 Web-based management
- Quality of Service (QoS) support Configuring Location Settings (CLI)
- Basic switching RJ-45 Ethernet ports quantity: 48 Console port: RJ-45
- MAC address table: 32000 entries Switching capacity: 176 Gbit/s
- Power supply included Power over Ethernet (PoE)
- Advanced security features, IMPB, 802.1X Authentication
- 370W PoE Power Budget (802.3af/at)
- Dual Image & Configuration
- Supports STP/RSTP/MSTP
UK Stock1
ConditionNew
Price £ 505.79
Price inc. VAT
£ 606.95
Quantity
|
Sales & Technical Enquiries
Phone: 0161 464 9941Email: sales@apaxon.co.uk
Similar Products
Product Summary
The D-Link DGS-1250 Series Smart Managed Switches deliver real value as an Enterprise Access and Small-to-Medium Business (SMB) Access/Aggregation solution. They provide a range of physical interfaces (including a Console Port with full CLI), multiple management interfaces, 11 Web languages, QoS enablement, and Advanced Layer-2 with Lite Layer-3 features. The DGS-1250 Series switches support 24 or 48 x 10/100/1000BASE-T ports, with each switch also supporting an additional 4 x 10G SFP+ ports for optical connections using multimode or single-mode SFP transceivers - enabling real network horsepower at a value price.
Extended Specification
Performance
Internal memory
2048 MB MB
Memory type
DDR3-SDRAM
Internal memory
2048 MB
Flash memory
64 MB
Noise level
51.2 dB
Mean time between failures (MTBF)
309053.1 h
Flash memory
64 MB MB
Noise level
51.2 dB dB
Mean time between failures (MTBF)
309053.1 h h
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port
15.4 W W
Total Power over Ethernet (PoE) budget
370 W W
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
48
Power over Ethernet (PoE) power per port
15.4 W
Total Power over Ethernet (PoE) budget
370 W
Operational conditions
Operating temperature (T-T)
-5 - 50 °C °C
Storage temperature (T-T)
-20 - 70 °C °C
Operating relative humidity (H-H)
0 - 95% %
Storage relative humidity (H-H)
0 - 95% %
Heat dissipation
1512.676 BTU/h BTU/h
Operating temperature (T-T)
-5 - 50 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Heat dissipation
1512.676 BTU/h
Management features
Switch type
Managed
Switch layer
L3
Quality of Service (QoS) support
Yes
Web-based management
Yes
Cloud-managed
No
Configuring Location Settings (CLI)
Yes
System event log
Yes
MIB support
RFC2893, RFC4213, RFC4291, RFC2464, RFC2462, RFC4862, RFC2461, RFC4861, RFC2573, RFC1321, RFC2284, RFC2865, RFC2716, RFC3580, RFC826, RFC2463, RFC4443, RFC792, RFC793, RFC768, RFC791, RFC2389, RFC4113, RFC4022, RFC2618, RFC2674, RFC1398, RFC1643, RFC1650, RFC2358, RFC2665, RFC2021, RFC271, RFC1757, RFC2819, RFC1442, RFC1901, RFC1902, RFC1903, RFC1904, RFC1905, RFC1906, RFC1907, RFC1908, RFC2578, RFC3418, RFC2573, RFC2575, RFC2576, RFC1212, RFC1213, RFC1215, RFC1493, RFC1157, RFC2620,
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
48
Basic switching RJ-45 Ethernet ports type
No
Installed SFP modules quantity
0
Installed SFP+ modules quantity
0
SFP+ module slots quantity
4
Console port
RJ-45
Network
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support
Yes
Flow control support
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Auto MDI/MDI-X
Yes
Spanning tree protocol
Yes
Head-of-line (HOL) blocking
Yes
VLAN support
Yes
Virtual LAN features
Voice VLAN
Number of VLANs
4094
Data transmission
MAC address table
32000 entries
Switching capacity
176 Gbit/s
Forwarding rate
130.95 Mpps
Static route
Yes
Number of static routes
124
Jumbo frames support
Yes
Jumbo frames
12000
Packet buffer memory
16 MB
MAC address table
32000 entries entries
Switching capacity
176 Gbit/s Gbit/s
Forwarding rate
130.95 Mpps Mpps
Packet buffer memory
16 MB MB
Security
DHCP features
DHCP client, DHCP server, DHCP snooping
Access Control List (ACL)
Yes
Access Control List (ACL) rules
768
IGMP snooping
Yes
Security algorithms
EAP, LEAP, PEAP, SSH, TTLS
Loop protection
Yes
IP-MAC-Port binding
Yes
Queue scheduling algorithms
Weighted Round Robin (WRR)
Multicast features
Multicast support
Yes
Design
Rack mounting
Yes
Product colour
Black
LED indicators
Activity, Link, Power, Speed
Electromagnetic compatibility
CE A, VCCI A, FCC A, IC, BSMI
Power
Power supply included
Yes
Voltage Required
AC 120/230 V (50/60 Hz)
AC input frequency
50 - 60 Hz
Power consumption (max)
467.3 W
AC input frequency
50 - 60 Hz Hz
Power consumption (max)
467.3 W W
Weight & dimensions
Width
440 mm
Depth
430 mm
Height
44 mm
Weight
3.85 kg
Width
440 mm mm
Depth
430 mm mm
Height
44 mm mm
Weight
3.85 kg kg
Packaging data
Package width
393 mm
Package depth
563 mm
Package height
89 mm
Package weight
5.17 kg
Package width
393 mm mm
Package depth
563 mm mm
Package height
89 mm mm
Package weight
5.17 kg kg
General
Power Over Ethernet (PoE)
PoE
Authentication Method
RADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)
RAM
2 GB DDR3 SDRAM
Routing Protocol
IGMPv2, IGMP, static IP routing, IGMPv3, MLDv2, MLD
Ports
48 x 10/100/1000 (PoE) + 4 x 10 Gigabit SFP+
Encryption Algorithm
SSL, TLS, SSL 3.0, SSL 2.0, PEAP, TTLS
Performance
Switching capacity: 176 Gbps Forwarding performance: 130.95 Mpps
Remote Management Protocol
SNMP 1, RMON 1, Telnet, SNMP 3, SNMP 2c, SSH-2, CLI
Status Indicators
Power, error, fan, link/activity/speed, stack
Device Type
Switch - 52 ports - L3 Lite - smart - stackable
Features
Flow control, auto-negotiation, ARP support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack prevention, port mirroring, store and forward, Broadcast Storm Control, half duplex mode, full duplex mode, Multicast Storm Control, Unicast Storm Control, sFlow, STP support, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, MLD snooping, DAI, reset button, LLDP support, DHCP relay, LACP, Port Security, SNMP trap, DHCP client, GVRP, dual firmware images, SPQ, Multicast filtering function, TFTP client, ERPS, cable test, system log, IP source guard, DRR, BPDU, ICMP, NTP, AAA, WAC, LLDP-MED, WRR, HOL Blocking Prevention, loopback detection
Subtype
Gigabit Ethernet
Enclosure Type
Rack-mountable 1U
Technical details
Shipping (inner) case height
42.8 cm
Shipping (inner) case width
47.8 cm
Shipping (inner) case length
58.5 cm
Shipping (inner) case net weight
22.9 kg
Products per shipping (inner) case
5 pc(s)
Pallet gross weight (air)
456.1 kg
Master (outer) cases per pallet (air)
16 pc(s)
Products per pallet (air)
80 pc(s)
Pallet gross length
110 cm
Pallet gross width
120 cm
Pallet height (air)
184.7 cm
Pallet gross weight (sea)
456.1 kg
Master (outer) cases per pallet (sea)
16 pc(s)
Products per pallet (sea)
80 pc(s)
Pallet height (sea)
184.7 cm
Shipping (inner) case gross weight
27.4 kg
Shipping (inner) case height
42.8 cm cm
Shipping (inner) case width
47.8 cm cm
Shipping (inner) case length
58.5 cm cm
Shipping (inner) case net weight
22.9 kg kg
Products per shipping (inner) case
5 pc(s) pc(s)
Pallet gross weight (air)
456.1 kg kg
Master (outer) cases per pallet (air)
16 pc(s) pc(s)
Products per pallet (air)
80 pc(s) pc(s)
Pallet gross length
110 cm cm
Pallet gross width
120 cm cm
Pallet height (air)
184.7 cm cm
Pallet gross weight (sea)
456.1 kg kg
Master (outer) cases per pallet (sea)
16 pc(s) pc(s)
Products per pallet (sea)
80 pc(s) pc(s)
Pallet height (sea)
184.7 cm cm
Shipping (inner) case gross weight
27.4 kg kg
Certificates
Certification
CB, UL, BSMI, CCC
Logistics data
Harmonized System (HS) code
85176990
