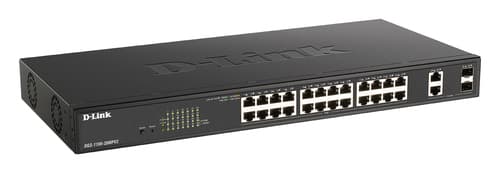

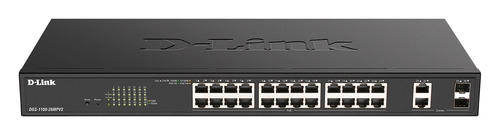

D-Link DGS 1100-26MPV2
Thumbnail 0
Thumbnail 1
Thumbnail 2
Thumbnail 3

D-Link DGS 1100-26MPV2

Manuf P/N: DGS-1100-26MPV2
APAXON#: 6176192
EAN: 790069453342
D-Link DGS 1100-26MPV2
Switch
smart
24 x 10/100/1000 (PoE+) + 2 x combo Gigabit SFP
rack-mountable
PoE+ (370 W)
Weight: 4.02 KG
  • Managed L2 Web-based management
  • Quality of Service (QoS) support
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • 10GBASE-T, 1000BASE-T
  • MAC address table: 8000 entries Switching capacity: 52 Gbit/s
  • Rack mounting
  • Power supply included Power over Ethernet (PoE)
  • Simple Layer 2 Management
  • Web-based User Interface
  • PoE options up to 370W power budget
  • Limited-Lifetime Warranty after registration
UK Stock1
ConditionNew
Price £ 223.19
Price inc. VAT
£ 267.83
Quantity
|

Sales & Technical Enquiries

Product Summary

The DGS-1100 Series is a range of switches designed to meet the requirements of small, medium, and enterprise businesses. Support for multiple PoE standards make the DGS-1100 Series ideal for IP surveillance deployments. Advanced management features, a range of diagnostic and troubleshooting tools, and energy-efficient technologies provide a flexible solution to meet your networking requirements.

Extended Specification

Performance
Flash memory
16 MB MB
Noise level
50.5 dB dB
Flash memory
16 MB
Noise level
50.5 dB
Fanless
Yes
Power
Voltage Required
AC 120/230 V (50/60 Hz) V
AC input frequency
50 - 60 Hz Hz
Power consumption (max)
454.1 W W
Power supply included
Yes
AC input frequency
50 - 60 Hz
Power consumption (max)
454.1 W
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget
370 W W
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
24
Power over Ethernet plus (PoE+) ports quantity
24
Total Power over Ethernet (PoE) budget
370 W
Operational conditions
Operating temperature (T-T)
-10 - 50 °C °C
Storage temperature (T-T)
-40 - 70 °C °C
Operating relative humidity (H-H)
0 - 95% %
Storage relative humidity (H-H)
0 - 95% %
Heat dissipation
287 BTU/h BTU/h
Operating temperature (T-T)
-10 - 50 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Heat dissipation
287 BTU/h
Weight & dimensions
Width
440 mm mm
Depth
208 mm mm
Height
44 mm mm
Weight
2.8 kg kg
Width
440 mm
Depth
208 mm
Height
44 mm
Weight
2.8 kg
Data transmission
MAC address table
8000 entries entries
Switching capacity
52 Gbit/s Gbit/s
Forwarding rate
38.69 Mpps Mpps
MAC address table
8000 entries
Switching capacity
52 Gbit/s
Forwarding rate
38.69 Mpps
Jumbo frames support
Yes
Management features
Switch type
Managed
Switch layer
L2
Quality of Service (QoS) support
Yes
Web-based management
Yes
ARP inspection
Yes
MIB support
• RFC768 UDP • RFC791 IP • RFC792 ICMP • RFC793 TCP • RFC826 ARP • RFC1213 MIB II • RFC1493 Bridage MIB • RFC1907 SNMPv2 MIB • RFC1215 MIB Traps Convention
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity
2
Network
Networking standards
IEEE 802.1D, IEEE 802.1w, IEEE 802.3af, IEEE 802.3at
Copper ethernet cabling technology
10GBASE-T, 1000BASE-T
Port mirroring
Yes
Full duplex
Yes
Half duplex
Yes
Flow control support
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Rate limiting
Yes
Auto MDI/MDI-X
Yes
Spanning tree protocol
Yes
Head-of-line (HOL) blocking
Yes
Auto-negotiation
Yes
VLAN support
Yes
Virtual LAN features
Port-based VLAN, Voice VLAN
Security
DHCP features
DHCP client
IGMP snooping
Yes
Security algorithms
SSL/TLS
MAC address filtering
Yes
Static port security
Yes
Multicast features
Multicast support
Yes
IPv4 multicast entries
1
IPv6 multicast entries
1
Number of multicast groups filtered
1
Protocols
IPv4 & IPv6 features
IPv4 FIB
Design
Rack mounting
Yes
Product colour
Black
Housing material
Metal
Logistics data
Harmonized System (HS) code
85176990
General
Subtype
Gigabit Ethernet
Routing Protocol
IGMPv2, IGMP, IGMPv3
Enclosure Type
Rack-mountable 1U
Power Over Ethernet (PoE)
PoE+
Ports
24 x 10/100/1000 (PoE+) + 2 x combo Gigabit SFP
Device Type
Switch - 26 ports - smart
Performance
Switching capacity: 52 Gbps Forwarding performance: 38.69 Mpps
Status Indicators
Power, status, PoE, link/activity/speed
Remote Management Protocol
SNMP 2, ICMP
Features
Flow control, auto-negotiation, BOOTP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack prevention, port mirroring, Broadcast Storm Control, full duplex mode, Multicast Storm Control, Unicast Storm Control, STP support, RSTP support, QoS, Cable Diagnostics Function, bandwidth control, LLDP support, Port Security, DHCP client, 4.1MB packet buffer, tagged VLAN, DSCP support, IGMP querier, Voice VLAN, VLAN management, VLAN group, EEE, WRR, HOL Blocking Prevention, loopback detection, port-based VLAN, port-based QoS, Unknown Storm Control, DNA support, Asymmetric VLAN, Smart Fan
D-Link DGS 1100-26MPV2
