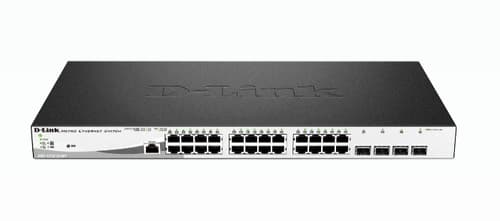

D-Link DGS 1210-28MP
Manuf P/N: DGS-1210-28MP
APAXON#: 3968255
EAN: 790069427664
D-Link DGS 1210-28MP
Switch
Managed
24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP
desktop, rack-mountable
PoE+
Weight: 5.54 KG
Switch
Managed
24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP
desktop, rack-mountable
PoE+
Weight: 5.54 KG
- Managed L2 Web-based management
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 24 Console port: RJ-45
- 10BASE-T, 100BASE-TX, 100BASE-T, 1000BASE-T
- MAC address table: 16000 entries Switching capacity: 56 Gbit/s
UK Stock7
ConditionNew
Price £ 313.22
Price inc. VAT
£ 375.86
Quantity
|
Sales & Technical Enquiries
Phone: 0161 464 9941Email: sales@apaxon.co.uk
Similar Products
Product Summary
The DGS-1210 Series Gigabit Smart Managed Switches is the latest generation of D-Link Smart Managed Switches featuring D-Link Green 3.0 technology. The series offers a high level of energy saving and efficiency, as it also complies with the IEEE 802.3az Energy Efficient Ethernet standard. Support for IPv6 management and configurations ensures your network remains protected after the upgrade from IPv4 to IPv6. By offering multiple management options, the Smart Managed Switches allows quick deployment, infrastructure expansion, and seamless function upgrades. Built for small and medium-sized businesses, the DGS-1210 Series Smart Managed Switches provide functionality, security, and manageability for a fraction of the standard cost of ownership.
Extended Specification
Management features
Switch type
Managed
Switch layer
L2
Quality of Service (QoS) support
Yes
Web-based management
Yes
Traffic classification
Yes
System event log
Yes
MIB support
RFC1213MIB II, RFC1493, RFC1907, RFC1757, 2819, RFC2021, RFC1398, 1643, 1650, 2358, 2665, RFC2674, 4363, RFC 2233, 2863, RFC 2618, RFC 2620, RFC 2925
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity
0
Installed SFP+ modules quantity
0
SFP module slots quantity
4
Fiber optic connector
SFP
Console port
RJ-45
Network
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support
No
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 100BASE-T, 1000BASE-T
Port mirroring
Yes
Full duplex
Yes
IP routing
Yes
Flow control support
Yes
Link aggregation
Yes
Rate limiting
Yes
Auto MDI/MDI-X
Yes
Spanning tree protocol
Yes
Auto-negotiation
Yes
VLAN support
Yes
Virtual LAN features
Voice VLAN, Tagged VLAN, MAC address-based VLAN, Port-based VLAN
Number of VLANs
4094
Optical fiber
Fiber ethernet cabling technology
1000BASE-X
Data transmission
MAC address table
16000 entries
Switching capacity
56 Gbit/s
Forwarding rate
41.7 Mpps
Store-and-forward
Yes
Number of queues
8
Number of static routes
32
Jumbo frames support
Yes
Jumbo frames
9216
Packet buffer memory
1.5 MB
Switching capacity
56 Gbit/s Gbit/s
MAC address table
16000 entries entries
Forwarding rate
41.7 Mpps Mpps
Packet buffer memory
1.5 MB MB
Security
DHCP features
DHCP client
Access Control List (ACL)
Yes
Access Control List (ACL) rules
256
IGMP snooping
Yes
Security algorithms
802.1x RADIUS, SNMP, SSH
SSH/SSL support
Yes
Loop protection
Yes
BPDU filtering/protection
Yes
IP-MAC-Port binding
Yes
Authentication
Guest VLAN, MAC-based authentication, Port-based authentication
Multicast features
Multicast support
Yes
Multicast Listener Discovery (MLD) snooping
MLD v1, MLD v2
Design
Rack mounting
Yes
Form factor
1U
Product colour
Black, Grey
LED indicators
Activity, Fan fail, Link, Power, Speed
Number of fans
2 fan(s)
Safety
CCC, CE LVD, UL/cUL
Electromagnetic compatibility
FCC A, CE A, VCCI, C-Tick, BSMI, CCC
Number of fans
2 fan(s) fan(s)
Performance
Built-in processor
Yes
Memory type
DDR3-SDRAM
Internal memory
128 MB
Flash memory
32 MB
Noise level
52.4 dB
Mean time between failures (MTBF)
294101 h
Internal memory
128 MB MB
Flash memory
32 MB MB
Noise level
52.4 dB dB
Mean time between failures (MTBF)
294101 h h
Power
Voltage Required
AC 120/230 V (50/60 Hz)
AC input frequency
50 - 60 Hz
Power consumption (typical)
27.49 W
AC input voltage
100 - 240 V V
AC input frequency
50 - 60 Hz Hz
Power consumption (typical)
27.49 W W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
24
Operational conditions
Operating temperature (T-T)
-5 - 50 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Heat dissipation
850.58 BTU/h
Operating temperature (T-T)
-5 - 50 °C °C
Storage temperature (T-T)
-40 - 70 °C °C
Operating relative humidity (H-H)
10 - 90% %
Storage relative humidity (H-H)
5 - 90% %
Heat dissipation
850.58 BTU/h BTU/h
Weight & dimensions
Width
440 mm
Depth
210 mm
Height
44 mm
Width
440 mm mm
Depth
210 mm mm
Height
44 mm mm
Packaging data
Package width
365 mm
Package depth
521 mm
Package height
92 mm
Package weight
5.18 kg
Package width
365 mm mm
Package depth
521 mm mm
Package height
92 mm mm
Package weight
5.18 kg kg
Technical details
Shipping (inner) case height
39.3 cm
Shipping (inner) case width
29.5 cm
Shipping (inner) case length
53.9 cm
Shipping (inner) case net weight
15.6 kg
Products per shipping (inner) case
3 pc(s)
Pallet gross weight (air)
419.7 kg
Master (outer) cases per pallet (air)
24 pc(s)
Products per pallet (air)
72 pc(s)
Pallet gross length
110 cm
Pallet gross width
120 cm
Pallet height (air)
131.4 cm
Pallet gross weight (sea)
682.9 kg
Master (outer) cases per pallet (sea)
40 pc(s)
Products per pallet (sea)
120 pc(s)
Pallet height (sea)
2.1 m
Shipping (inner) case gross weight
16.4 kg
Shipping (inner) case height
39.3 cm cm
Shipping (inner) case width
29.5 cm cm
Shipping (inner) case length
53.9 cm cm
Shipping (inner) case net weight
15.6 kg kg
Products per shipping (inner) case
3 pc(s) pc(s)
Pallet gross weight (air)
419.7 kg kg
Master (outer) cases per pallet (air)
24 pc(s) pc(s)
Products per pallet (air)
72 pc(s) pc(s)
Pallet gross length
110 cm cm
Pallet gross width
120 cm cm
Pallet height (air)
131.4 cm cm
Pallet gross weight (sea)
682.9 kg kg
Master (outer) cases per pallet (sea)
40 pc(s) pc(s)
Products per pallet (sea)
120 pc(s) pc(s)
Pallet height (sea)
2.1 m m
Shipping (inner) case gross weight
16.4 kg kg
Certificates
Certification
IEC61000-4-5, RoHS
Logistics data
Harmonized System (HS) code
85176990
General
Subtype
Gigabit Ethernet
Device Type
Switch - 28 ports - Managed
Status Indicators
Port transmission speed, power, PoE, link/activity, fan
Remote Management Protocol
SNMP 1, RMON 1, Telnet, SNMP 3, SNMP 2c, HTTP, CLI
Ports
24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP
Encryption Algorithm
MD5, SSL, TLS, SSL 3.0, SSL 2.0, PEAP, TTLS
Authentication Method
RADIUS, Secure Shell v.2 (SSH2), internal user database, Extensible Authentication Protocol (EAP)
Routing Protocol
IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, MLDv2, MLD
Enclosure Type
Desktop, rack-mountable 1U
Performance
Switching capacity: 56 Gbps, Forwarding performance (64-byte packet size): 41.7 Mpps
Capacity
IGMP groups: 256, QoS hardware queues per port: 8, ACL rules: 256, ARP entries: 256, VLAN groups: 4094, IPv4 routing table entries: 32, IPv6 routing table entries: 16
Features
Flow control, full duplex capability, auto-negotiation, BOOTP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, WRR queuing, store and forward, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, STP support, RSTP support, DHCP snooping, ACL support, QoS, MLD snooping, DAI, Safeguard Engine, Cable Diagnostics Function, bandwidth control, D-Link Green Technology, Port Security, IP-MAC binding, SNMP trap, DHCP client, SPQ, Multicast filtering function, CoS, TFTP client, security lock slot (cable lock sold separately), 802.1x authentication, ToS, DSCP support, 1.5MB packet buffer
