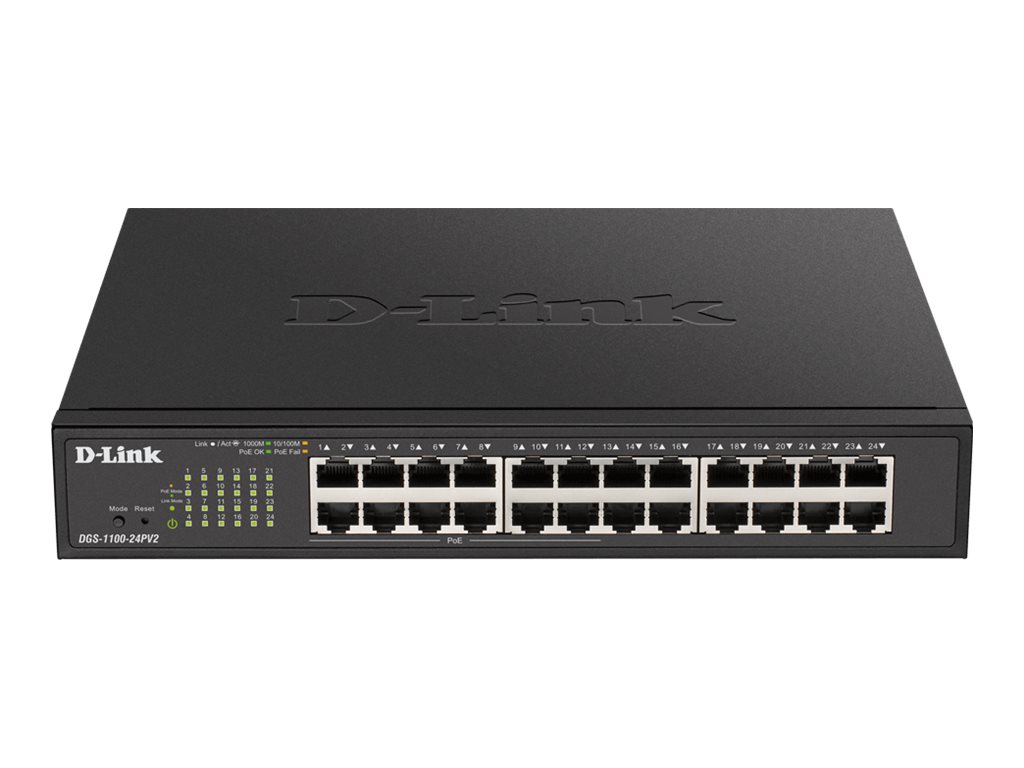

D-Link DGS 1100-24PV2
Manuf P/N: DGS-1100-24PV2
APAXON#: 5799025
EAN: 790069451782
D-Link DGS 1100-24PV2
Switch
smart
24 x 10/100/1000 (12 PoE)
desktop, rack-mountable
PoE (100 W)
Weight: 3.10 KG
Switch
smart
24 x 10/100/1000 (12 PoE)
desktop, rack-mountable
PoE (100 W)
Weight: 3.10 KG
- Managed L2 Web-based management
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 24
- 10BASE-T, 10BASE-TX, 1000BASE-T
- MAC address table: 8000 entries Switching capacity: 48 Gbit/s
- Segregate different types of traffic, such as surveillance or voice, with VLANs to heighten security
- IGMP Snooping sends multicast traffic only where it needs to go, significantly cutting down network traffic
- Bandwidth Control ensures latency-sensitive traffic always gets the bandwidth it needs
- Quality of Service further prioritizes latency-sensitive traffic, ensuring timely delivery
- Innovative energy saving features are good for your budget, as well as the environment
- Get up and going quickly with streamlined first-time setup and ongoing management
UK Stock6
ConditionNew
Price £ 168.46
Price inc. VAT
£ 202.15
Quantity
|
Sales & Technical Enquiries
Phone: 0161 464 9941Email: sales@apaxon.co.uk
Similar Products
Product Summary
The DGS-1100 Series is a range of powerful switches that offer a lot of bang for your buck. They are great for busy SMBs who expect a lot of their network, including support for surveillance and VoIP. They are packed with traffic management and optimization features that keep your network congestion free. Meanwhile, management tools are flexible and intuitive, making your life easier.
Extended Specification
Management features
Switch type
Managed
Switch layer
L2
Quality of Service (QoS) support
Yes
Web-based management
Yes
System event log
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity
0
Installed SFP+ modules quantity
0
Network
Networking standards
IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support
No
Copper ethernet cabling technology
10BASE-T, 10BASE-TX, 1000BASE-T
Port mirroring
Yes
Full duplex
Yes
Flow control support
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Rate limiting
Yes
Auto MDI/MDI-X
Yes
Spanning tree protocol
Yes
Head-of-line (HOL) blocking
Yes
Auto-negotiation
Yes
VLAN support
Yes
Virtual LAN features
Port-based VLAN, Voice VLAN
Number of VLANs
128
Data transmission
MAC address table
8000 entries
Switching capacity
48 Gbit/s
Forwarding rate
35.71 Mpps
Store-and-forward
Yes
Number of queues
4
Jumbo frames support
Yes
Jumbo frames
9216
Packet buffer memory
4.1 MB
MAC address table
8000 entries entries
Switching capacity
48 Gbit/s Gbit/s
Forwarding rate
35.71 Mpps Mpps
Packet buffer memory
4.1 MB MB
Security
DHCP features
DHCP client
IGMP snooping
Yes
Security algorithms
SNMP, SSL/TLS
Queue scheduling algorithms
SPQ, Weighted Round Robin (WRR)
Multicast features
Multicast support
Yes
Design
Rack mounting
Yes
Product colour
Black
LED indicators
Yes
Performance
Built-in processor
Yes
Processor frequency
125 MHz
Memory type
DRAM
Flash memory
16 MB
Noise level
0 dB
Fanless
Yes
Mean time between failures (MTBF)
255003 h
Processor frequency
125 MHz MHz
Flash memory
16 MB MB
Noise level
0 dB dB
Mean time between failures (MTBF)
255003 h h
Power
Voltage Required
AC 120/230 V (50/60 Hz)
Power consumption (max)
19.5 W
Power consumption (max)
19.5 W W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
12
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
100 W
Power over Ethernet (PoE) power per port
30 W W
Total Power over Ethernet (PoE) budget
100 W W
Operational conditions
Operating temperature (T-T)
-5 - 50 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 2000 m
Heat dissipation
107.5 BTU/h
Storage temperature (T-T)
-40 - 70 °C °C
Operating temperature (T-T)
-5 - 50 °C °C
Operating relative humidity (H-H)
0 - 95% %
Storage relative humidity (H-H)
0 - 95% %
Operating altitude
0 - 2000 m m
Heat dissipation
107.5 BTU/h BTU/h
Weight & dimensions
Width
280 mm
Depth
230 mm
Height
44 mm
Weight
2.2 kg
Depth
230 mm mm
Height
44 mm mm
Weight
2.2 kg kg
Width
280 mm mm
Certificates
Certification
EMI FCC A, CE A, VCCI A, C-Tick, BSMI, CCC
cUL, CE LVD, CB, BSMI, CCC
Logistics data
Harmonized System (HS) code
85176990
General
Subtype
Gigabit Ethernet
Encryption Algorithm
SSL
Routing Protocol
IGMPv2, IGMP, IGMPv3
Power Over Ethernet (PoE)
PoE
Device Type
Switch - 24 ports - smart
Enclosure Type
Desktop, rack-mountable 1U
Performance
Switching capacity: 48 Gbps Forwarding performance: 35.71 Mpps
Status Indicators
Power, status, PoE, link/activity/speed
Capacity
VLAN groups: 128 VLAN IDs: 4094 IGMP groups: 128
Remote Management Protocol
SNMP 2, ICMP
Ports
24 x 10/100/1000 (12 PoE)
Features
Flow control, auto-negotiation, BOOTP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack prevention, port mirroring, Broadcast Storm Control, full duplex mode, Multicast Storm Control, Unicast Storm Control, STP support, RSTP support, QoS, Cable Diagnostics Function, bandwidth control, fanless, LLDP support, Port Security, DHCP client, 512KB packet buffer, tagged VLAN, DSCP support, IGMP querier, Voice VLAN, VLAN management, VLAN group, EEE, WRR, HOL Blocking Prevention, loopback detection, port-based VLAN, port-based QoS, Unknown Storm Control, DNA support, Asymmetric VLAN
