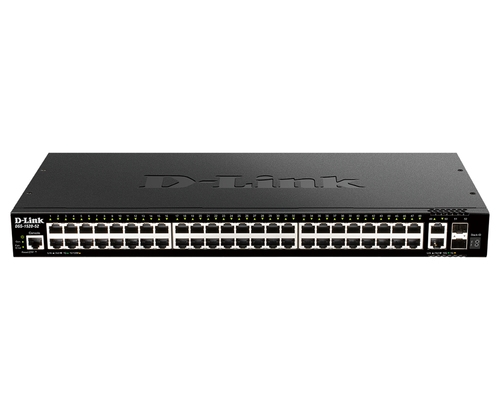

D-Link DGS 1520-52
Manuf P/N: DGS-1520-52
APAXON#: 6183377
EAN: 790069454783
D-Link DGS 1520-52
Switch
L3
smart
48 x 10/100/1000 + 2 x 10 Gigabit Ethernet + 2 x 10 Gigabit SFP+
rack-mountable
Weight: 3.99 KG
Switch
L3
smart
48 x 10/100/1000 + 2 x 10 Gigabit Ethernet + 2 x 10 Gigabit SFP+
rack-mountable
Weight: 3.99 KG
- Managed L3 Web-based management
- Basic switching RJ-45 Ethernet ports quantity: 50
- 10G support 10BASE-T, 100BASE-FX, 100BASE-TX, 1000BASE-T
- MAC address table: 16384 entries Switching capacity: 176 Gbit/s
- Perfect for SMB access & aggregation layers
- Quickly add 10 GB Ethernet upgrade to infrastructure
- Power over Ethernet and fiber options with various port combinations
UK Stock20
ConditionNew
Price £ 628.34
Price inc. VAT
£ 754.01
Quantity
|
Sales & Technical Enquiries
Phone: 0161 464 9941Email: sales@apaxon.co.uk
Similar Products
Product Summary
The DGS-1520 Series, a new generation of Lite Layer 3 Stackable Smart Managed Switches, includes four 10 GB ports for uplink or stacking up to a total of eight switches with a total of 80 Gigabit stacking bandwidth. Designed for effortless multi-site network deployments with Zero Touch Provisioning, the DGS-1520 Series is also powerful enough for server and storage applications.
Extended Specification
Data transmission
MAC address table
16384 entries entries
Switching capacity
176 Gbit/s Gbit/s
Forwarding rate
130.95 Mpps Mpps
MAC address table
16384 entries
Switching capacity
176 Gbit/s
Forwarding rate
130.95 Mpps
Store-and-forward
Yes
Static route
Yes
Jumbo frames support
Yes
Jumbo frames
12288
Performance
Noise level
56.8 dB dB
Mean time between failures (MTBF)
364888 h h
Physical stacking (units)
8
Virtual stacking (units)
32
Noise level
56.8 dB
Mean time between failures (MTBF)
364888 h
Power
Voltage Required
AC 120/230 V (50/60 Hz) V
Power consumption (max)
51.2 W W
Power source
AC
AC input voltage
100 - 240 V
Power consumption (max)
51.2 W
Operational conditions
Operating temperature (T-T)
-5 - 50 °C °C
Storage temperature (T-T)
-40 - 70 °C °C
Operating relative humidity (H-H)
10 - 95% %
Storage relative humidity (H-H)
5 - 95% %
Heat dissipation
174.6 BTU/h BTU/h
Operating temperature (T-T)
-5 - 50 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 95%
Storage relative humidity (H-H)
5 - 95%
Heat dissipation
174.6 BTU/h
Weight & dimensions
Width
441 mm mm
Depth
207.4 mm mm
Height
44 mm mm
Weight
2.78 kg kg
Width
441 mm
Depth
207.4 mm
Height
44 mm
Weight
2.78 kg
Management features
Switch type
Managed
Switch layer
L3
Web-based management
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
50
Basic switching RJ-45 Ethernet ports type
10G Ethernet (100/1000/10000)
Gigabit Ethernet (copper) ports quantity
48
10G Ethernet (copper) ports quantity
2
SFP+ module slots quantity
2
Fiber ports quantity
2
Fiber optic connector
SFP+
Network
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support
Yes
Copper ethernet cabling technology
10BASE-T, 100BASE-FX, 100BASE-TX, 1000BASE-T
Flow control support
Yes
Link aggregation
Yes
Auto MDI/MDI-X
Yes
Spanning tree protocol
Yes
Head-of-line (HOL) blocking
Yes
VLAN support
Yes
Security
DHCP features
DHCP snooping
IGMP snooping
Yes
Loop protection
Yes
BPDU filtering/protection
Yes
MAC address entries
Static MAC address entries
Multicast features
Multicast Listener Discovery (MLD) snooping
v1/v2
Protocols
GARP VLAN Registration Protocol (GVRP)
Yes
Routing protocols
OSPF, RIP, RIPng, VRRP
Design
Rack mounting
Yes
Stackable
Yes
Form factor
1U
Product colour
Black
LED indicators
Activity, Link, Power, Speed
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Certificates
Certification
CE Class A, FCC Class A, IC Class A, RCM Class A, VCCI Class A, BSMI Class A
Logistics data
Harmonized System (HS) code
85176990
General
Max Units In A Stack
8
Subtype
Gigabit Ethernet
Enclosure Type
Rack-mountable 1U
Performance
Switching capacity: 176 Gbps, Forwarding performance: 130.95 Mpps, Stacking bandwidth: 80 Gbps
Ports
48 x 10/100/1000 + 2 x 10 Gigabit Ethernet + 2 x 10 Gigabit SFP+
Device Type
Switch - 52 ports - L3 - smart - stackable
Capacity
IGMP groups: 512, MLD groups: 256, VLAN groups: 4000, Static ARP entries: 256
Authentication Method
Secure Shell v.2 (SSH2), RADIUS, TACACS+
Routing Protocol
IGMP, IGMPv2, IGMPv3, MLD, MLDv2, PIM-DM, PIM-SM, PIM-SSM, static IP routing, OSPF, RIPng, ECMP, RIP-1, RIP-2, policy-based routing (PBR), DVMRP
Remote Management Protocol
SNMP 1, SNMP 2c, SNMP 3, RMON 1, RMON 2, RMON 3, RMON 9
Encryption Algorithm
TLS 1.0, TLS 1.1, TLS 1.2, SSL
Features
ZTP, RSPAN, ERPS, DNA support, VRRP support, MDI, MDI-X, Link Aggregation, STP support, BPDU Filter, Loop Guard, MSTP support, RSTP, Root Guard, flow mirroring, loopback detection, port mirroring, VLAN mirroring, ERPS v2, IGMP snooping, GVRP, Private VLAN, VLAN trunking, Voice VLAN, OSPF, QoS, WDRR, WRED, WRR, CoS, BPDU, DoS, EEE, D-Link DDP, NTP 3, NTP 4, store and forward
Status Indicators
Power, stack, fan, link/activity
Disclaimers
- Product data is provided by CNET, we do not warrant the accuracy and completeness of the material contained in this data sheet
