D-Link DGS 3630-28SC

Name: D-Link DGS 3630-28SC
Brand: D-Link
SKU: DGS-3630-28SC/SI
Price: 1506.81 GBP
Availability: OutOfStock

Manuf P/N: DGS-3630-28SC/SI

APAXON#: 4090330

EAN: 790069425608

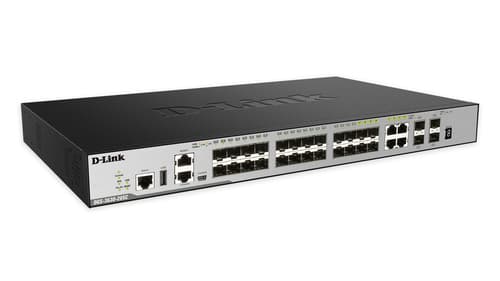

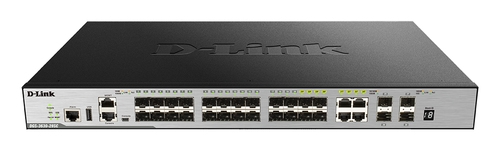

D-Link DGS 3630-28SC
Switch
L3
Managed
20 x Gigabit SFP + 4 x combo 1000Base-T + 4 x 10 Gigabit SFP+
rack-mountable
Weight: 5.28 KG

Managed L3 Web-based management SNMP, NTPv3/v4, Telnet
Quality of Service (QoS) support
Console port: RJ-45/Mini-USB
10G support 10BASE-T, 100BASE-TX, 1000BASE-T
MAC address table: 68000 entries Switching capacity: 128 Gbit/s
High Performance
Gigabit access ports and built-in 10 Gigabit uplinks provide high bandwidth connections for clients, servers, and storage
Flexible Software
Multiple software images provide a flexible approach to software management, allowing only the required features to be installed
High Availability
Up to 9 physical switches can be stacked to create a single virtual switch, providing fault tolerance and increasing network reliability

StockOut of Stock

ConditionNew

Quantity

Notify me when available

Sales & Technical

Phone: 0161 464 9941

Email: sales@apaxon.co.uk

Manufacturer Warranty

Manufacturer warranty applies. Warranty periods and service levels vary by brand and product type.

Apaxon® is an authorised reseller of D-Link. Warranty claims, repairs, replacements, and credits are fulfilled strictly in accordance with the manufacturer's terms and conditions.

Returns Policy

Business & Consumer Purchases

Orders placed for business use, resale, or onward supply are treated as Business-to-Business (B2B) transactions. B2B sales do not carry an automatic right of cancellation.

Nothing in this policy affects statutory consumer rights under UK law.

Consumer Cancellation (B2C Only)

Consumers may cancel within 14 days of delivery under the Consumer Contracts Regulations 2013.
Cancellation must be confirmed in writing within 14 days of delivery.
Goods must be returned within 14 days of cancellation.
Items must be unused beyond reasonable inspection and in resaleable condition.
Return shipping costs are the customer's responsibility.
Prepaid return labels are not provided for change-of-mind returns.
Refunds are processed after inspection and issued to the original payment method.

Faults & Delivery Issues

Transit damage or shortages must be reported within 48 hours of delivery.
Visible defects must be reported within 7 days of delivery.
Hidden faults must be reported within 7 days of discovery.
Returns require prior authorisation and a valid RMA reference.
Failure to report within these timeframes may affect eligibility for return or claim.

Business Returns (B2B)

Business customers do not have an automatic right to return non-faulty goods.

Supply chain authorisation
Restocking fees (typically 15–25%)
Inspection approval
Non-refundable outbound carriage

Return shipping is the responsibility of the buyer unless agreed otherwise.

Non-Returnable Items

Software, licences, activation keys, and digital products
Special-order or non-standard procurement items
Opened consumables
Items not in resaleable condition

Overview

The DGS-3630 Series Layer 3 Stackable Managed Switch is designed for Small Medium Businesses (SMBs), Small Medium Enterprises (SMEs), enterprises, and ISPs. It delivers high-performance, flexibility, fault tolerance, and advanced software features for maximum return on investment. With Gigabit Ethernet SFP, 10 GbE SFP+, security features, and advanced Quality of Service (QoS), the DGS-3630 Series can act as core, distribution or access layer switches. High port densities, switch stacking, and easy management make the DGS-3630 Series suitable for a variety of applications.

Specifications

Management features

Switch type: Managed
Switch layer: L3
Quality of Service (QoS) support: Yes
Web-based management: Yes
Traffic classification: Yes
ARP inspection: Yes
System event log: Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports type: No
Combo SFP ports quantity: 4
SFP module slots quantity: 20
SFP+ module slots quantity: 4
Number of management ports: 1 pc(s)
Console port: RJ-45/Mini-USB
USB 2.0 ports quantity: 1
Power connector: DC-in jack
Number of management ports: 1 pc(s) pc(s)

Design

Number of fans: 2 fan(s) fan(s)
Rack mounting: Yes
Stackable: Yes
Form factor: 1U
Product colour: Black
LED indicators: Yes
Number of fans: 2 fan(s)
Safety: cUL, CB, CE, CCC, BSM
Electromagnetic compatibility: CE, FCC Class A, C-Tick, VCCI, BSMI, CCC

Performance

Noise level: 56 dB dB
Mean time between failures (MTBF): 280612 h h
Virtual stacking (units): 32
Noise level: 56 dB
Mean time between failures (MTBF): 280612 h

Power

Voltage Required: AC 120/230 V (50/60 Hz) V
AC input frequency: 50 - 60 Hz Hz
Power consumption (max): 63.58 W W
Surge protection voltage: 6 kV kV
Power source: AC
Power supply included: Yes
Redundant power supply (RPS) support: Yes
Number of power supply units: 1
AC input frequency: 50 - 60 Hz
Power consumption (max): 63.58 W
Surge protection: Yes
Surge protection voltage: 6 kV

Operational conditions

Heat dissipation: 216.81 BTU/h BTU/h
Operating temperature (T-T): -5 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 95%
Storage relative humidity (H-H): 5 - 95%
Heat dissipation: 216.81 BTU/h
Operating temperature (T-T): -5 - 50 °C °C
Storage temperature (T-T): -40 - 70 °C °C
Operating relative humidity (H-H): 10 - 95% %
Storage relative humidity (H-H): 5 - 95% %

Weight & dimensions

Width: 441 mm mm
Depth: 260 mm mm
Height: 44 mm mm
Weight: 3.79 kg kg
Width: 441 mm
Depth: 260 mm
Height: 44 mm
Weight: 3.79 kg

Technical details

Shipping (inner) case net weight: 13.5 kg kg
Master (outer) cases per pallet (sea): 32 pc(s) pc(s)
Shipping (inner) case height: 45 cm cm
Shipping (inner) case width: 29.6 cm cm
Shipping (inner) case length: 54.9 cm cm
Products per pallet (air): 96 pc(s) pc(s)
Pallet gross length: 110 cm cm
Pallet gross width: 120 cm cm
Shipping (inner) case height: 45 cm
Shipping (inner) case width: 29.6 cm
Shipping (inner) case length: 54.9 cm
Shipping (inner) case net weight: 13.5 kg
Products per shipping (inner) case: 3 pc(s)
Pallet gross weight (air): 553.5 kg
Master (outer) cases per pallet (air): 32 pc(s)
Products per pallet (air): 96 pc(s)
Pallet gross length: 110 cm
Pallet gross width: 120 cm
Pallet height (air): 193.5 cm
Pallet gross weight (sea): 553.5 kg
Master (outer) cases per pallet (sea): 32 pc(s)
Products per pallet (sea): 96 pc(s)
Pallet height (sea): 193.5 cm
Shipping (inner) case gross weight: 16.7 kg
Products per shipping (inner) case: 3 pc(s) pc(s)
Pallet gross weight (air): 553.5 kg kg
Master (outer) cases per pallet (air): 32 pc(s) pc(s)
Pallet height (air): 193.5 cm cm
Pallet gross weight (sea): 553.5 kg kg
Products per pallet (sea): 96 pc(s) pc(s)
Pallet height (sea): 193.5 cm cm
Shipping (inner) case gross weight: 16.7 kg kg

Data transmission

MAC address table: 68000 entries entries
Switching capacity: 128 Gbit/s Gbit/s
Forwarding rate: 95.24 Mpps Mpps
Packet buffer memory: 4 MB MB
MAC address table: 68000 entries
Switching capacity: 128 Gbit/s
Forwarding rate: 95.24 Mpps
Number of queues: 8
Number of IP interfaces: 256
Jumbo frames support: Yes
Jumbo frames: 12000
Packet buffer memory: 4 MB

Multicast features

Multicast MAC address table: 68000 entries entries
Multicast support: Yes
Multicast MAC address table: 68000 entries

Packaging data

Package width: 415 mm mm
Package depth: 528 mm mm
Package height: 91 mm mm
Package weight: 5.29 kg kg
Package width: 415 mm
Package depth: 528 mm
Package height: 91 mm
Package weight: 5.29 kg

Network

Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qbb, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support: Yes
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroring: Yes
Full duplex: Yes
Routing entries: 16000
Flow control support: Yes
Link aggregation: Yes
Broadcast storm control: Yes
Spanning tree protocol: Yes
VLAN support: Yes
Virtual LAN features: Stacked VLAN, Private VLAN, Tagged VLAN, Port-based VLAN
Number of VLANs: 4094

Security

DHCP features: DHCP server, DHCP client
Access Control List (ACL): Yes
IGMP snooping: Yes
Security algorithms: 802.1x RADIUS, SSH, SSH-2, SSL/TLS
MAC address filtering: Yes
SSH/SSL support: Yes
Loop protection: Yes
BPDU filtering/protection: Yes
Authentication: Guest VLAN, Port-based authentication

Protocols

Management protocols: SNMP, NTPv3/v4, Telnet

Power over Ethernet (PoE)

Power over Ethernet (PoE): No

Logistics data

Harmonized System (HS) code: 85176990

General

Enclosure Type: Rack-mountable
Status Indicators: Status
Device Type: Switch - 28 ports - L3 - Managed - stackable
Ports: 20 x Gigabit SFP + 4 x combo 1000Base-T + 4 x 10 Gigabit SFP+
Performance: Switching capacity: 128 Gbps Forwarding performance: 95.24 Mpps Stacking bandwidth: 80 Gbps
Capacity: IPv4 routing table entries: 16000 IPv6 routing table entries: 7000 IPv4 forwarding table entries: 32000 IPv6 forwarding table entries: 16000 VLAN groups: 4000 Dynamic VLAN entries: 4000 Static ARP entries: 512 IPv4 routes (static): 512 IPv6 routes (static): 256 QoS hardware queues per port: 8 ACL entries (egress): 4000 ACL entries (ingress): 1000
Remote Management Protocol: HTTPS, CLI, Telnet, SNMP 1, SNMP 2c, SNMP 3, TFTP, RMON 1, RMON 2, RMON 3, RMON 9
Encryption Algorithm: SSL, TLS 1.0, TLS 1.1, MD5
Authentication Method: Secure Shell v.2 (SSH2), TACACS+, RADIUS
Features: 4MB packet buffer, 2 fans, Head of Line Blocking Prevention, Loop Guard, Link Aggregation, ERPS v2, port mirroring, VLAN mirroring, RSPAN, VLAN Double Tagging (Q-in-Q), VTP, GVRP, MLD snooping, IGMP snooping, PIM snooping, ARP support, Loopback, tunnelling, IGMP filtering, MLD filtering, QoS, SP, WRR queuing, PFC, bandwidth control, IP Precedence, DSCP support, SRTCM, TRTCM, ACL support, ToS, Energy Efficient Ethernet, Port Security, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Safeguard Engine, DHCP server, DAI, IP source guard, DHCP snooping, Duplicated Address Detection, packet filtering, BPDU, DoS attack prevention, AAA, 802.1x authentication, host based access control, WAC, Cable Diagnostics Function, Dying Gasp support, DDM, NTP, PTP, SNMP trap, TFTP client, LLDP support, DHCP client, SRM, sFlow, VRF-Lite, SSM, MIB II
Routing Protocol: MLD, MLDv2, IGMP, IGMPv2, IGMPv3, VRRPv2, VRRPv3, policy-based routing (PBR), Bidirectional Forwarding Detection (BFD), static IPv4 routing, static IPv6 routing, VRRP, RIP-1, RIP-2, RIPng, URPF, BGP-4, BGP-4+, OSPFv2, OSPFv3, DVMRPv3, PIM-DM, PIM-SM, PIM-SSM, MSDP
