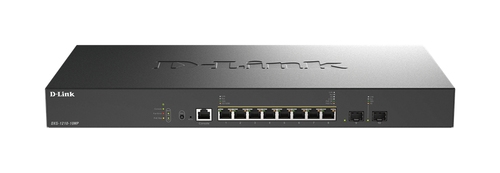

D-Link DXS 1210-10MP

Name: D-Link DXS 1210-10MP
Brand: D-Link
SKU: DXS-1210-10MP/B
Price: 643.7 GBP
Availability: InStock

Manuf P/N: DXS-1210-10MP/B

APAXON#: 11851055

EAN: 790069477140

D-Link DXS 1210-10MP
Switch
Managed
8 x 10GBase-T + 2 x 10 Gigabit SFP+
rack-mountable
PoE++ (370 W)
Weight: 5.14 KG

Free centralised management with Nuclias Connect
100/1000/2.5G/5G/10GBASE-T Multi-Gigabit and SFP+ connectivity
Layer 2 management and security, with Layer 3 Lite features
Industry standard full CLI, web-based GUI, console port
Static Routing and MSTP

UK Stock5

ConditionNew

Price £ 643.70

Price inc. VAT

£ 772.44

Quantity

Notify me when available.

Sales & Technical Enquiries

Phone: 0161 464 9941Email: sales@apaxon.co.uk

Product Summary

The D-Link DXS 1210-10MP is designed to offer robust performance for demanding network environments. With a switching capacity of 200 Gbps and a packet forwarding rate of 148.8 Mpps, this switch ensures efficient data handling and promotes seamless connectivity across devices. It supports a variety of features such as VLANs, IGMP snooping, and Jumbo Frame support, making it an ideal solution for modern networking needs. Operating in extreme temperatures ranging from -5°C to 50°C and with humidity tolerance of 0 to 95% (non-condensing), the D-Link DXS 1210-10MP is well-suited for various environments. The device also features multiple remote management protocols, enabling easy monitoring and configuration. With a total of 8 10GBase-T ports and 2 10 Gigabit SFP+ connections, it offers versatility for connecting different devices while ensuring efficient power delivery through PoE++. This rack-mountable switch is a reliable choice for enhancing network performance and adaptability.

Extended Specification

Network

Policy-based routing

Yes

Flow control support

Yes

Networking standards

IEEE 802.1AX, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3bt

10G support

Yes

Copper ethernet cabling technology

10GBASE-T

Cable types supported

Cat6, Cat6a

Port mirroring

Yes

Link aggregation

Yes

Broadcast storm control

Yes

Rate limiting

Yes

Auto MDI/MDI-X

Yes

Spanning tree protocol

Yes

Ethernet LAN data rates

100,1000,2500,5000,10000 Mbit/s Mbit/s

VLAN support

Yes

Virtual LAN features

Port-based VLAN, Voice VLAN

Number of VLANs

4094

Data transmission

Switching capacity

200 Gbit/s Gbit/s

MAC address table

32000 entries entries

Forwarding rate

148.8 Mpps Mpps

Store-and-forward

Yes

Number of IP interfaces

Jumbo frames support

Yes

Jumbo frames

10000

Security

Loop protection

Yes

IP-MAC-Port binding

Yes

Authentication type

TACACS+

DHCP features

DHCP server

Access Control List (ACL)

Yes

IGMP snooping

Yes

Security algorithms

802.1x RADIUS, PEAP, SNMP, SNMPv2, SNMPv3, SSH, SSL/TLS, TTLS

SSH/SSL support

Yes

Authentication

Auto VLAN

Queue scheduling algorithms

Strict Priority Queue (SPQ), Weighted Round Robin (WRR)

Design

Housing material

Metal

LED indicators

Yes

Redundant fans support

Yes

Number of fans

2 fan(s) fan(s)

Rack mounting

Yes

Stackable

Product colour

Black

Management features

Switch type

Managed

Switch layer

L2+

Quality of Service (QoS) support

Yes

Web-based management

Yes

ARP inspection

Yes

Configuring Location Settings (CLI)

Yes

MIB support

SNMP MIB

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

Basic switching RJ-45 Ethernet ports type

10G Ethernet (100/1000/10000)

SFP+ module slots quantity

Console port

RJ-45

Multicast features

Multicast support

Yes

Protocols

GARP VLAN Registration Protocol (GVRP)

Yes

IPv4 & IPv6 features

ICMPv6

Performance

Noise level

61.4 dB dB

Fanless

Power

Power source

Power supply included

Yes

AC input voltage

100 - 240 V V

Power consumption (max)

453.9 W W

Power over Ethernet (PoE)

Yes

Power over Ethernet (PoE) type supported

PoE++ (4PPoE)

Power over Ethernet 4PPoE (PoE++) ports quantity

Total Power over Ethernet (PoE) budget

370 W W

Operational conditions

Operating temperature (T-T)

-5 - 50 °C °C

Storage temperature (T-T)

-40 - 70 °C °C

Storage relative humidity (H-H)

0 - 95% %

Operating relative humidity (H-H)

0 - 95% %

Weight & dimensions

Width

440 mm mm

Depth

250 mm mm

Height

44 mm mm

Weight

3.7 kg kg

Packaging content

Manual

Yes

Certificates

Compliance certificates

BSMI, CE, Federal Communications Commission (FCC), RCM, VCCI

General

MAC Address Table Size

32K entries

Subtype

10 Gigabit Ethernet

Authentication Method

RADIUS, Extensible Authentication Protocol (EAP)

Enclosure Type

Rack-mountable 1U

Device Type

Switch - 8 ports - Managed

Ports

8 x 10GBase-T + 2 x 10 Gigabit SFP+

Power Over Ethernet (PoE)

PoE++

Routing Protocol

IGMP, IGMPv2, IGMPv3, MLD, MLDv2

Performance

Switching capacity: 200 Gbps Packet forwarding rate: 148.8 Mpps

Capacity

IGMP groups: 384 Virtual interfaces (VLANs): 4000 ARP entries: 768 IPv4 routes (static): 64 IPv6 routes (static): 64 ACL rules: 256 Access lists: 50

Remote Management Protocol

SSH, CLI, Telnet, TFTP, SNMP 1, SNMP 2c, SNMP 3, RMON 1, RMON 2

Encryption Algorithm

SSL, TLS, TLS 1.0, TLS 1.1, TLS 1.2, TTLS, PEAP

Features

Store and forward, IGMP snooping, MLD snooping, LLDP support, STP support, RSTP support, MSTP support, flow control, port mirroring, Jumbo Frames support, loopback detection, ERPS, DSCP support, IPv6 support, WRR queuing, ARP support, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Safeguard Engine, DHCP server, Port Security, MDI/MDI-X switch, SNMP trap, BOOTP support, DHCP client, Syslog support, SNTP support, D-Link Green Technology, 6KV PoE surge protection, 2 fans, Cable Diagnostics Function, DoS attack prevention, Duplicated Address Detection, fast PoE, PD-Alive, perpetual PoE

Status Indicators

Console, fan, link/activity/speed, PoE max, power
