Kensington SD5000T5 EQ - Docking station - Thunderbolt 5 - 3 x Thunderbolt 5 - 1GbE, 2.5GbE

Manuf P/N: K35201EU
APAXON#: 10494340
EAN: 5028252644037
Kensington SD5000T5 EQ - Docking station - Thunderbolt 5 - 3 x Thunderbolt 5 - 1GbE, 2.5GbE
  • Supports up to 4K resolution with 144 Hz refresh rate
  • Delivers up to 140 W of power to attached devices
  • Equipped with three Thunderbolt 5 video interfaces
  • Made from 100% recycled aluminum for sustainability

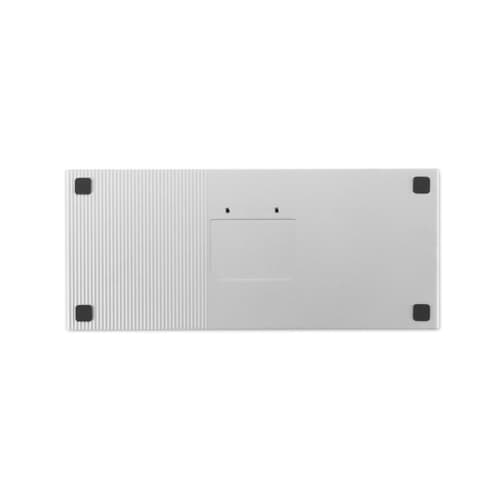

  • Includes zero footprint mounting for space-saving installation
Stock16
Price £275.78
Quantity
|

Product Summary

The Kensington SD5000T5 EQ docking station offers versatile connectivity options, making it an essential solution for modern workspaces. With multiple video interfaces including three Thunderbolt 5 ports and supporting resolutions up to 4K at a refresh rate of 144 Hz, this docking station allows for dual, single, or even triple display setups, enhancing productivity and visual experience. Its ability to deliver up to 140 W of power ensures that devices stay charged while connected, reducing clutter and increasing efficiency. Constructed from 100% recycled aluminum, the SD5000T5 EQ is functional and environmentally conscious. The zero footprint mounting feature allows for seamless integration into any workspace without taking up unnecessary space. With Plug-and-Play compatibility and various data link protocols including Gigabit Ethernet and 2.5 Gigabit Ethernet, this docking station meets diverse connectivity needs, providing a reliable docking solution for users.

Main Specifications

Product Description
Kensington SD5000T5 EQ - docking station - Thunderbolt 5 - 3 x Thunderbolt 5 - 1GbE, 2.5GbE
Product Type
Docking station
Docking Interface
Thunderbolt 5
Video Interfaces
3 x Thunderbolt 5
Dimensions (WxDxH)
22.6 cm x 9.7 cm x 4 cm
Weight
975 g
Networking
Gigabit Ethernet, 2.5 Gigabit Ethernet
Manufacturer Warranty
3-year warranty

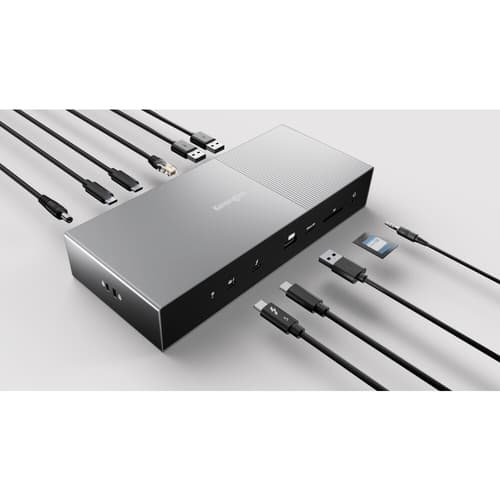

Versatile connectivity options

With several expansion slots including microSD and SD UHS-II memory card support, along with various interface types such as USB-A 3. 2 Gen 2 and USB-C with Power Delivery, this docking station caters to a wide range of devices and accessories.

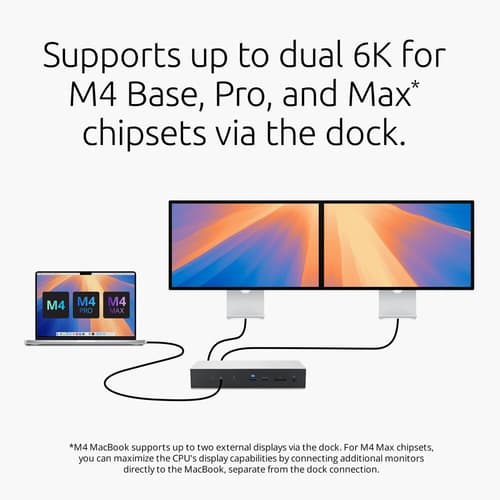

Multiple display capability

The docking station enables dual, single, or triple display functionality thanks to its three Thunderbolt 5 video interfaces, allowing users to create customized workspaces that enhance productivity and multitasking.

Efficient power delivery

Equipped with Power Delivery 3. 1, the docking station can provide up to 140 W of power, ensuring that laptops and other devices necessary for productivity remain charged and readily available.

Eco-friendly design

The use of 100% recycled aluminum contributes to environmental sustainability and provides a durable and elegant finish to the docking station that will fit seamlessly into any setting.

Ease of installation

Featuring a zero footprint mounting design and Plug-and-Play compliance, the docking station simplifies the setup process, allowing users to connect their devices quickly and efficiently.

Extended Specification

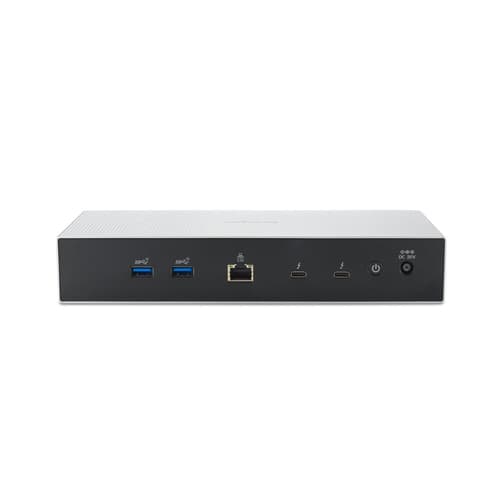

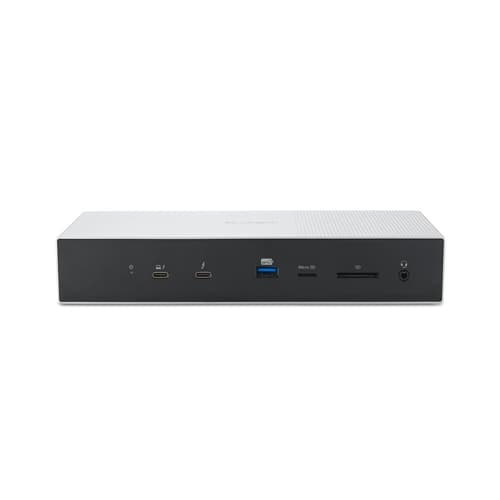

Ports & interfaces
Connectivity technology
Wired
Host interface
Thunderbolt 5
USB 2.0 ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
0
HDMI ports quantity
0
Headphone outputs
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
3
USB Power Delivery (USB PD)
Yes
USB Power Delivery revision
3.1
USB Power Delivery up to
140 W
Thunderbolt 5 ports quantity
3
Combo headphone/mic port
Yes
Headphone connectivity
3.5 mm
DC-in jack
Yes
USB Power Delivery up to
140 W W
Network
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
10,100,1000,2500 Mbit/s
Ethernet LAN data rates
10,100,1000,2500 Mbit/s Mbit/s
Performance
Product colour
Black, Grey
Card reader integrated
Yes
Compatible memory cards
MicroSD (TransFlash), SD
HD type
8K Ultra HD
Maximum digital resolution
7680 x 4320 pixels
Number of displays supported
3
Maximum refresh rate
540 Hz

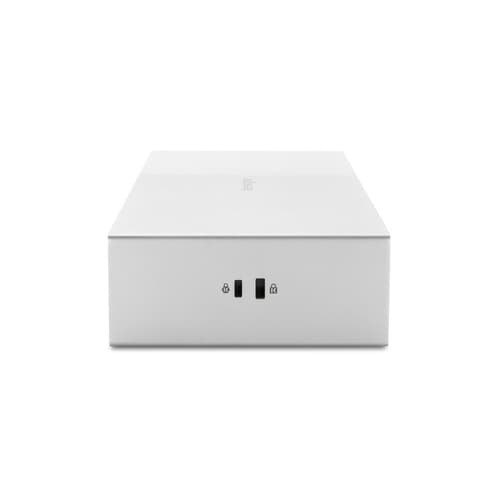

Cable lock slot
Yes
Cable lock slot type
Kensington, Nano
LED indicators
Power
Plug and Play
Yes
Housing material
Acrylonitrile butadiene styrene (ABS), Aluminium, Polycarbonate (PC)
Country of origin
China
Maximum digital resolution
7680 x 4320 pixels pixels
Maximum refresh rate
540 Hz Hz
Power
AC input voltage
100 - 240 V
Input current
2.5 A
Output voltage
20 V
Output current
9 A
AC input voltage
100 - 240 V V
Input current
2.5 A A
Output voltage
20 V V
Output current
9 A A
Software
Windows operating systems supported
Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Mac operating systems supported
Mac OS X 15.0 Sequoia
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-18 - 60 °C
Operating relative humidity (H-H)
0 - 55%
Operating temperature (T-T)
0 - 40 °C °C
Storage temperature (T-T)
-18 - 60 °C °C
Operating relative humidity (H-H)
0 - 55% %
Weight & dimensions
Width
226 mm
Depth
97 mm
Height
40 mm
Weight
975 g
Width
226 mm mm
Depth
97 mm mm
Height
40 mm mm
Weight
975 g g
Packaging data
Quantity per pack
1 pc(s)
Package width
264 mm
Package depth
125 mm
Package height
154 mm
Package weight
1.9 kg
Quantity per pack
1 pc(s) pc(s)
Package width
264 mm mm
Package depth
125 mm mm
Package height
154 mm mm
Package weight
1.9 kg kg
Packaging content
Warranty card
Yes
Cables included
AC, Thunderbolt
AC adapter included
Yes
Quick start guide
Yes
Technical details
Compliance certificates
CB, CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA
Logistics data
Products per master (outer) case
6 pc(s)
Products per master (outer) case
6 pc(s) pc(s)
Other features
Minimum system requirements
CPU: Intel Core HX series 13th /14th+
