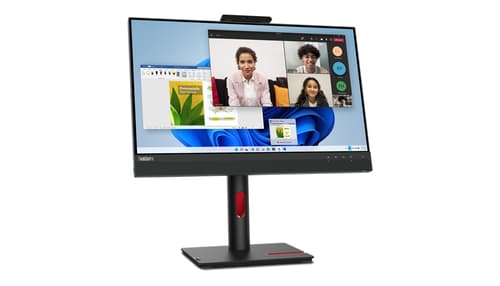

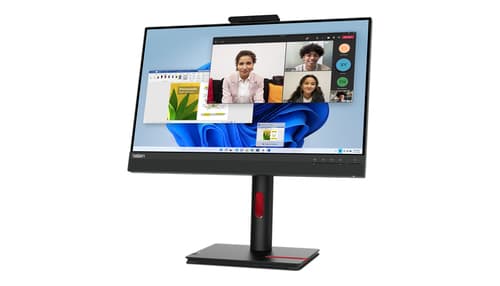

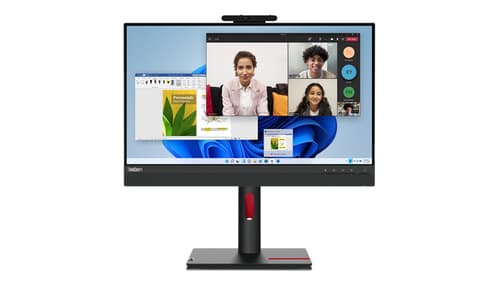

Lenovo ThinkCentre Tiny-in-One 24 Gen 5
Thumbnail 0
Thumbnail 1
Thumbnail 2
Thumbnail 3
Thumbnail 4
Thumbnail 5
Thumbnail 6

Lenovo ThinkCentre Tiny-in-One 24 Gen 5

Manuf P/N: 12NAGAT1UK
APAXON#: 8394060
EAN: 196804349831
Lenovo ThinkCentre Tiny-in-One 24 Gen 5
LED monitor
24" (23.8" viewable)
1920 x 1080 Full HD (1080p) @ 60 Hz
IPS
250 cd/m²
1000:1
4 ms
HDMI, DisplayPort
speakers
raven black
Weight: 8.94 KG
  • Tiny packages that pack a punch
  • Remote meetings at its core
  • Your partner as well as nature's
Stock2000
Price £378.36
Quantity
|

Product Summary

The ThinkCentre Tiny-In-One (TIO) 24 Gen 5 displays visuals and video content with great clarity on the borderless In-Plane Switching FHD panel with 99% sRGB color support. It provides a complete working experience when paired with its VoIP features, a modular design which allows it to be attached with Lenovo's range of high-performance ThinkCentre and ThinkStation Tiny Computers from 4th Gen. These can be effortlessly installed and housed in the dedicated slot at the back of the monitor, giving you a cable-free desk. Enjoy a consistent experience while using the classic installation mechanism quickly and easily mount Tiny PCs to the monitor. Designed for efficient remote collaboration, it has a 1080p RGB webcam with a noise-cancellation microphone for crystal-clear audio and video. Besides that, the Smart Traffic Light indicator indicates the status of an ongoing interaction or meeting, helping you avoid unforeseen distractions. Two integrated 3W user-facing speakers play the audio with amazing fidelity, making attending meetings a much more pleasant experience. Dedicated VoIP buttons allow you to easily mute or change the volume, making your remote meeting experience much more convenient. User-centric features like ThinkShutter allow you to cover your webcam lens for enhanced privacy and security. The monitor's Natural Low Blue Light technology works to reduce the harmful blue light without any color distortion during long working hours. In a nutshell, the TIO 24 Gen 5 helps you get a clean, clutter-free desk, collaborate seamlessly and multitask efficiently to maximize productivity.

Main Specifications

Product Description
Lenovo ThinkCentre Tiny-in-One 24 Gen 5 - LED monitor - Full HD (1080p) - 24"
Device Type
LED-backlit LCD monitor - 24"
Features
KVM Switch, 1080p webcam, USB 3.2 Gen 1 hub
Panel Type
IPS
Aspect Ratio
16:9
Native Resolution
Full HD (1080p) 1920 x 1080 at 60 Hz
Pixel Pitch
0.275 mm
Brightness
250 cd/m²
Contrast Ratio
1000:1 / 3000000:1 (dynamic)
Response Time
4 ms (extreme mode), 6 ms (typical)
Colour Support
16.7 million colours
Colour Gamut
99% sRGB
Input Connectors
HDMI, DisplayPort

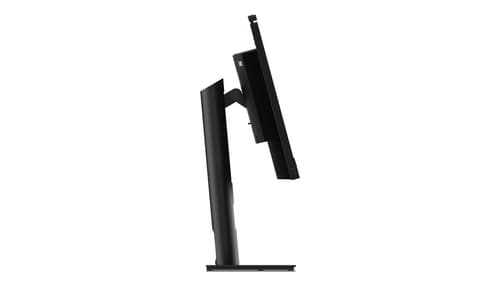

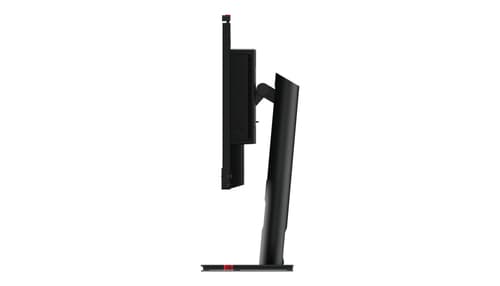

Display Position Adjustments
Height, pivot (rotation), swivel, tilt
Screen Coating
Anti-glare
Voltage
AC 100-240 V (50/60 Hz)
Colour
Raven black
Dimensions (WxDxH) - with stand (highest position)
53.98 cm x 20.76 cm x 53.96 cm
Weight
6 kg
Localisation
English / United Kingdom
Environmental Standards
ENERGY STAR Qualified EPEAT Gold
Compliant Standards
RoHS, TUV Rheinland Eye Comfort Certification, TUV Rheinland Low Blue Light (Hardware Solution), TUV Rheinland Eyesafe 2.0 Display
Manufacturer Warranty
3-year warranty

Associated Documents

APAXON Product Data Sheet - Lenovo ThinkCentre Tiny-in-One 24 Gen 5(12NAGAT1UK).pdf
APAXON Product Data Sheet - Lenovo ThinkCentre Tiny-in-One 24 Gen 5(12NAGAT1UK).pdf
Tiny packages that pack a punch

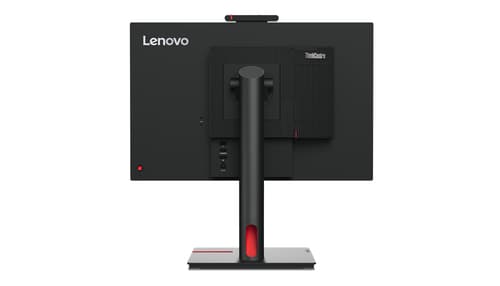

The TIO 24 Gen 5 is a modular device that supports Lenovo's range of ThinkCentre and ThinkStation Tiny Computers from 4th Gen. You can easily and quickly attach the Tiny to the monitor and secure them in a dedicated slot on the monitor's back, offering a clutterfree desk. An unchanged installation process ensures that you have a consistent and smooth experience when attaching Tiny PCs to the monitor. Connect multiple different devices such as laptops, towers, or notebooks using the available HDMI or DP ports. Easily secure both your TIO monitor and Tiny Computer with the Kensington lock for additional security.

Remote meetings at its core

The TIO 24 Gen 5 gives you plug-and-play functionality with Lenovo's Tiny PCs. A 1080p RGB webcam captures you accurately and two built-in 3W speakers help you listen to your colleagues clearly during meetings. Dedicated VoIP buttons make attending your meetings easier than ever. The menu Joystick allows you to tweak your screen's settings easily. A dedicated privacy shutter allows you to cover the camera for privacy once a meeting ends. The Smart Traffic Light indicator shows the status of an ongoing meeting to avoid potential disruptions.

Your partner as well as nature's

Experience clear and sharp detail, and a wide field of view on the monitor's 23. 8-inch FHD In-Plane Switching panel that supports a 99% sRGB color gamut. During long hours of exposure, the Eyesafe 2. 0 certified technology and Natural Low Blue Light technology reduces harmful blue light without any color distortion. The TIO 24 Gen 5 also eases your physical comfort with options to lift and lower its height to match your seating position. The monitor is packaged in recycled paper and comes with the option to select a CO2 offset service, which allows you to do your bit for the environment.

What's in the box

Lenovo ThinkCentre Tiny-in-One 24 Gen 5, Software

Extended Specification

Display
Display diagonal
60.5 cm (23.8") cm
Display resolution
1920 x 1080 pixels pixels
Response time
6 ms ms
Maximum refresh rate
60 Hz Hz
Display brightness (typical)
250 cd/m² cd/m²
Viewing angle, horizontal
178° °
Viewing angle, vertical
178° °
Response time (fast)
4 ms ms
Pixel pitch
0.275 x 0.275 mm mm
Pixel density
93 ppi ppi
Viewable size, horizontal
52.7 cm cm
Viewable size, vertical
29.6 cm cm
Colour depth
8 bit bit
Colour gamut
99% %
sRGB coverage (typical)
99% %
Display diagonal
60.5 cm (23.8")
Display resolution
1920 x 1080 pixels
Native aspect ratio
16:9
Display technology
LED
Touchscreen
No
HD type
Full HD
Panel type
IPS
Response time
6 ms
Screen shape
Flat
Contrast ratio (typical)
1000:1
Maximum refresh rate
60 Hz
Display number of colours
16.7 million colours
Backlight type
W-LED
Display brightness (typical)
250 cd/m²
Anti-glare screen
Yes
Contrast ratio (dynamic)
3000000:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Response time (fast)
4 ms
Pixel pitch
0.275 x 0.275 mm
Pixel density
93 ppi
Viewable size, horizontal
52.7 cm
Viewable size, vertical
29.6 cm
Colour depth
8 bit
Colour gamut standard
sRGB
Colour gamut
99%
sRGB coverage (typical)
99%
Multimedia
RMS rated power
6 W W
Built-in speaker(s)
Yes
Built-in camera
Yes
Number of speakers
2
RMS rated power
6 W
Built-in microphone
Yes
Ergonomics
Panel mounting interface
100 x 100 mm mm
Adjustable height (max)
15.5 cm cm
Pivot angle
-5 - 90° °
Swivel angle range
-45 - 45° °
Tilt angle range
-5 - 23.5° °
VESA mounting
Yes
Cable lock slot
Yes
Height adjustment
Yes
Panel mounting interface
100 x 100 mm
Cable management
Yes
Cable lock slot type
Kensington
Adjustable height (max)
15.5 cm
Pivot
Yes
Pivot angle
-5 - 90°
Swivelling
Yes
Swivel angle range
-45 - 45°
Tilt adjustment
Yes
Tilt angle range
-5 - 23.5°
On Screen Display (OSD)
Yes
Power
Power consumption (typical)
14 W W
Power consumption (standby)
0.5 W W
Power consumption (max)
34 W W
Power consumption (off)
0.5 W W
AC input voltage
100 - 240 V V
AC input frequency
50 - 60 Hz Hz
Power consumption (typical)
14 W
Power consumption (standby)
0.5 W
Power consumption (max)
34 W
Power consumption (off)
0.5 W
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power supply type
External
Weight & dimensions
Width (with stand)
539.8 mm mm
Depth (with stand)
207.6 mm mm
Height (with stand)
539.6 mm mm
Weight (with stand)
6 kg kg
Width (without stand)
539.8 mm mm
Depth (without stand)
72.8 mm mm
Height (without stand)
367.6 mm mm
Weight (without stand)
3.7 kg kg
Bezel width (side)
2 mm mm
Bezel width (top)
2 mm mm
Bezel width (bottom)
4.6 cm cm
Width (with stand)
539.8 mm
Depth (with stand)
207.6 mm
Height (with stand)
539.6 mm
Weight (with stand)
6 kg
Width (without stand)
539.8 mm
Depth (without stand)
72.8 mm
Height (without stand)
367.6 mm
Weight (without stand)
3.7 kg
Bezel width (side)
2 mm
Bezel width (top)
2 mm
Bezel width (bottom)
4.6 cm
Packaging data
Package width
620 mm mm
Package depth
187 mm mm
Package height
420 mm mm
Package weight
9.5 kg kg
Package width
620 mm
Package depth
187 mm
Package height
420 mm
Package weight
9.5 kg
Packaging content
Power cable length
1 m m
Stand included
Yes
Cables included
AC
Power adapter included
Yes
Quick start guide
Yes
Power cable length
1 m
Performance
Low Blue Light technology
Yes
Design
Product colour
Black
Colour name
Raven Black
Detachable stand
Yes
Feet colour
Black, Red
Ports & interfaces
Built-in USB hub
Yes
HDMI
Yes
USB hub version
3.2 Gen 1 (3.1 Gen 1)
USB upstream port type
USB Type-B
Number of upstream ports
1
USB Type-A downstream ports quantity
1
HDMI ports quantity
1
HDMI version
1.4
DisplayPorts quantity
1
DisplayPort version
1.2
Built-in KVM switch
Yes
Other features
Compatible operating systems
Windows 10 Windows 11
Certification
EPEAT Gold Registered EU Energy Label (D-class) ENERGY STAR Certified TCO Certified 9.0 TCO edge 2.0 Volatile Organic Compound Certification RoHS compliant Eyesafe Certified 2.0 TÜV Rheinland Eye Comfort Certification TÜV Rheinland Low Blue Light (Hardware Solution)
Lenovo ThinkCentre Tiny-in-One 24 Gen 5
