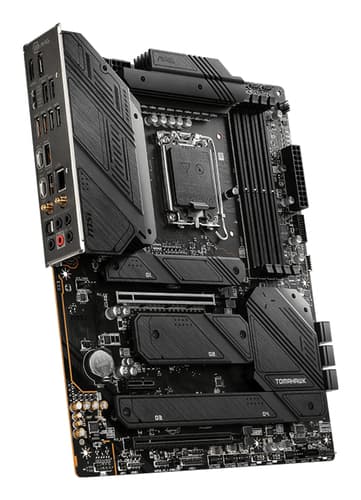

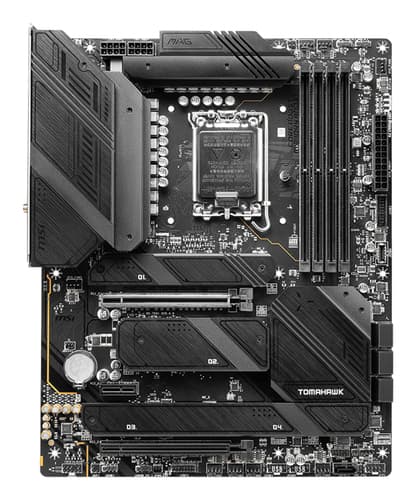

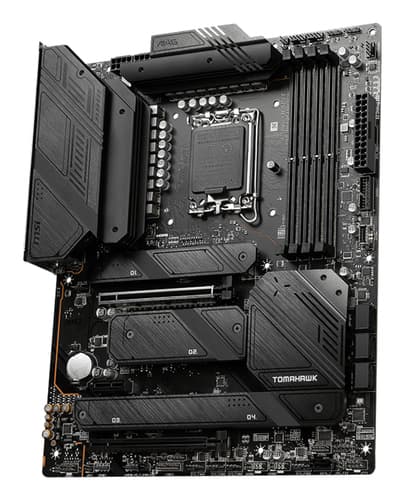

MSI MOBO MBA
- Supports 12th/ 13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR5 Memory, up to 7200+(OC) MHz
- Enhanced Power Design: 16+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
- High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
Similar Products
Overview

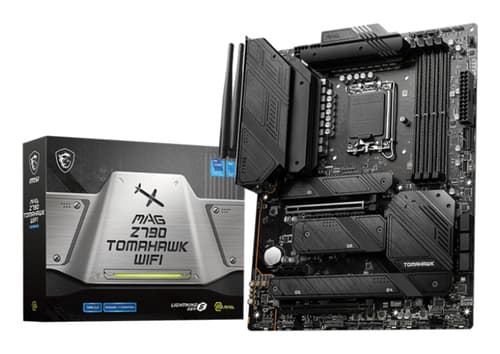

MSI MAG Z790 TOMAHAWK WIFI, Intel, LGA 1700, Intel® Celeron®, Intel® Pentium® Gold, LGA 1700, 192 GB, DDR5-SDRAM
Specifications
Internal I/O
- Number of SATA II connectors
- 0
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 2
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 1
- Number of SATA III connectors
- 7
- Number of SATA connectors
- 0
- Front panel audio connector
- Yes
- Front panel connector
- Yes
- CPU fan connector
- Yes
- Chassis intrusion connector
- Yes
- TPM connector
- Yes
- RGB LED pin header
- Yes
Processor
- Processor manufacturer
- Intel
- Processor socket
- LGA 1700
- Compatible processor series
- Intel® Celeron®, Intel® Pentium® Gold
- Supported processor sockets
- LGA 1700
- Maximum internal memory supported by processor
- 192 GB GB
Memory
- Supported memory types
- DDR5-SDRAM
- Number of memory slots
- 4
- Maximum internal memory
- 192 GB GB
- Memory channels
- Dual-channel
- ECC сompatibility
- Non-ECC
- Supported memory clock speeds
- 4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz MHz
- Supported memory clock speed (max)
- 7200 MHz MHz
- Unbuffered memory
- Yes
Storage controllers
- Supported storage drive interfaces
- M.2, PCI Express
- Supported storage drive types
- HDD & SSD
- RAID support
- Yes
- RAID levels
- 0, 5, 10
Graphics
- Parallel processing technology support
- Not supported

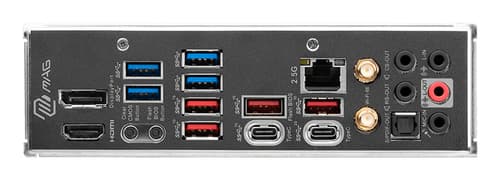

Rear panel I/O ports
- USB 2.0 ports quantity
- 0
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
- 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
- Ethernet LAN (RJ-45) ports
- 1
- VGA (D-Sub) ports quantity
- 0
- HDMI ports quantity
- 1
- USB 3.2 Gen 2x2 Type-C ports quantity
- 1
- HDMI version
- 2.1
- DisplayPorts quantity
- 1
- DisplayPort version
- 1.4
- S/PDIF out port
- Yes
Network
- Wi-Fi
- Yes
- Ethernet LAN
- Yes
- Ethernet interface type
- 2.5 Gigabit Ethernet
- Top Wi-Fi standard
- Wi-Fi 6 (802.11ax)
- Wi-Fi standards
- 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
- Bluetooth
- Yes
- Bluetooth version
- 5.3
Features
- Component for
- PC
- Motherboard form factor
- ATX
- Motherboard chipset family
- Intel
- Motherboard chipset
- Intel Z790
- Audio output channels
- 7.1 channels channels
- Product colour
- Black
- Windows operating systems supported
- Windows 10 x64, Windows 11 x64
Expansion slots
- PCI Express x1 (Gen 4.x) slots
- 1
- PCI Express x16 (Gen 5.x) slots
- 2
- Number of M.2 (M) slots
- 4
BIOS
- BIOS type
- UEFI AMI
- BIOS memory size
- 256 Mbit Mbit
- ACPI version
- 6.4
- System Management BIOS (SMBIOS) version
- 3.5
Weight & dimensions
- Width
- 243.8 mm mm
- Depth
- 304.8 mm mm
Packaging content
- Cables included
- SATA
